Workplace accidents cost businesses billions each year. This includes damages, lost productivity, and legal fees. Proper warning labels with hazard communication could have prevented many of these incidents.
You might manage a manufacturing facility, oversee chemical storage, or keep your team safe around everyday equipment. The right warning labels act as silent safety officers. They protect your people 24/7.
OSHA regulations change. ANSI standards update. GHS compliance requirements shift regularly. So which safety labels does your workplace need?
This guide covers the 15 most common warning label types across industries. You’ll find real-world applications, regulatory requirements, and practical selection criteria. These help you make smart decisions that keep your workplace compliant and your team safe.

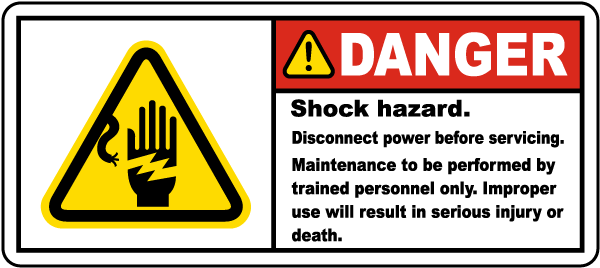

1. Electrical Shock & Arc-Flash Warning Labels
Electrical shock and arc-flash incidents create severe workplace risks. They cause bad burns, cardiac arrest, or widespread power failures. These labels play a huge role. They warn workers about invisible dangers inside electrical panels and transformers. You neeed these warnings on equipment operating above 50 volts.
Visual Identification and Content
You can’t miss the standard design. Look for the yellow triangle with a black lightning bolt. This symbol signals danger fast. The text uses forceful headers like DANGER – ELECTRICAL SHOCK HAZARD. You also get specific safety instructions. Arc-flash risk labels offer more detail. They list the arc flash boundary and incident energy levels. Plus, they specify the flame-resistant clothing or PPE you need for safety.
Compliance Standards
Don’t cut corners here. You must comply with NFPA 70E and OSHA 29 CFR 1910. These rules dictate label looks and placement. Proper labeling supports your lockout-tagout procedures. It keeps untrained staff away from energized components.
2. Crush & Pinch Hazard Warning Labels
Machinery with moving parts poses a threat. Conveyor belts, hydraulic presses, and robotic arms create danger zones. Hands or limbs can get trapped here. Crush and pinch labels alert operators to these mechanical risks. You see them in manufacturing plants and warehouses where heavy equipment runs constantly.
Recognizing the Signs
Effective labels use images to show risk fast. A common symbol shows a hand or fingers caught between two surfaces. The text is direct too. It uses bold warnings like CAUTION – PINCH HAZARD or DANGER – CRUSH RISK. Many labels define restricted zones. They remind workers that unauthorized access is prohibited while the machine runs.
Regulatory Context
OSHA’s Machine Guarding standards (29 CFR 1910) govern these warnings. They work with ANSI Z535 design standards. The goal isn’t just to warn. It pushes you to avoid accidents proactively. Highlight the specific point of danger. This reduces the chance of traumatic injuries.
3. Slip, Trip & Fall Hazard Warning Labels
Slips and falls are frequent causes of workplace injuries. These hazards appear everywhere. You find them on wet floors in retail stores or loose cables on construction sites. Unlike permanent machinery signs, these label stickers address temporary risks from cleaning or spills.
Design and Visibility
High visibility is the priority. These labels use bright yellow or orange backgrounds. This catches the eye in low-light conditions. The symbol depicts a person falling or a “wet floor” graphic. The text gives clear commands like CAUTION – WET FLOOR or WATCH YOUR STEP. Larger facilities might provide directions to route foot traffic around the hazard.
Flexible Application
Many slip hazards are temporary, so the format varies. You might use floor stands, decals, or hanging signs. Pick any format, but stick to ANSI Z535 compliance for consistent messaging. Is the floor dry? Is the debris cleared? Remove the sign to keep warnings meaningful.
4. Forklift Traffic Warning Labels
Warehouses stay busy. Forklifts and pallet jacks zoom around corners. These adhesive labels act as your traffic control system. They alert pedestrians and drivers to each other. Place them in high-risk zones. Think crosswalks, blind corners, and loading bays.
Design and Visibility
Messages must be instant. You see a forklift symbol and bold text. Look for CAUTION – FORKLIFT TRAFFIC or YIELD TO FORKLIFTS. Colors follow OSHA and ANSI standards. They use high-contrast yellow and black. Workers see these even in their peripheral vision.
Behavioral Safety
These labels do more than warn. They enforce rules. Some set speed limits. Others tell walkers to make eye contact with drivers. Physical barriers fall short sometimes. These labels step in to keep movement safe.
5. Burn Hazard & Hot Surface Warning Labels
Industrial ovens, pipes, and welding gear generate intense heat. Hot surfaces often look like cold ones. That creates danger. Burn hazard labels fix this common risk. They warn workers. Touching a surface could cause immediate thermal burns.
Recognizing the Risk
Graphics tell the story. You see a hand over heat waves. Text stays direct. Expect DANGER – HOT SURFACE or CAUTION – BURN HAZARD. Precision environments get specific. A label might say “Surface Exceeds 150°F.”
Material Matters
These labels stick to hot machinery. Standard paper fails here. You need heat-resistant label materials. They don’t curl or turn black. Warnings stay readable as long as the hazard exists.
6. Chemical Hazard Labels (GHS Compliant)
Chemical safety used to be confusing. The Globally Harmonized System (GHS) changed that. You might work in a New York lab or a Tokyo plant. The warnings look the same now. These labels are mandatory. Put them on every hazardous chemical container. This covers cleaning drums to lab reagents.
The Core Elements
GHS labels use six standard elements. First, the signal word. DANGER implies severe risks. WARNING covers less serious ones. Then come the pictograms. You might see a flame for fire risks or a skull for poisons. Visuals break language barriers fast.
Detailed Protection
Labels guide behavior too. Hazard statements explain the risk, like “May cause skin irritation.” Precautionary statements keep you safe. They say things like “Wear protective gloves.” Labels also link to the Safety Data Sheet (SDS). Workers get a clear path to more info.
7. Hazardous Voltage Warning Labels
Standard electrical labels cover basic shocks. Hazardous voltage labels handle bigger threats. We mean high-voltage systems above 600 volts. Think transformers, power lines, and substations. The risk goes beyond a shock. It causes fatal electrocution or an arc blast.
Critical Warnings
These labels scream danger. They show the high-voltage symbol, often a lightning bolt. Text reads DANGER – HAZARDOUS VOLTAGE. They also set boundaries. You might read “Keep 10 Feet Away.” Some warnings restrict entry to qualified electricians.
Strict Compliance
Errors cost too much here. You must follow NFPA 70 and OSHA standards. No negotiations. Hazardous Voltage warning labels often live outdoors on utility gear. They need weather resistance. They survive rain, sun, and snow without fading.
8. Laser Hazard Warning Labels
Lasers present a unique threat. Damage happens faster than a blink. Medical facilities, labs, and plants use laser cutters. These labels are essential there. They stop retinal burns and skin damage. They even prevent fire risks from high-power beams.
Classifying the Risk
Not all lasers act the same. Labels classify equipment from Class I to Class IV. Class IV brings the most danger. Labels show a sunburst symbol and text like CLASS IV LASER – DANGER. Operators know the precise precaution level needed.
Restricting Access
Control the environment. That serves as the goal. Labels tell staff to AVOID DIRECT EYE EXPOSURE. Or they demand specific safety glasses. Follow ANSI Z136 standards. These warnings stop people from walking into invisible, high-power beams.

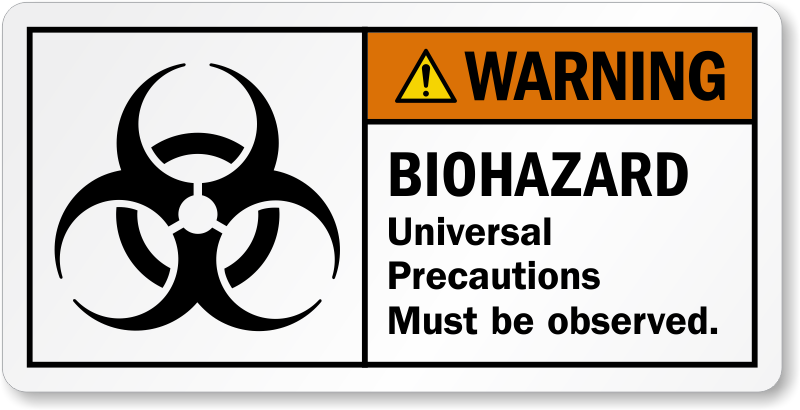

9. Biohazard Warning Labels
Biohazards are threats you cannot see until it is too late. These labels address risks from biological agents like blood, bodily fluids, and pathogens. Their job is clear. Alert healthcare workers, lab techs, and waste handlers to infecton risks. You will find them everywhere from hospital clinics to research labs.
Key Content Features
The internationally recognized biohazard symbol—that distinct red circle with three overlapping triangles—is non-negotiable. It typically sits on a bright orange-red background with bold BIOHAZARD text. Labels might specify the hazard type or give handling instructions. Compliance with OSHA’s Bloodborne Pathogens Standard ensures everyone handles these containers with extreme caution.

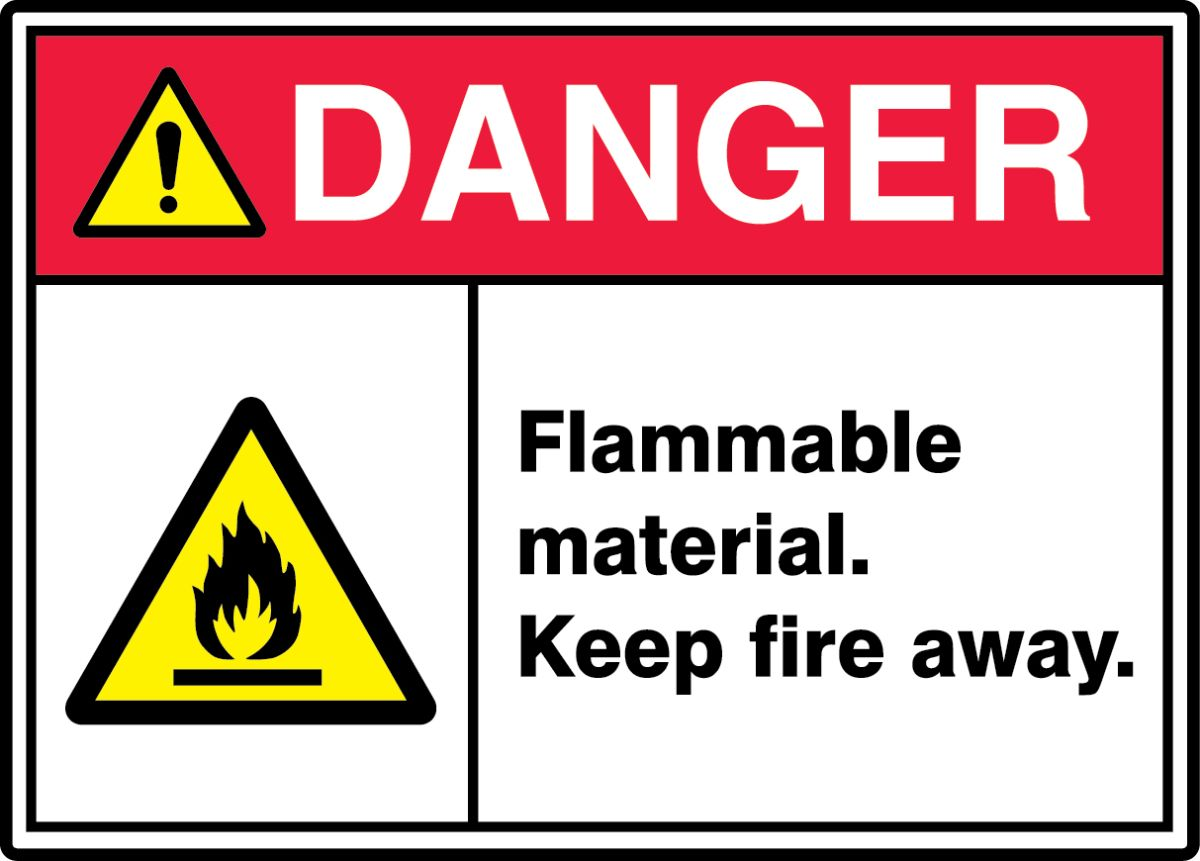

10. Flammable Materials Warning Labels
Gasoline, ethanol, propane—if it can catch fire, it needs a label. Flammable Materials warning Labels apply to any container holding combustible liquids, gases, or solids. They have one main purpose. Warn handlers that a single spark could spell disaster. These are standard in warehouses, chemical plants, and even commercial kitchens.
Critical Design Elements
Under GHS standards, look for the flame pictogram. The signal word DANGER usually goes with statements like “Extremely Flammable Liquid.” You also get vital advice, such as “Keep Away From Open Flames.” Most importantly, these labels often include the flash point. This tells safety managers exactly how to store the material.

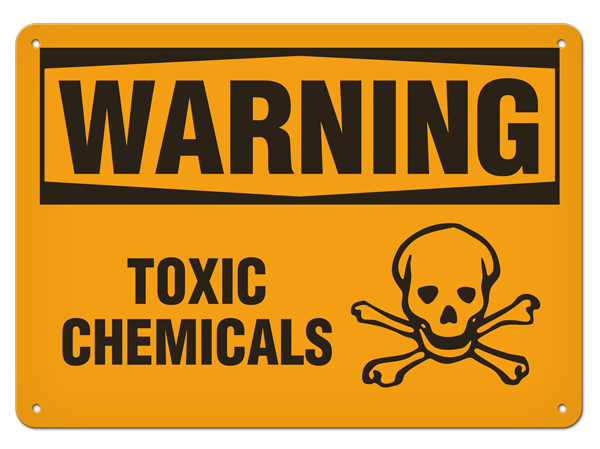

11. Toxic & Corrosive Substance Labels
Some substances do more than burn; they poison or destroy. Toxic and corrosive labels show risks from dangerous chemicals like strong acids, bases, and pesticides. They serve as the main warning system for anyone who might inhale, ingest, or touch these materials in labs or plants.
Visualizing the Danger
GHS rules require specific pictograms here. You will see the skull and crossbones for acute toxicity. Or look for the corrosive symbol—a test tube pouring liquid onto a hand and metal. Text is stark: DANGER – TOXIC IF INHALED or CORROSIVE TO SKIN. These labels also point workers to the Safety Data Sheet (SDS) for emergency steps, like rinsing instructions.
12. Moving Parts & Machinery Labels
Even with guards, moving machinery stays dangerous. Motors, belts, gears, and saws pose risks of entanglement or cuts. Moving Parts Labels act as a final reminder: do not reach in.
Safety Reinforcement
Visuals usually show rotating gears or a hand near a pinch point. The text is loud and clear: DANGER – MOVING PARTS or CAUTION – ENTANGLEMENT HAZARD. Beyond warning, these labels reinforce behavior. They remind operators to keep guards in place. They often mandate lockout-tagout procedures during maintenance. They work as a constant visual check alongside physical barriers.
13. Fragile & Handling Warning Labels
Fragile and handling labels serve a vital role in logistics by protecting delicate inventory like glassware, precision electronics, and medical equipment. Unlike safety hazards that threaten people, these warnings primarily protect the products themselves. They act as a visual command to shippers and warehouse staff, signaling that the package requires a gentle touch.
Key Design Elements:
Most industry-standard labels rely on high-contrast designs to ensure visibility against cardboard packaging. You will typically see:
- Universal Symbols: The cracked wine glass graphic is the most recognized icon globally, transcending language barriers.
- Clear Instructions: Bold text commands such as “HANDLE WITH CARE,” “DO NOT DROP,” or “THIS SIDE UP” provide specific handling guidance.
- High Visibility Colors: Bright red or fluorescent orange backgrounds catch the eye immediately in busy shipping environments.
While agencies like OSHA strictly regulate safety hazards, fragility labeling often falls under voluntary industry standards like ISO 15874. However, following these conventions is crucial. Proper labeling reduces insurance claims, decreases product loss during transit, and protects your bottom line.
14. No Smoking & Fire Prevention Labels
Fire prevention labels are your first defense in high-risk zones. You see them near flammable or explosive materials. Think gas stations, refineries, and chemical plants. They stop ignition sources by banning smoking and open flames. Public spaces like hospitals, airports, and schools use them too. This keeps areas smoke-free and safe.
Visual Standards
Make the design clear from a distance. Most labels use the standard “No Smoking” symbol—a red circle with a slash. Keep text bold. Use phrases like “NO SMOKING – FIRE HAZARD” or “NO OPEN FLAMES.” Leave no doubt. High-security areas often add enforcement warnings. This shows that breaking rules brings strict penalties.
Placement and Compliance
You need high contrast for visibility. Red and white colors stand out against industrial backgrounds. Place your signs carefully. Mount them at all entries and near fuel tanks. Put them on containers with flammable liquids. Follow local fire codes and OSHA rules. This avoids fines. Plus, it stops fires before they start.
15. General Danger & Multipurpose Warning Labels
Facilities face many hazards. Buying separate labels for each gets pricey. General danger and multipurpose warning labels are the fix. Workers know these standard formats instantly. They make risks clear.
These labels follow the GHS framework. They work everywhere—from warehouses to chemical plants. OSHA 1910.145 and ANSI Z535 set the rules. Compliance keeps you legal. Smart design keeps workers safe.
Signal Word Hierarchy and Colors
Pick the right signal word for the risk. Each level uses a color code. Workers know these on sight:
- DANGER: For the worst hazards. These situations cause death or serious injury. You get white text on a bright red background.
- WARNING: For risks of death or serious injury, but less immediate. Look for black text on an orange background.
- CAUTION: A heads-up for minor hazards. These feature black text on a yellow background. They alert the crew to unsafe practices.
Standard Pictograms
GHS symbols sit in red diamonds to show the threat. The flame marks flammables. The skull warns of poisons. You might see the exploding bomb for reactive materials. Or the “health hazard” shape for long-term risks like carcinogens. Environmental hazards use the dead fish and tree symbol. Use every pictogram that applies to your zone. Place them to avoid overlap or clutter.
Conclusion: Don’t Leave Safety to Chance
Safety and warning labels act as silent guardians. They communicate critical hazards when no one is there to warn workers. These 15 types of workplace safety signage protect against electrical shocks and chemical exposures. They form the backbone of effective hazard communication in any facility.
The right label in the right place can save lives. You’re managing a manufacturing floor, chemical storage facility, or warehouse? Your cautionary labeling must meet ANSI safety standards and OSHA requirements. This isn’t just about compliance. It’s about protecting your people—your most valuable asset.
But let’s be real. Generic labels often fail. They peel in the heat. They fade in the sun. Sometimes, they just don’t fit your equipment. That’s where CNNBox comes in. We don’t just print stickers; we build safety solutions. Need a custom size for a specific machine? We can do that. Need materials that survive chemical spills or outdoor weather? We have those too. Our team knows the rules inside and out, so you don’t have to stress about inspections.
Don’t wait for an incident to show you the gaps in your safety communication. Contact CNNBox today. Let’s get your facility compliant and your team safe.
