3 Ply Vs 5 Ply Corrugated Boxes: Which Is Better?

Choosing between 3 ply and 5 ply corrugated boxes goes beyond layers. It’s about protecting your products and controlling costs at the same time. Businesses lose thousands each year. Damaged goods pile up. Packaging budgets get wasted. Why? They picked the wrong box strength.

This comparison shows you how corrugated board construction works. You’ll see how it affects burst strength, stacking capacity, and shipping performance. You’ll find specific scenarios where each box type works best. We include side-by-side durability test results. You’ll learn to match your product weight and shipping distance to the right packaging.

By the end, you get a clear decision framework. No more guesswork. You’ll select boxes that balance protection, cost, and sustainability. This saves you money and headaches in your supply chain.

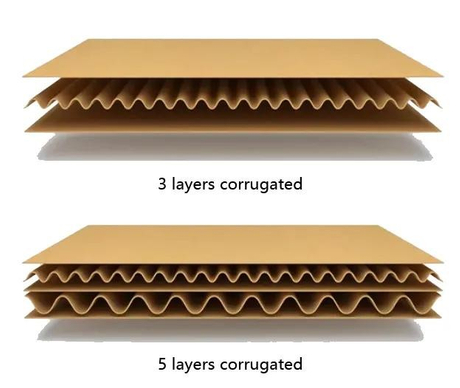

3 Ply Corrugated Boxes: Structure and Specifications

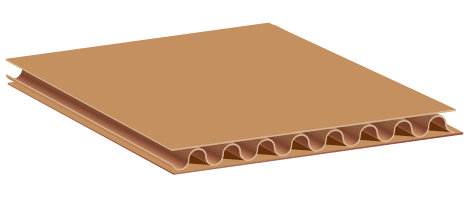

A 3 ply corrugated box has three layers that work together. Two flat kraft paper liners sandwich one fluted corrugated medium between them. This single wall construction protects products up to 10 kilograms.

Core Construction Components

The outer liner forms your box’s visible surface. It gives you branding space and protects against the elements. The inner liner touches your product and cushions it during handling.

Between these liners sits the corrugated flute. This wavy layer creates air columns that absorb shock. It spreads weight across the box structure.

Standard Dimensions and Load Capacities

3 ply boxes serve different packaging needs across many industries:

Compact sizes (3×3×10 to 8×6×6 inches) handle 2-5 kg loads. These work great for gifts, crafts, food items, and small electronics.

Medium formats (9×7.5×4.5 to 13×2.5×13 inches) fit 5-10 kg products. Apparel brands use these dimensions. So do healthcare suppliers and office product distributors.

Larger options (14×1.25×20 to 19×10×12 inches) support specialized shipping needs. Textile manufacturers use these sizes often. Industrial logistics companies do too.

A typical 12×1.25×18 inch box weighs just 120-294 grams empty. This light weight cuts shipping costs while keeping the structure strong.

Structural Performance Features

Edge reinforcement is a key design element. Reinforced corners and edges stop crushing during stacking and rough handling.

The corrugated board construction resists impact well. Multiple protective layers shield contents from drops. They also protect against vibrations and compression forces common in transit.

Moisture barriers come standard in most 3 ply specifications. These coatings stop water damage during storage and transport.

Configuration and Customization Options

Three primary style formats lead the market:

Regular Slotted Container (RSC) offers the most economical design. Flaps meet at the center. You seal them with standard tape.

Die-cut custom boxes give you precise size control. Complex product shapes need these custom solutions.

Rectangular and square formats fit standard warehouse storage systems with ease.

Lightweight printing lets you add full-color branding without weakening the box. Your logo, handling instructions, and product information fit right into the corrugated cardboard layers.

5 Layer Corrugated Boxes: Structure and Specifications

Double wall construction is built for heavy-duty work. With five distinct cardboard layers, these boxes handle 12-40 kilograms of cargo comfortably. When preventing product damage is your main goal, this is the structure you rely on.

Core Construction Components

Think of this as a reinforced sandwich. The design uses a proven stacking method to maximize stiffness. Two heavy-duty outer liners (typically 220 GSM each) form a protective shell. Hidden inside, three inner layers (around 150 GSM each) provide the cushioning.

Between these flat liners sit two distinct layers of corrugated flutes. Often using a “B+C” or “C+C” profile, these dual air columns do the heavy lifting. One layer might absorb shock while the other resists crushing.

Standard Dimensions and Load Capacities

5 ply boxes are engineered for specific heavy-load scenarios across industries:

Industrial Parts (e.g., 18×12×6 inches) are designed for dense items. Metal components, machine parts, and tools fit here. The compact size keeps heavy items from shifting.

High-Value Electronics (e.g., 17.25×11.25×11.5 inches) offer deeper protection. This format is standard for servers, desktop computers, and monitors where impact protection matters more than pure weight capacity.

Large Volume Shipments (e.g., 18.5×10.4×19.3 inches) handle bulkier goods. Textile exports and bulk dry goods use these larger dimensions.

Internal size tolerances are kept tight, usually within ±5 millimeters. This precision is necessary because these boxes are often palletized and need to stack perfectly in shipping containers.

Structural Performance Features

Reinforced stitching sets these boxes apart. Heavy-duty boxes often use flat metal staples that resist rust. Angular stitching patterns are applied at the seams to prevent the box from bursting open under internal pressure.

Flap Durability is also tested rigorously. Flaps are engineered to bend 180 degrees without cracking the liner—crucial for boxes that might be opened and resealed for inspection.

Configuration and Customization Options

Just because they are tough doesn’t mean they can’t look good. The 5-ply structure offers specific customization benefits:

Heavy Duty RSC (Regular Slotted Container) is the standard configuration. The flaps meet perfectly at the center with zero overhang, creating a flat surface that improves stacking stability.

Precision Printing works surprisingly well on double wall board. The thicker surface supports 3 to 6 color flexo printing. You can apply crisp branding, barcodes, and handling icons without “washboarding” (where egg-crate texture shows through the ink).

Finishing touches like moisture-resistant coatings can be added for ocean freight, protecting the kraft paper from the high humidity inside shipping containers.

Strength and Durability Performance Comparison

Lab data reveals exactly where single wall boxes hit their limit and where double wall structures take over. Instead of textbook definitions, here is the head-to-head performance breakdown that matters to your supply chain.

Burst Strength

3-Ply: Delivers 125-200 PSI (8.8-14.1 kg/cm²). These boxes handle standard courier sorting but remain vulnerable to sharp conveyor corners or impacts from heavier packages.

5-Ply: Starts at 200 PSI and premium grades easily exceed 275 PSI (19.3 kg/cm²). The five-layer redundancy creates a “safety net”—even if the outer layer is pierced by a sharp object, the inner structural layers often remain intact, keeping the product clean and safe.

Edge Crush Test

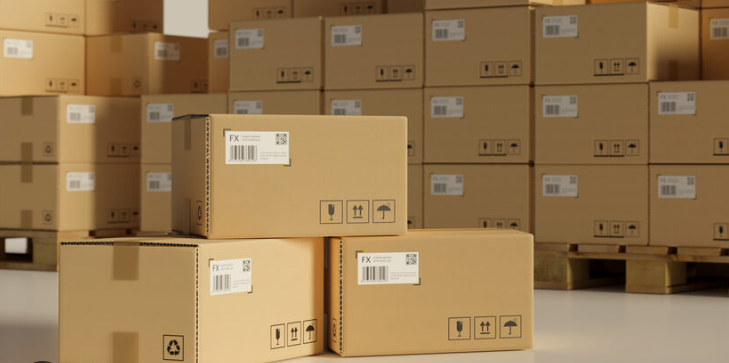

When stacking inventory, vertical strength is everything. A standard 32 ECT 3 ply box supports roughly 600-800 lbs of top-load weight. In contrast, a 60 ECT 5 ply box more than doubles this capacity to 1,200-1,500 lbs.

The Humidity Factor: This is often overlooked. In humid warehouses (>70% RH), 3 ply boxes lose about 30% of their stacking strength rather quickly. 5 ply boxes are far more resilient, retaining 85-90% of their structural integrity under the same damp conditions.

Compression Resistance Over Time

Boxes get tired. Under constant weight, cardboard fibers slowly give way—a phenomenon known as “creep.”

3-Ply Limit: Safe for short-term storage (under 30 days). Beyond this, or if loaded above 70% capacity, side walls will begin to bulge.

5-Ply Stamina: Engineered for the long haul. The dual flute structure resists fatigue for 60-90 days, even sustaining loads at 85% of their maximum rating without buckling.

Impact and Drop Tolerance

We measure this by safe drop heights—the maximum fall a package can take before impact energy damages the product.

Single wall boxes generally protect contents from drops of 18 to 24 inches. This covers most manual handling slips. Double wall boxes push this protection zone to 36 to 48 inches. For express shipping networks, where a package might slide off a high-speed sorter or be tossed into a van, this extra cushion is essentially your insurance policy.

Puncture Force

How much force does it take to poke a hole through the wall? 3 ply barriers typically fail at 8-12 lbs of point force. 5 ply structures require 18-30 lbs to penetrate. This ~125% increase is critical for preventing damage from forklift tines, pallet splinters, or tight metal strapping bands.

Cost Analysis: Material, Shipping, and Damage Prevention

Smart packaging needs balance. You must weigh three factors: material price, shipping fees, and product loss. This balance drives your total spend.

1. Material Cost Breakdown

Raw materials take up 55-65% of the manufacturing cost for single wall boxes. Double wall versions need 60-70% more material. Check this comparison for a standard 12×12×12 inch box:

Pro Tip: Buy in bulk to lower costs. Orders of 10,000+ units cut single wall prices by 15-25%. Double wall boxes drop by 20-30%. Find suppliers with free bulk shipping. This saves another 8-12% on unit costs.

2. Shipping Weight Impact on Transportation

A standard 3-layer box (12×12×12 inches) weighs 280-350 grams empty. Add 5 kg of product plus protective filler. Your shipment totals 5.5-5.6 kg. The same 5-layer box weighs 520-680 grams empty. Same contents bring total weight to 5.7-5.9 kg.

Box weight hits freight charges hard. A 200-400 gram difference adds up fast. See the extra cost for the heavier 5-layer box compared to the 3-layer option:

Ship 5,000 units a month. Single wall boxes save you $750 – $1,750 in freight. Selling light products under 8 kg? These savings often beat the lower material costs.

3. Damage Prevention ROI

Here lies the “hidden” cost. 5-layer boxes cost more upfront. But they stop damage. You save huge amounts on returns and claims.

The ROI Calculation

Let’s do the math. Ship an $80 electronic item in a 3-layer box with a 4% damage rate. You lose $3.20 per shipment in replacements. Use a 5-layer box. Damage drops to 1.2%. Claims cost just $0.96.

The Result: You save $2.24 per box on damage prevention. This covers the $0.75-$1.25 cost of the stronger box. Plus, you save customer service time. Your operational savings grow.

Hidden Costs: Waste and Storage

• Production Waste: Single wall production has lower scrap rates (3-4%) than double wall (5-7%). This affects final pricing slightly.

• Warehouse Space: Single wall boxes stack tighter. You need 30% less space. But remember: replacing damaged goods costs three times more than these storage savings.

3 Ply vs 5 Ply: Find the Right Fit

Your product type, shipping route, and budget decide the best box. Don’t just look at raw numbers. Think about the journey your package takes. You want a balance of protection and smart cost control.

Best Uses for 3 Layer Boxes

E-commerce and Fashion Retail

Do you sell clothes, books, or cosmetics online? The 3-ply box acts as the industry workhorse. These products aren’t fragile. A dropped sweater won’t shatter. The branded box works as a dust cover and helps your branding. It gives enough structure for the final delivery van ride. You skip paying for heavy armor you don’t need.

Short-Haul Regional Distribution

Your goods might stay in one region. They move from a local warehouse to a store shelf. Damage risk is low here. Packages don’t change hands often. They don’t sit in cargo holds for weeks. Single wall boxes handle these simple routes well.

Shelf-Ready Food and Beverages

Canned goods and boxed pasta have their own strength. Pack them tight. The products support the box’s weight. Here, the cardboard acts like a wrapper, not a shield. It keeps the unit together on a pallet. The contents resist the crushing force.

Marketing Kits and Promo Sets

Visual appeal often matters more than strength. Single wall boxes win here. Thinner boards have smoother surfaces. This improves print quality. Sending media kits to clients? You get a sharp, clean look for your graphics. Plus, you catch a break on postage costs.

When You Need 5 Layer Boxes

Heavy Industrial Components

Dense items like metal valves or tools are tough. They can punch through standard cardboard from the inside. Weight isn’t the only issue. You need containment. The double-wall structure of a 5-ply box stops hard, sharp objects from piercing the walls. This helps when a forklift moves the pallet.

International Ocean Freight

Ocean shipping brings a silent threat: moisture. Sea containers get humid. Dampness makes cardboard soft. A single wall letter can collapse under weight after weeks at sea. 5-ply shipping boxes give you backup strength. The outer layer might get damp, but the inner core stays rigid. Your pallet stacks stay upright untill they reach the port.

High-Stakes Electronics

Shipping laptops or servers? Damage costs more than just the replacement price. You lose trust. These items need cushioning. The 5-ply box has two layers of fluting. This creates a deep “crumple zone.” It soaks up energy from drops. The shock stops before it hits the delicate parts inside.

Long-Term Warehouse Storage

You might stock inventory for next season. Boxes sit at the bottom of a stack for months. Gravity creates pressure over time. Standard boxes get tired and bulge. Double wall boxes resist this lean. They keep their square shape. You avoid dangerous leaning towers in the warehouse.

Your product type, shipping route, and budget decide which corrugated box works best. The right pick protects your goods and keeps packaging costs low.

Conclusion: Make the Right Decision in 3 Steps

We’ve covered a lot of specs, but you don’t need a degree in packaging engineering to pick the right box. It really comes down to three honest questions about your business.

Before you place your next order, ask yourself these three things:

1. If my product falls off a waist-high conveyor belt, will it break?

If the answer is “Yes,” don’t risk it—go with the 5-ply (Double Wall). The cost of one refund plus the loss of customer trust is far higher than the few extra cents for a better box. If your product is soft (like clothing) or durable (like canned food), 3-ply (Single Wall) is your smart, budget-friendly winner.

2. Is this package going across town, or across the ocean?

Distance brings danger. Local deliveries are predictable. Ocean freight brings crushing weight and humidity that turns single-wall cardboard into mush. Matches your box to the miles it travels. Short trips need simple protection; long hauls need structural stamina.

3. Will these boxes sit in a warehouse for more than 30 days?

Time is an enemy to cardboard. Single wall boxes get tired and bulge under weight after a few weeks. If you are stockpiling inventory for the holidays, 5-ply is your insurance policy against collapsing stacks and crushed goods.
