Introduction
When engineers need a bond that outlasts the product itself, they turn to 3M. At CNNBox, we build our reputation on this very foundation. As a premier supplier and converter, we utilize genuine 3M double sided tape materials to deliver precision double-sided tape solutions that drive modern manufacturing.
3M double sided tapes—ranging from the legendary VHB™ to ultra-thin transfer tapes—offer the flexibility to replace screws, rivets, and welds. But raw material is only half the equation. CNNBox combines these high-performance substrates with our advanced conversion capabilities. Whether you need custom die-cut shapes for electronics or heavy-duty rolls for construction, we ensure the 3M technology fits your specific assembly line perfectly.
With thousands of 3M product codes available, finding the right match can be overwhelming. We created this guide to help you navigate the options, leveraging our expertise as a trusted supplier to ensure you pick the perfect tape for your application.
3M double-sided tape has adhesive on both sides. It uses substrates like paper, film, tissue, or foam. This design gives you great flexibility. You can create secure bonds that stay hidden in many applications.
Types of 3M Double-Sided Tape
3M makes many types of double sided tapes. Each type works for different jobs, materials, and needs. Here’s a breakdown of the main types, their features, technical specs, and common uses.

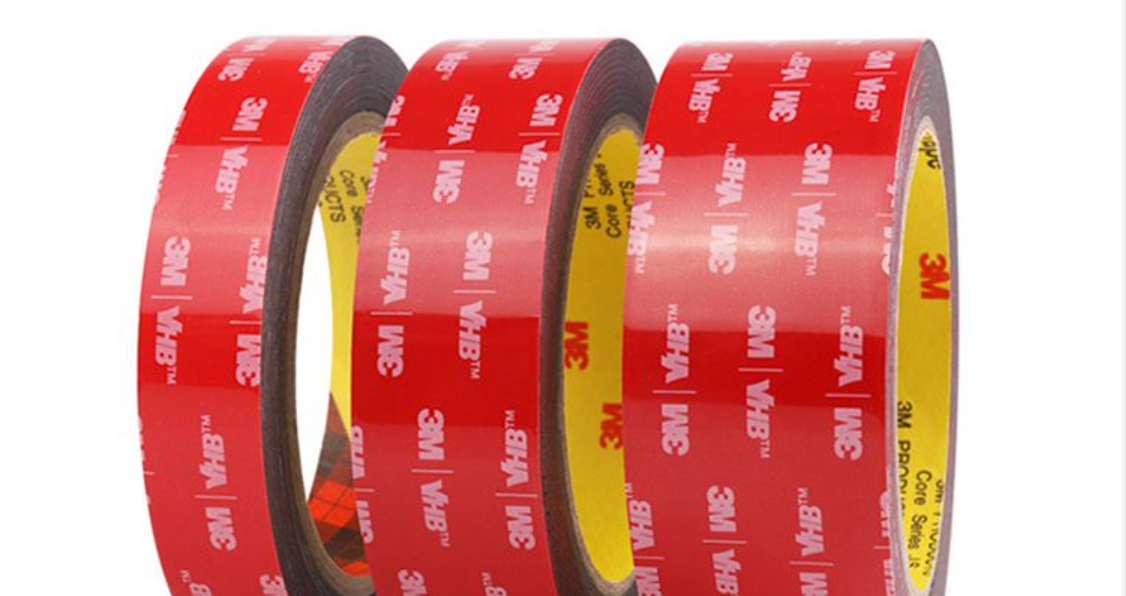

3M™ VHB™ (Very High Bond) Tapes
Performance Highlights: These tapes deliver strong, lasting bonds. They use advanced acrylic adhesives that stretch and flex. I recommend them for replacing screws and rivets.
Thickness Range: 0.4–3 mm (0.015″–0.120″)
Temperature Resistance: Up to 150°C
Top Models: 3M 4905, 4910 (clear), 4956, 5952 (black)
Example Application: Works great for structural glazing, automotive panels, exterior signs, and electronic displays. These tapes can hold more than 100 lbs/inch in shear strength.
Expert Opinion: I think 3M VHB is the best choice for tough jobs that need both strength and reliability, such as outdoor architectural bonding.
3M™ Foam Double-Sided Tapes
Key Features: The flexible foam core fits uneven surfaces well. It fills gaps and adds cushioning. It also absorbs shock and reduces vibration.
Typical Thickness: 0.8 mm to 6 mm
Material Options: Acrylic, urethane, or vinyl foam cores
Model Examples: 3M 4032 Double Coated Urethane Foam Tape, 3M 4516 Vinyl Foam Tape
Applications: Perfect for mounting signs, mirrors, nameplates, and bonding automotive trim. Foam tapes grip both smooth and textured surfaces well.
Performance Note: These tapes are critical in electronics where vibration can shorten component life.
3M™ Double-Coated Tapes
Features: Adhesive covers both sides of a carrier (tissue, film, paper). This design offers uniform thickness and works for many uses.
Thickness: 0.09–0.35 mm
Best Sellers: 3M 415 (tissue), 410M (paper), 9473 (film)
Example Use: Great for electronics work, display mounting, printing, and commercial packaging. The 3M 415 variant works well for jobs with temperature changes.
3M™ Adhesive Transfer Tapes
Characteristics: These are very thin tapes made just of adhesive, with no carrier. They allow for clean, flexible, and exact placement.
Thickness: 0.025–0.25 mm
Models: 3M 465, 950, 9472LE (great for low surface energy plastics)
Temperature Range: -40°C to 150°C
Application Areas: Works for graphic overlays, bonding nameplates, film and paper splicing, and lightweight bonding. Many people use 3M 465 for graphic attachment.
3M™ Removable and Repositionable Double-Sided Tapes
Key Advantage: These tapes remove cleanly and can be repositioned several times. I suggest them for temporary bonds.
Popular Products: 3M 9415PC (single liner removable), 3M 9425 (double removable)
Best Uses: Temporary signage, protecting sensitive surfaces during production, mounting point-of-sale materials, and display samples.
Specialty 3M Double-Sided Tapes
Types & Attributes:
- Protective Tapes: Protects surfaces during processing or shipping.
- Polyester Tapes: Resists chemicals and offers high strength. Perfect for joining films.
- Tissue Tapes: Lightweight and hand-tearable, with strong acrylic adhesives for print finishing (e.g., 3M 9448A).
Technical Note: For example, 3M 9448A has 0.15 mm thickness and 150°C temperature resistance.
Comparison Table: Common 3M Double-Sided Tape Types
| Tape Type | Key Properties | Thickness Range | Example Models | Major Applications |
|---|---|---|---|---|
| VHB | Extreme strength, weatherproof | 0.4–3 mm | 4910, 4956, 5952 | Structural, signage, automotive |
| Foam | Fills gaps, cushions & adapts | 0.8–6 mm | 4032, 4516 | Mounting, vibration damping |
| Double-Coated | Thin, even layer, precise bond | 0.09–0.35 mm | 415, 410M, 9473 | Electronics, commercial packaging |
| Adhesive Transfer | Ultra-thin, no carrier | 0.025–0.25 mm | 465, 950, 9472LE | Splicing, overlays, fine graphics |
| Removable | Releasable, residue-free removal | 0.06–0.13 mm | 9415PC, 9425 | Temporary mounting, POS displays |
| Tissue/Polyester | Tearable, flexible & strong | 0.13–0.20 mm | 9448A, GPT020F | Print finishing, splice applications |
Noteworthy Examples
- 3M VHB Tape 4910: Crystal clear. Perfect for bonding glass and transparent plastics in displays and signage.
- 3M 4516 Vinyl Foam Tape: I use this for gasketing and protecting sensitive electronics.
- 3M 9472LE: Great for bonding difficult low-surface-energy plastics for good.
- 3M 415 Double Coated Tape: A quick fix for packaging and carton work.
- 3M 465 Adhesive Transfer Tape: My go-to choice for graphic attachment and overlays.
3M keeps expanding its double sided tape options to meet specific bonding, production, and protection needs across industries. The company balances strength, weather resistance, flexibility, and cost across thousands of options.
How to Choose the Right 3M Double-Sided Tape
I recommend selecting 3M double sided tape based on your materials, environment, load, and appearance needs. Here’s how I suggest you make the right choice using proven criteria, real use cases, and data checks.
1. The Invisible Deal-Breaker: Surface Energy
Before looking at adhesive strength, ask yourself: What material am I bonding?
Adhesives react differently to “High Surface Energy” (HSE) and “Low Surface Energy” (LSE) materials. This is the #1 reason for bond failure.
HSE Materials (Easy to Bond): Metals (stainless steel, aluminum), glass, and rigid plastics like polycarbonate. Most standard VHB tapes (like the 4900 series) work perfectly here.
LSE Materials (Hard to Bond): Polypropylene (PP), Polyethylene (PE), powder-coated paints, or rubber. These surfaces feel “waxy.” High-performance adhesive flows away from them.
Expert Tip: For these, you must use 3M’s LSE-specific tapes, such as the VHB 5952 series or 9472LE transfer tape.
2. Matching Tape Thickness to Surface Texture
Tape thickness isn’t just about how much gap you want to fill; it’s about contact area.
The “50% Contact” Rule: For a bond to hold, the adhesive must touch much of the surface. If you are bonding a textured surface (like wood, concrete, or brushed metal) with a thin tape, you might only contact the “peaks” of the texture. I recommend using a thicker foam tape (0.6mm – 1.1mm) for these jobs. The foam compresses and flows into the “valleys,” creating a full, secure seal.
3. Static vs. Dynamic Stress
Is your part just sitting there, or is it fighting gravity?
Lightweight Mounting: For nameplates or graphic overlays that just sit flat, a thin transfer tape (like 3M 465) is cost-effective and sufficient.
Structural Loads: If you are mounting a heavy sign vertically or attaching stiffeners to a truck panel, the bond line must handle shear stress and vibration. Here, Acrylic Foam Tapes (VHB) are non-negotiable. They act as a shock absorber.
4. The Environment Factor
Where will this product live in 5 years?
Outdoors: UV light destroys rubber-based adhesives. Always stick to 100% acrylic adhesives (like VHB or 3M 200MP) for outdoor use. They are virtually immune to sunlight and rain.
Extreme Heat: For electronics or engine parts reaching over 150°C, typical foam tapes might melt. Look for 3M’s solid adhesive transfer tapes like the 100MP series which can survive short-term spikes up to 260°C.
5. Quick Selection Checklist
Before you place an order with CNNBox, run down this 5-point check. It saves time and prevents rework.
Substrate: Are my surfaces HSE (Metal/Glass) or LSE (Plastic/Powder Coat)?
Texture: Is the surface rough? (If yes, go thicker).
Environment: Will it see direct sunlight, solvents, or extreme heat?
Expansion: Are the two materials different (e.g., plastic on metal)? (If yes, use flexible foam tape).
Aesthetics: Do I need a clear tape (VHB 4910) for glass, or is black/grey fine?
Still unsure? With thousands of 3M product codes, it’s easy to get lost. As a premier supplier, CNNBox can help match your specific specs to the exact 3M part number.
Industry Use Cases: A Quick Reference Guide
3M double sided tapes give you invisible bonding and fast assembly. They are a staple across major sectors. Don’t waste time reading long descriptions. Use this chart. You can match your industry with the specific 3M solution that pros use.
| Industry Sector | Common Applications | Go-To 3M Products | Key Advantage |
|---|---|---|---|
| Signs & Displays | Mounts indoor/outdoor signs, structural glazing, and clear fabrication. | 3M™ VHB™ 5952 (Black) VHB™ 4910 (Clear) |
Swap screws for a clean look. Handles UV, rain, and heat changes well. |
| Automotive & Transport | Attaches emblems, side molding, and trim. Replaces metal fasteners. | VHB 4910, 4950 Series | Cuts vehicle weight. Helps stop vibration and noise. |
| Electronics | Bonds touch panels and thin device housings. | VHB 5952 3M 9473 |
Strong grip on plastics (LSE). Great for precise die-cutting. |
| Print, POP & Graphics | Temporary posters, labels, and store displays. | 3M 9415PC, 9425 (Removable) | Move it without leaving residue. Perfect for retail promos. |
| Metal Fabrication | Attaches nameplates, appliance panels, and metal stiffeners. | Transfer Tape 465 VHB Series |
Keeps the bond line even. Say goodbye to welding marks and rework. |
| Packaging (Food & Paper) | Splices films on fast lines. Assembles boxes. | Double Coated 9579 Tape 415 |
Works with automation. Avoids the mess and risks of liquid glue. |
| Construction & MRO | Secures dust sheets, carpets, and permanent trims. | Paper Tape 410M Double Coated 9579 |
Speeds up building by ~30%. Lasts a long time. |
| Aerospace | Insulates panels, attaches carpet, and secures light trim. | Flame Retardant Series | Strong but light. Meets strict safety standards. |
| Textile & Foam | Laminates foams for shoes, car seats, or sound panels. | Transfer Tape 950 | Strong stick flows into porous surfaces. Holds permanently. |
Note: These are standard picks. Check the surface energy (HSE vs. LSE) of your materials. Do this before you order in bulk.

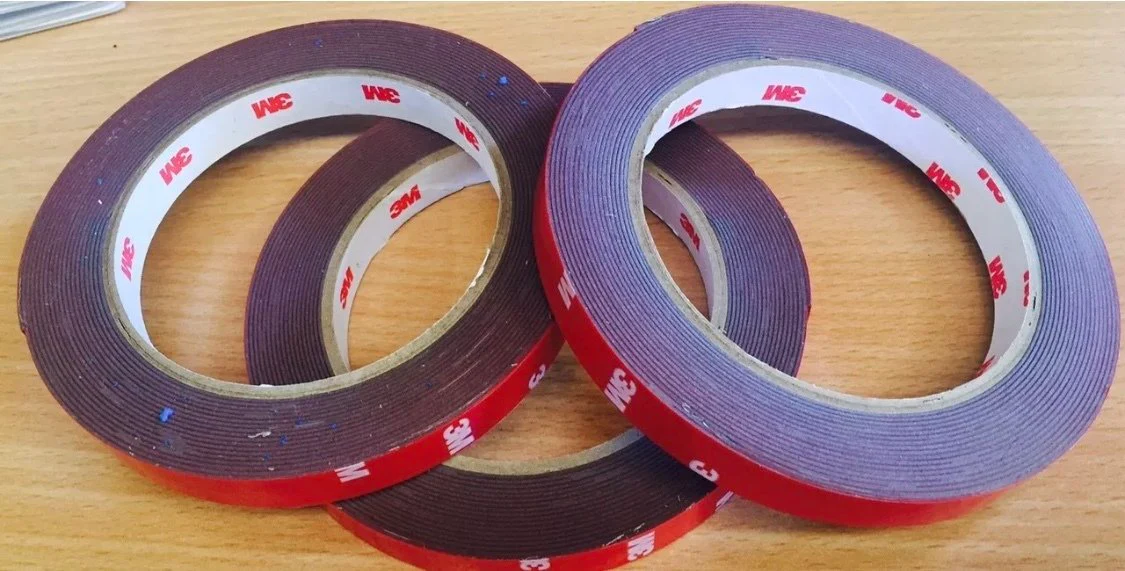

3M Double-Sided Tapes Real-World Performance Guide
Raw data sheets with values like “1000g static shear” confuse most people. You just want to know: Will it hold my part? Let’s look at 3M tape performance in the field. We translate lab specs to practical reality.
1. Adhesion Strength
For adhesion, look at Peel Strength. This measures the force needed to rip the tape off the surface.
Standard Tapes (e.g., 3M 444): Consider these the workhorses for general mounting. You get a solid grip—around 12 N/cm. In plain English? It holds plastic trims, gaskets, or packaging well. You can still peel it off with some effort.
The Heavy Hitters (e.g., VHB 5952): VHB plays in a different league. Peel strengths often exceed 39 N/cm. These tapes are structural. Tests on metal or glass show the adhesive stays put. The foam core rips apart first. So, the bond is stronger than the tape itself.
Specialty Cases (e.g., 3M 9731): This tape solves problems. It uses two different adhesives. One side loves standard plastics (acrylic). The other grabs onto difficult surfaces like silicone rubber. It acts as a chemical bridge between two incompatible materials.
2. Shear Strength
Adhesion gets the tape on the wall. Shear Strength keeps it there. It resists sliding down under a load.
Hang a heavy sign vertically. Gravity tries to slide it down. VHB tapes act like “liquid rivets” here. Their foam core absorbs stress. Standard foam tape might creep or slide over weeks (the “static shear” failure). High-grade VHB creates a permanent, cross-linked bond. It resists this creep, even under heavy loads.
3. Temperature & Endurance
A tape might stick well in your workshop. But check what happens in the real world.
Standard Conditions: Tapes like the 444 or 415 series handle sustained temps up to around 80°C (180°F). This covers almost all indoor and standard packaging uses.
Extreme Environments: Say your product sits inside a car engine bay or on a sunny exterior wall. You need the VHB or 9731 series. They handle thermal cycling (hot days/cold nights) without losing their grip. I’ve seen VHB hold firm even with temperature spikes to 150°C or drops well below freezing.
4. Thickness Matters: Filling the Gaps
Don’t just look at the adhesive. Check the thickness too.
Thin Films (0.05mm – 0.15mm): Use these (like 3M 465) for precision. They represent the perfect choice for splicing paper or mounting graphic overlays. You avoid a “bulky” visible edge.
Thick Foams (0.6mm – 3.0mm): Here VHB shines. Textured surfaces (like painted cement or wood) need this thickness. Materials expanding at different rates (like plastic on metal) do too. It acts as a buffer to fill gaps. It absorbs stress so the bond doesn’t snap.
Summary: Don’t obsess over the exact “Newtons per centimeter” (unless you build airplanes). For most jobs, match the tape type to your environment: Transfer tapes for thin, indoor precision; VHB for tough, outdoor, structural power.
Applying 3M Double-Sided Tape: The Expert Guide
You can pick the world’s strongest VHB tape. It still fails with wrong application. I’ve seen 90% of bond failures in my career. The tape isn’t the problem. Poor surface prep or low pressure causes the issue. Use this protocol. Your bond will last.
Step 1: The “50/50” Cleaning Rule
Surfaces often look clean. They aren’t. Invisible oils, dust, or release agents hide there. Don’t just wipe with a rag.
The Mix: Mix Isopropyl Alcohol (IPA) and water 50:50. It cuts grease. It leaves no residue.
For Oily Metals: Working with machine oil or heavy grease? Clean with acetone first. Then use the IPA mix.
The Golden Rule: Keep the surface 100% dry. Moisture under the tape kills 50% of bond strength immediately.
Step 2: No Tension Application
Never stretch the tape. You might want to pull it tight for a straight line on long runs. Don’t do it. Stretched tape tries to snap back to its original shape. This creates tension. That tension lifts the edges over time.
Pro Tip for Corners: Avoid folding the tape. Cut mitered corners (like a picture frame). This keeps the edge flat and sealed.
Step 3: Pressure is Key (Wet-Out)
3M tapes operate as “Pressure Sensitive Adhesives” (PSA). Touching isn’t sticking. The tape must flow into the surface’s microscopic texture. We call this “wet-out.”
The Force: Use at least 15 psi (approx. 1 kg/cm²) of pressure.
The Tool: Your thumb won’t work for large jobs. Use a rubber roller (J-roller) or squeegee. Press down hard across the full width. Skipping this leaves gaps. The adhesive hits surface “peaks” but misses the valleys.
Step 4: Respect the Cure Time
Bonding takes time. The adhesive needs to slow-flow and lock in.
Right Away: You get about 50% strength immediately.
Full Cure: Wait 72 hours at room temperature (20°C). It reaches 100% strength then.
Need it faster? Heat the bond to 65°C (150°F) for one hour. That speeds it up.
🚫 Common Pitfalls
Glass Cleaners: These often contain adhesion-killing waxes or soaps. Use IPA instead.
Touching Adhesive: Fingerprints leave oils. Hold the tape by edges only.
Cold Temps: Avoid taping below 10°C (50°F). Cold adhesive gets too firm to flow right. Working in the cold? Warm the surface with a heat gun first.

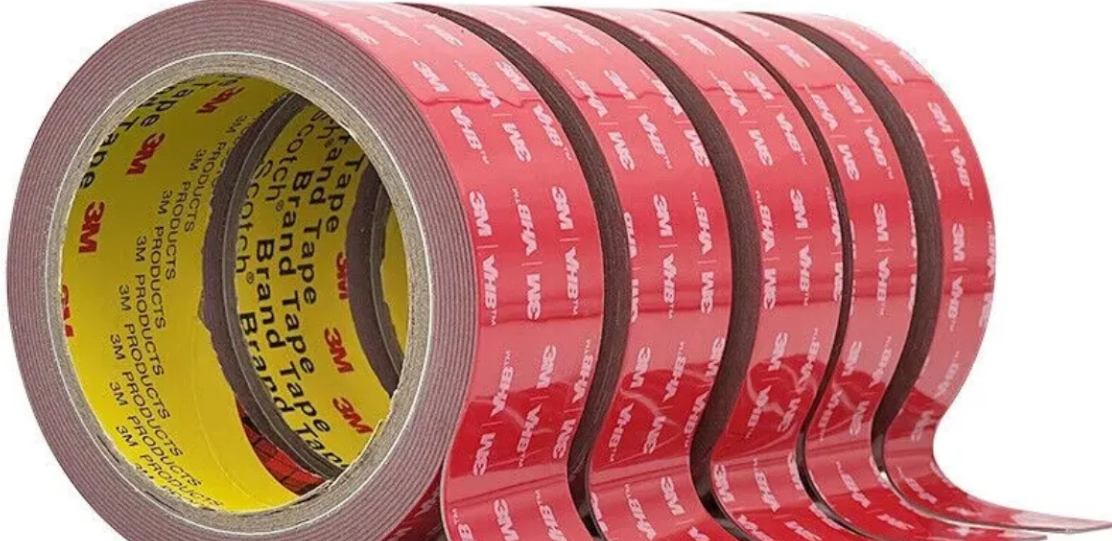

Conclusion: Why I Recommend 3M Double-Sided Tape for Your Bonding Needs
I believe 3M double-sided tapes offer reliable solutions for assembly, manufacturing, and daily tasks. They provide strong adhesion with clean finishes. They also speed up your production work.
Key Performance Advantages
Durability in Demanding Conditions
Many 3M tapes stay strong from -40°F to 300°F. They can handle up to 90 psi. I’ve seen this toughness work well in tough jobs. Think outdoor signs, car interiors, or HVAC systems with constant temperature changes.
Invisible Bond & Efficient Workflow
These tapes create clean joins. You can barely see them. They remove the need for screws or rivets. This helps keep surfaces like metal, glass, and plastic looking good. You get a smooth finish. I find this crucial for modern electronics and home decor.
Suitability for Multiple Industries
3M offers many product lines. They cover mounting retail signs and bonding insulated metal panels. They also work for attaching car trim and mounting LED strips in homes and offices. I suggest you pick the tape that fits your strength, thickness, and size needs.
Specialized Solutions for Every Substrate
Foam-based tapes fill uneven gaps. They also reduce vibration in cars or air systems. Ultra-thin films give you a light, flexible choice. I recommend them for lightweight nameplates or labels.
Choosing the right 3M double sided tape is about more than just “stickiness.” It’s about balancing substrate chemistry, environmental stress, and assembly speed. While 3M provides the world-class chemistry, CNNBox provides the expertise to apply it correctly to your product.
Whether you need precision die-cut VHB parts for electronics or bulk rolls of transfer tape for packaging, our role as a premier supplier ensures you get genuine materials converted to your exact specs.
