A corrugated box for shipping travels a dangerous road. It leaves your warehouse in perfect condition. It enters a network of conveyor belts, chutes, and trucks. The journey is violent. Packages drop. They slam into walls. Heavy cargo falls on top of light cargo. Vibration from the road shakes the contents for hours. The only thing keeping the product inside the box is the seal.
We often overlook the seal. We treat it as an afterthought. We slap a piece of tape on the top and move to the next order. This approach loses money. Poor sealing leads to open flaps. It allows dirt and moisture to enter. It invites theft. It results in damaged goods and angry customers.
Shipping security starts with the seal. It is not just about closing a box. It is about engineering a secure container. This guide covers the essential practices for sealing corrugated boxes. We will look at the tools of the trade. We will explore the methods that guarantee your package arrives intact. We will focus on the practical steps you must take on the packing line to ensure success.
Choosing the Right Sealing Tape for Your Boxes
Tape thickness keeps your corrugated Box sealed during shipping. Light packages need different protection than heavy freight.
Match Tape Thickness to Box Weight:
Box weight sets the minimum tape thickness. Here’s what works:
Box Weight | Box Dimensions | Required Mil Thickness |
|---|---|---|
0–20 lbs | Up to 40 inches | 1.6–1.8 mil |
20–35 lbs | Up to 50 inches | 1.8–2.0 mil |
35–50 lbs | Up to 60 inches | 2.0–2.6 mil |
50–65 lbs | Up to 80 inches | 2.6–3.2 mil |
65–80 lbs | Up to 100 inches | 3.2–3.5 mil |
Boxes over 25 pounds need acrylic tape between 2–2.4 mils thick. Anything above 60 pounds requires 3+ mil thickness minimum.
Selecting the Right Sealing Material
Acrylic Tape for General Use
Acrylic tape is the industry standard. It is versatile. It works well for standard shipping conditions. It resists aging and yellowing. It holds up under UV light. If you ship consumer goods that might sit in a warehouse, acrylic is a solid choice. However, it requires a “dwell time.” The adhesive needs a few minutes to reach full strength. If you pack a box with high spring-back force on the flaps, you might need to hold it down for a moment.
Hot Melt Tape for High Stress
Hot melt tape is for speed and strength. It feels incredibly sticky the moment you touch it. It offers high “shear strength.” This means it resists the sideways pull of the box flaps. If you overstuff a carton, the flaps want to pop open. Hot melt tape grabs instantly and holds that tension. It is excellent for automated taping machines. It is the best choice for recycled corrugated boxes. Recycled board produces more dust and has shorter fibers. Hot melt adhesive penetrates this difficult surface better than acrylic.

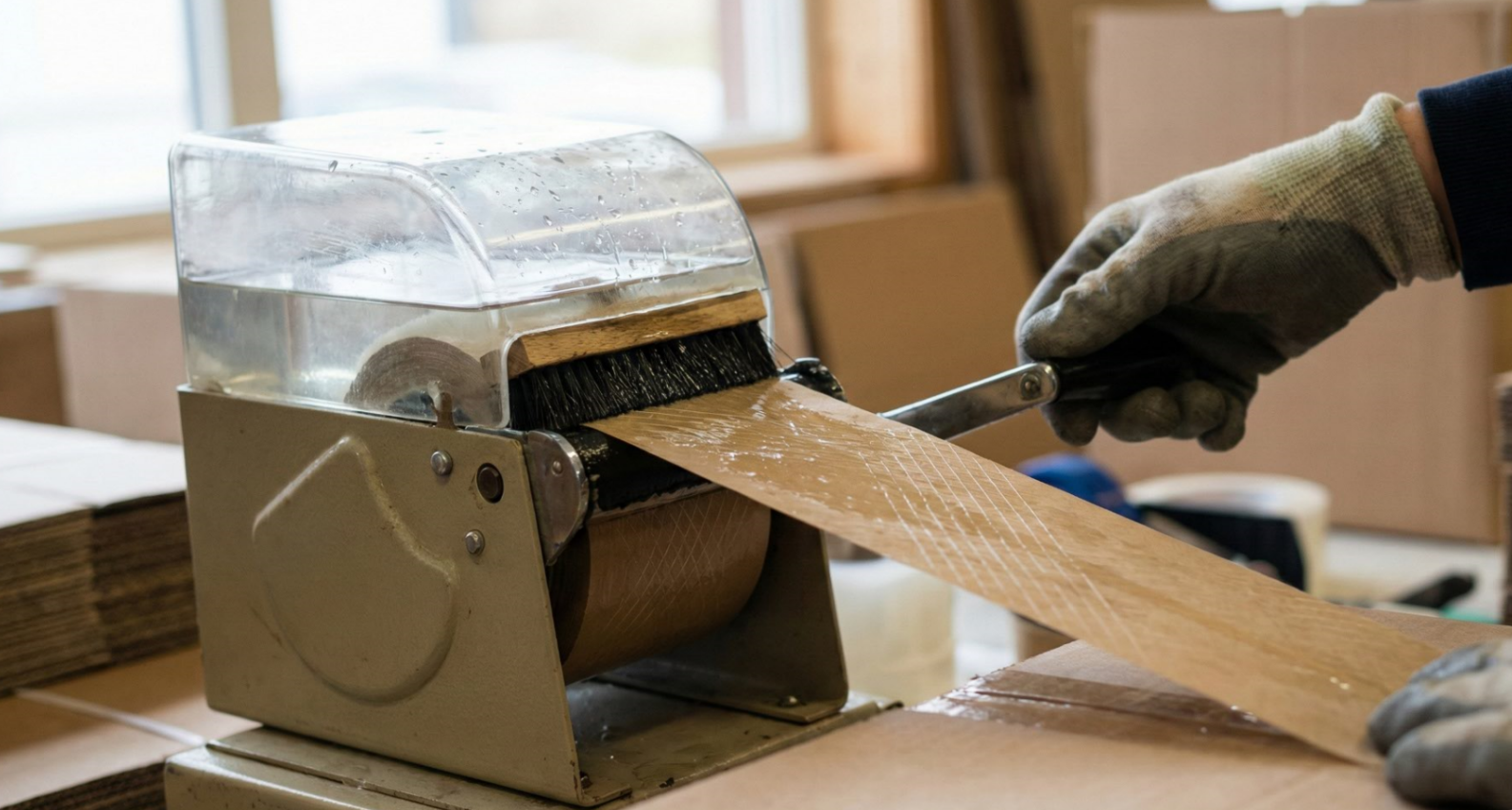

Water-Activated Tape (WAT) for Security
Water-activated tape provides the highest level of security. This is the gummed paper tape used by major E-Commerce giants. The adhesive is a dry starch that activates with water. The fluid soaks into the box liner. As it dries, the tape and the box fuse. They become one material. You cannot peel this tape off. You must destroy the seal to open the box. This adds structural rigidity to the carton. It makes the box stronger and more stackable.
Staples and Glue for Heavy Industry
For heavy manufacturing, tape might not be enough. Industrial hot melt glue creates a permanent bond. It leaves the box looking clean with no visible tape. It is tamper-proof because opening the box destroys the flaps. Wide crown staples are for heavy loads. They mechanically lock the flaps together. They ignore heat and humidity. However, you must be careful. Staples can scratch the product inside.
The Foundation: Proper Box Assembly
A good seal starts before you apply the tape. It starts with how you construct the corrugated box.
Square the box. When you open a flat box, ensure the corners are at 90-degree angles. A skewed box is weak. The flaps will not line up correctly. This creates gaps that tape cannot bridge effectively.
Fold the minor flaps (the small ones) in first. Then fold the major flaps (the large ones). Do not interlock the flaps. Some packers fold them over each other to hold the box closed without tape. This is bad practice. It weakens the structural integrity of the box. It puts stress on the corners. Always fold them flat and let the tape do the work.
Check the fill level. Under-filled boxes collapse. Over-filled boxes burst. If a box is empty at the top, cut the corners down. Score the box to the height of the product. Fold the flaps at the new score line. This creates a flat surface for the tape. The tape needs a solid backing to stick. It cannot stick to air.

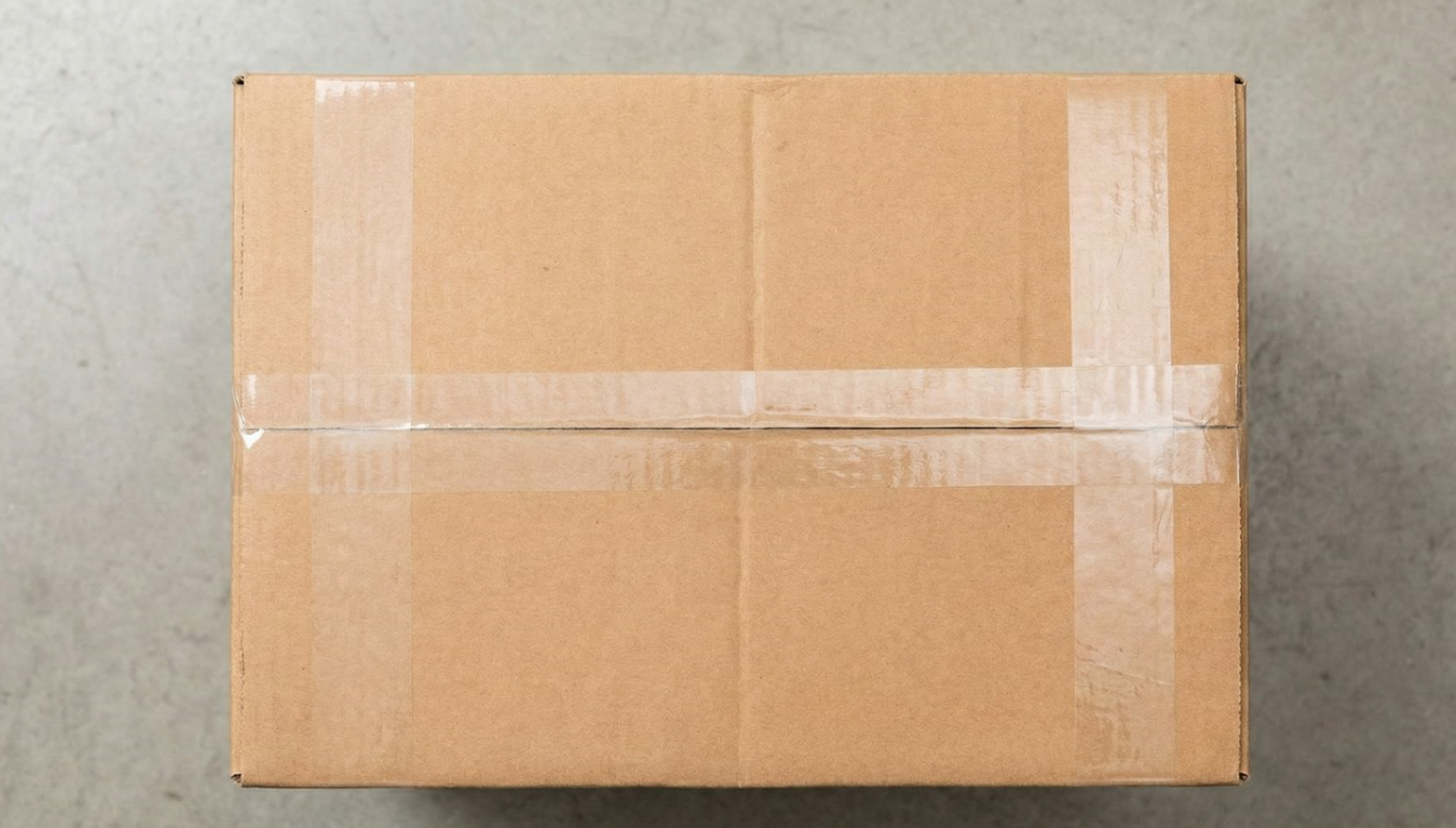

The H-Tape Method: The Gold Standard
Speed often overrides quality in a busy warehouse. Packers run a single strip of tape down the center seam. This is the “one-strip method.” It is fast. It is also inadequate for shipping fragile or high-value items.
The “H-Tape” method is the professional standard. It secures every opening. The final seal looks like the letter H.
Step 1: The Center Seam
Close the flaps. Ensure they meet perfectly in the middle. Apply a strip of packing tape along the length of the gap. Do not stop at the edge. Allow the tape to overhang the ends by at least three inches. Fold this overhang down the sides of the box. Rub the strip firmly. This anchors the top seal to the side panels.
Step 2: The Side Seams
Look at the ends of the box. The flaps leave a gap where they meet the side panels. This is a weak point. Dust enters here. Moisture enters here. Thieves can slide a hand inside to feel the contents. Apply a strip of tape perpendicular to the center seam. Seal this edge gap completely. Wrap the ends around the corners.
Step 3: The Bottom
Flip the box. Repeat the process on the bottom. You now have six sealed seams. The box is airtight. The structure is reinforced. The flaps cannot catch on conveyor belts. This method uses more tape. It takes more time. But it guarantees the highest protection.

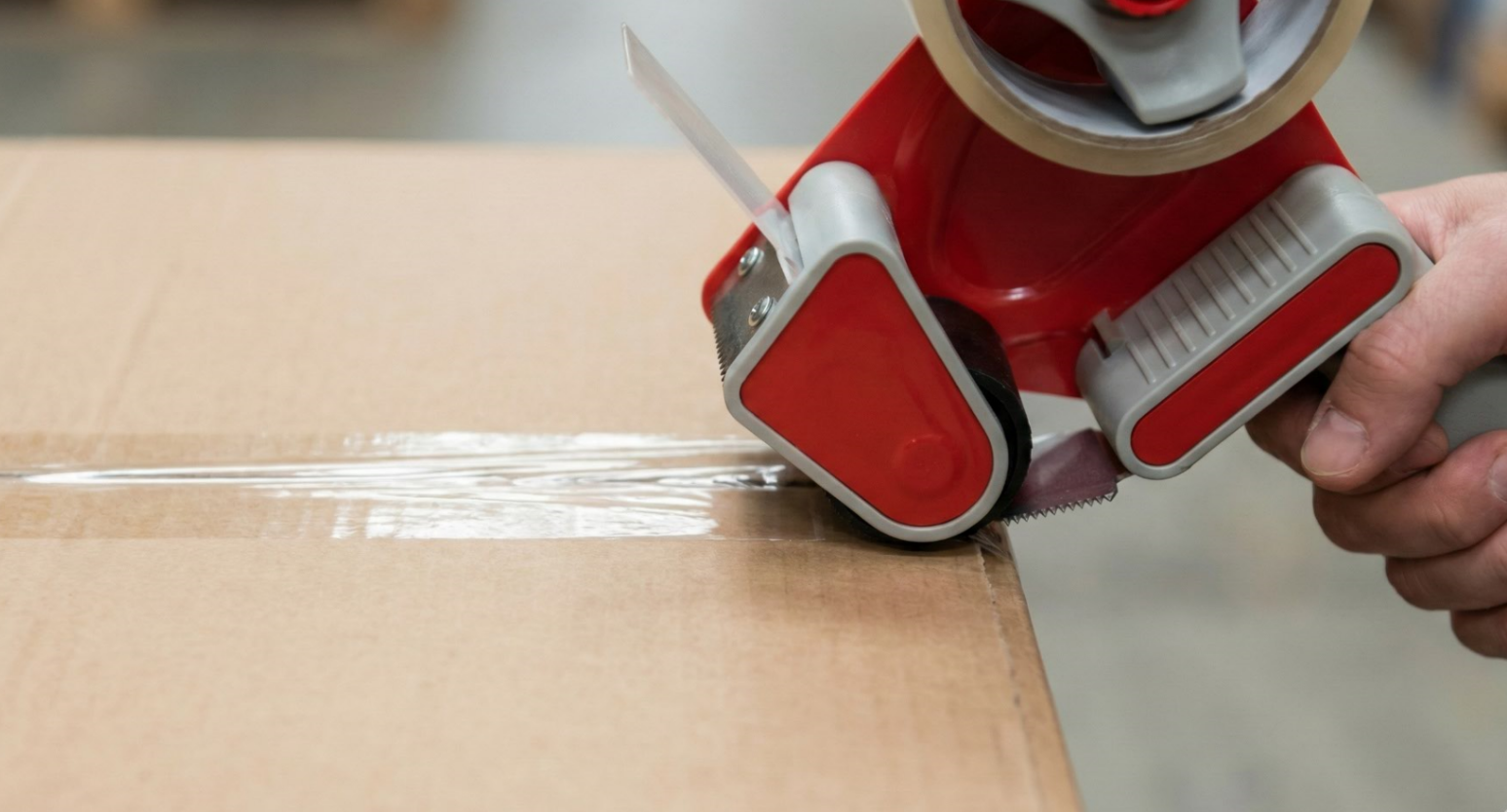

Mastering the Tape Gun
The handheld tape dispenser is your primary tool. Using it incorrectly leads to waste and poor seals.
Tension Control
The tension knob on the tape gun acts as a brake. If it is too loose, the roll spins freely. The tape loops back and sticks to itself. If it is too tight, you stretch the tape as you pull it. Stretched plastic wants to return to its original shape. After you apply it, it pulls back. This causes the tape to pop off the ends of the corrugated box. We call this “flagging.” Adjust the brake until the tape dispenses smoothly with slight resistance.
The Cut
A jagged cut is a weak point. Keep the blade clean. Remove built-up adhesive. Replace the blade if it is dull. When you cut the tape, use a deliberate motion. Tilt the gun forward. Let the blade slice through the film. Do not tear it. A clean cut lays flat. A torn cut curls up and invites peeling.
Industrial Alternatives: Glue and Staples
High-volume operations often move beyond tape. They use industrial adhesives and metal fasteners.
Hot melt glue systems are efficient. A machine melts adhesive pellets. It sprays lines of glue on the inner flaps. Compression rails hold the outer flaps down while the glue cools. This creates a clean, professional look. The graphics on the shipping boxes remain visible. The bond is permanent. You must tear the flaps to open the box. This provides excellent security evidence.

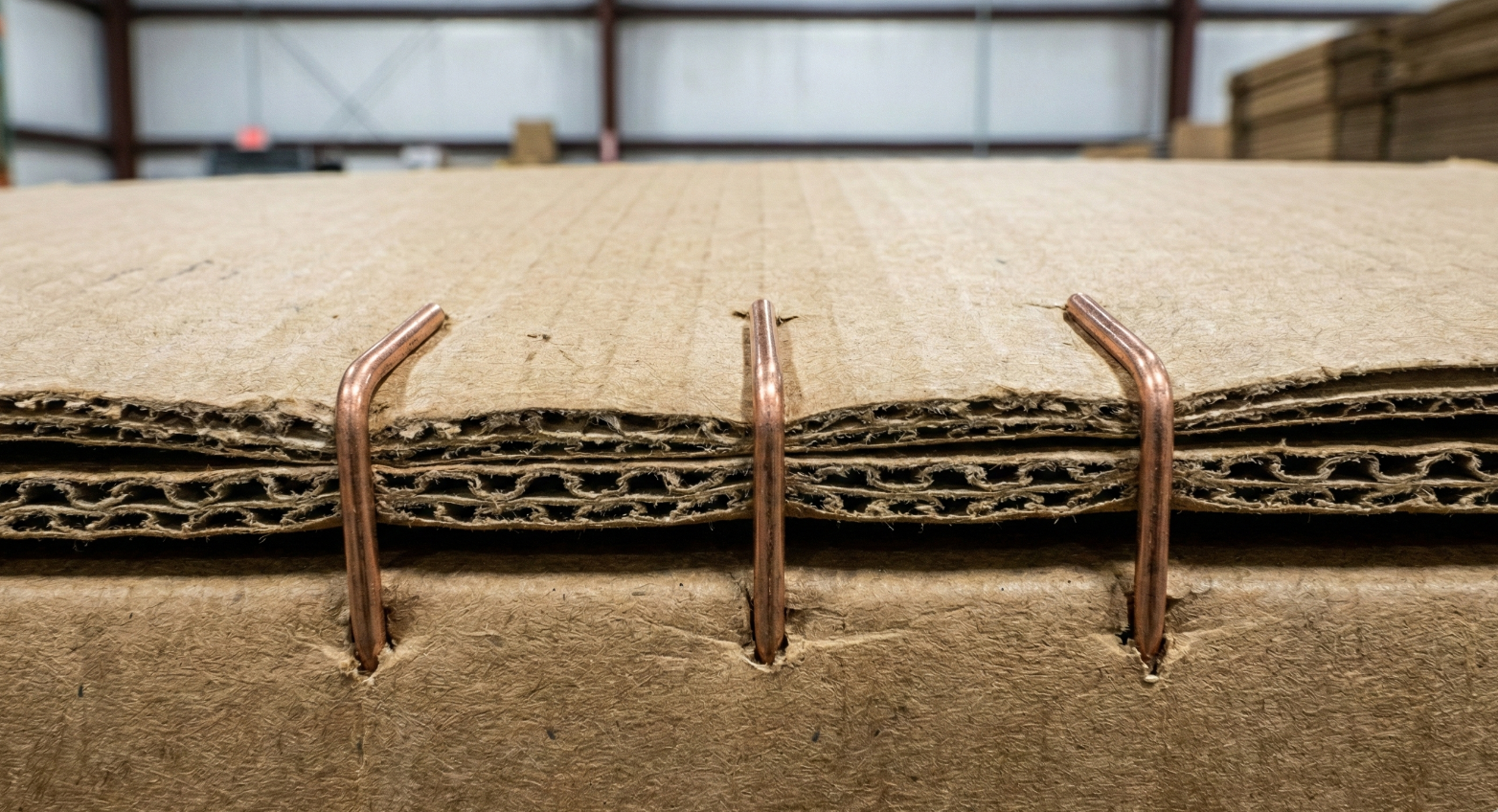

Wide crown staples offer brute strength. You see them on heavy boxes containing furniture or engines. Pneumatic tools drive large metal staples through the corrugated board. The tool clinches the staple legs underneath. This creates a mechanical lock. Staples ignore heat and humidity. They hold heavy loads that would snap tape.
Staples carry risks. The metal legs can scratch the product inside. You need a buffer zone between the item and the top of the box. They are also difficult to remove. The recipient needs tools to open the package safely.
Eco-Friendly Sealing
Sustainability matters to consumers. They prefer packaging that is easy to recycle.
Paper tape is the superior choice for the environment. The box is paper. The tape is paper. The adhesive is plant-based starch. The entire package goes into the recycling bin. The paper mill processes it without issue.
Plastic tape is a contaminant. The recycling facility must screen it out. It ends up in the landfill.
Cellulose tape offers a middle ground. It looks like clear plastic. It is made from wood pulp. It is biodegradable. It breaks down in industrial compost. It provides the look of plastic with a smaller environmental footprint.
Avoid fiberglass filament tape for green shipments. The glass strands ruin the paper recycling process. If you use it, instruct the customer to remove it before recycling the box.
Common Sealing Mistakes
Even with good intentions, mistakes happen. identifying these defects helps you correct them before the truck arrives.
The Dog Ear
This happens when the tape runs past the corner and hangs loose. It folds back on itself. It sticks to the side panel in a messy lump. Loose tape is a hazard. It catches on conveyor belts. Sorting machines will rip the tape off the box. Always smooth the tape ends down immediately. Ensure they adhere flat to the side of the box.
The Bridge
This occurs when the tape spans a gap without touching the box. This happens if the flaps do not meet. The tape is suspended in the air. It is under constant tension. The first impact will break the tape. The box will pop open. If you have a gap between flaps, use a wider tape. Standard tape is 2 inches wide. You might need 3-inch tape for large or under-filled boxes.
The Wrinkle
Long wrinkles in the tape are channels for air and dirt. They reduce the holding power. Wrinkles happen when you do not apply tension evenly. Apply the tape in one smooth, continuous motion. Rub it down to flatten any small creases.
Security Seals and Theft Deterrence
The seal is your lock. It protects the value inside. A standard clear seal offers limited protection. A thief can cut the clear tape, remove the item, and reseal the box with their own clear tape. The customer receives an empty box and blames you.
Branded Tape
Custom printed tape acts as a security device. It features your logo or company name. A thief does not carry your custom tape. They cannot replicate the seal. If they cut it, they cannot hide the evidence. They will likely choose a different target.

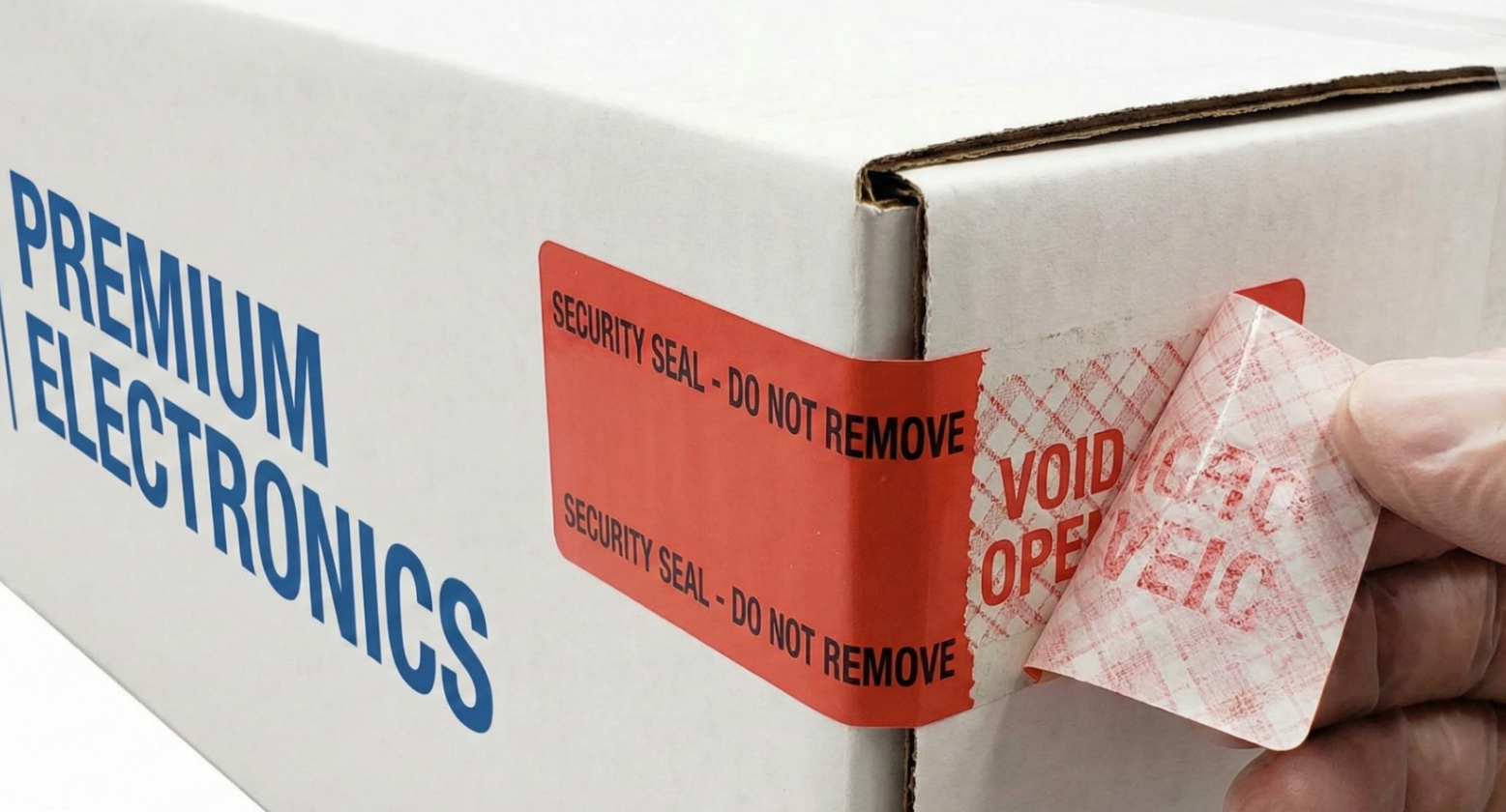

Tamper-Evident Labels
For high-value Electronics or jewelry, use a security label. Place a specific sticker across the end of the tape seam. These stickers fracture when removed. They leave a “VOID” message on the box.
Chain of Custody
Inspect the seal before the carrier takes the package. Verify that the tape is intact. If you use security seals, record the serial number on the shipping documents. This proves that the box was secure when it left your facility.
Verifying the Seal Quality
Do not assume your process is working. Test it. perform random checks on your packing line.
Pick up a sealed box. Pull on the flaps. Does the tape hold? Or does it slide?

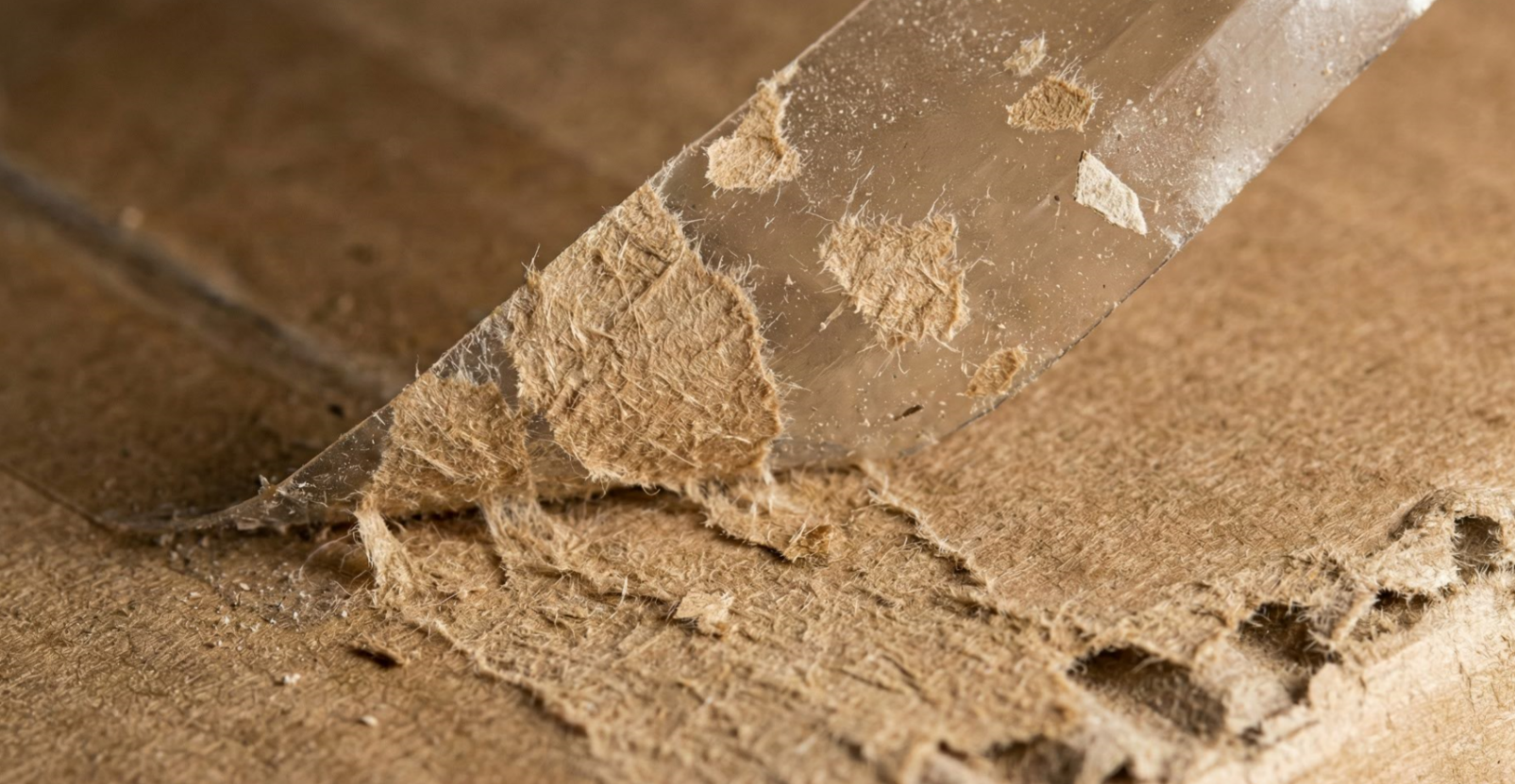

Peel the tape back aggressively. Look at the underside of the tape. You want to see “fiber tear.” This means paper fibers are stuck to the adhesive. It proves the glue is stronger than the paper. This is a successful bond.
If the tape peels off clean, the seal failed. You need to apply more pressure. You might need a more aggressive tape. You might need to clean the box surface.
Conclusion
You spend massive effort on manufacturing and marketing. So, don’t treat shipping as an afterthought. Think of it this way: that strip of tape stands between a 5-star review and a damaged return claim. Packages face rough journeys. This tests every weak point in the corrugated board, and it doesn’t care about your profit margins.
Perhaps you use the rigorous H-Tape method for high-value items. Or maybe you switch to water-activated tape for security. The goal is the same: consistency. You aren’t just closing a box. You are engineering a secure container to handle logistics chaos. Don’t hunt for the cheapest sealing material. Find the one that fits your shipment’s weight and stress.
Walk down your packing line tomorrow. Watch the tape application. Are operators stretching the film? Are corners loose? A technique tweak or thicker tape might look trivial now. But it saves big money later. Plus, it protects your reputation. Secure it right. Your customers see the difference before they even open the box.
