Your product has about three seconds to catch a customer’s eye. In that brief moment, your packaging is doing all the talking. It protects your hard work, tells your brand story, and ultimately closes the sale. Yet, it surprises us how often companies treat folding cartons as an afterthought.
We see it all the time: amazing products hidden inside flimsy boxes that crush during shipping, or beautiful designs that turn into a nightmare on the production line. The gap between a “good idea” and a “manufacturable box” is often wider than you think.
Whether you are launching a new cosmetic line or shipping heavy electronics, the physics of paperboard remain the same. This guide strips away the guesswork. We’ve distilled the complex manufacturing process into 8 actionable steps—the exact same framework guiding the successful projects we see every day.
Ready to build a package that protects, performs, and sells? Let’s dive in.
Step 1: Define Your Product Requirements
Before you look at paper samples or call a designer, you need to audit your product. Designing a box without accurate specs is like buying a suit without knowing your size—it might look good on the rack, but it won’t fit when you put it on.
Gather these three sets of data to avoid costly revisions later. Don’t guess—measure.
The Physical “Non-Negotiables”
Get a ruler and a scale. You need precise numbers to share with your packaging engineer:
Exact Dimensions: Measure the Length × Width × Depth in millimeters. Pro Tip: Plan to add 3-5mm of “air” on all sides so the product doesn’t fit so tightly that it tears the box.
Total Weight: Weigh the product plus any accessories (chargers, manuals). This number dictates the paper strength you’ll choose in Step 5.
Shape Irregularities: Is your product a simple cube, or does it have a weird nozzle sticking out? Odd shapes usually need custom inserts to stop them from rattling.
The “Kryptonite” List (Vulnerabilities)
What hurts your product? Be honest about its weaknesses so the packaging can compensate.
Fragility: Is it a glass bottle (High Fragility) or a plush toy (Zero Fragility)? Glass needs corrugated cushioning; toys just need a dust cover.
Moisture Sensitivity: Does it melt, rust, or clump? If yes, standard paperboard might not be enough—you’ll need barrier coatings (we discuss materials in Step 2).
Surface Sensitivity: Can the product surface scratch easily? If so, you need a non-abrasive inner liner.
The Legal & Retail Rules
Nothing is worse than printing 10,000 boxes and realizing you forgot a mandatory symbol.
Regulatory Text: Do you need FDA facts, ingredient lists, or specific warning labels? Measure how much space this text requires—it often forces the box to be larger than the product itself.
Retail Environment: Will it hang on a hook (needs a hang tab) or sit on a shelf (needs a flat bottom)?
Sustainability Mandates: Are you selling in markets (like the EU) that require specific “Recyclable” logos or FSC certification? Note this now.
Got your specs written down? Good. Now, let’s pick the material that fits those needs in Step 2.
Step 2: Select the Right Material Type for Your Vision
Forget technical thickness or grammage for a moment. We cover those in 5 points. First, group your custom packaging by its function and look. Do you want a clean canvas for art? Maybe a rustic feel? Or a heavy shield?
Folding cartons usually fit into three material groups. Pick the right one to start your brand’s story.

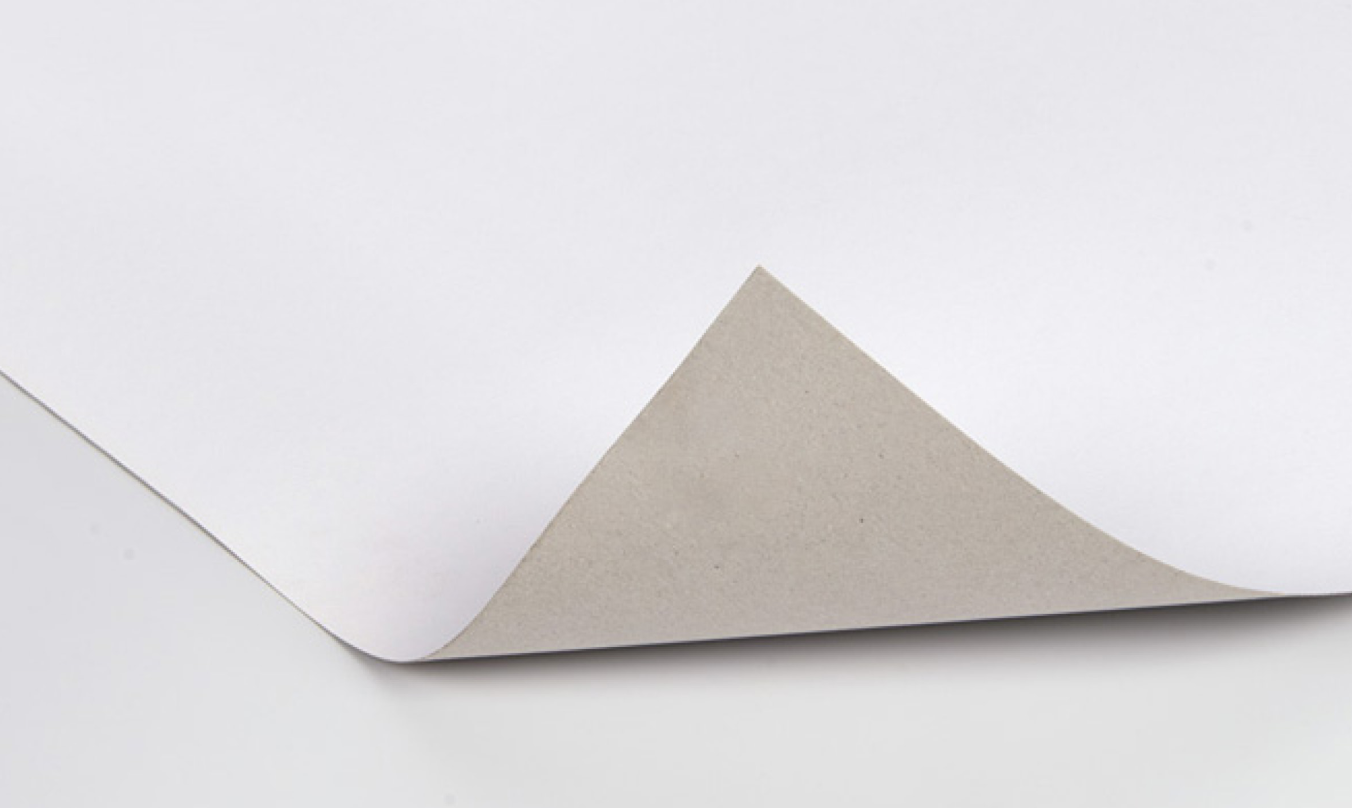

White Paperboard (Cardstock)
You see this standard on most retail product packaging, from cosmetics to meds. It uses a coated white surface (Clay Coated). This gives you vibrant, photo-quality prints.
Best Features: You get the smoothest surface for detailed graphics. It handles gradients and special finishes like foil stamping well.
The Vibe: Clean, medical, premium, and professional.
Common Uses: Perfume boxes, toothpaste cartons, software packaging, and lightweight food items.
Limitation: It gives less impact protection than corrugated board.

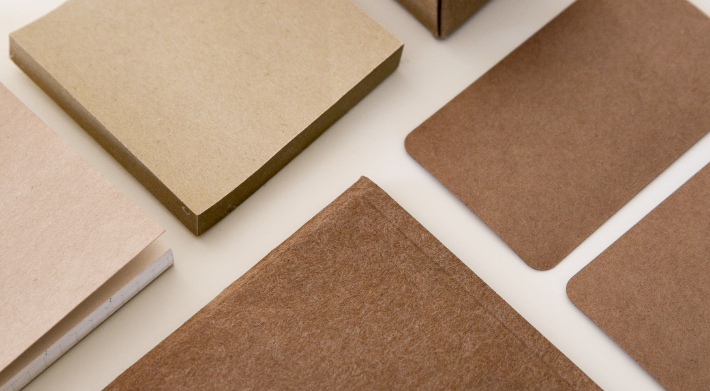

Kraft Paper (Unbleached/Brown)
Makers use unbleached wood pulp for this. It keeps the natural brown color. Shoppers connect it with nature. Unlike white board, Kraft fibers are long and strong. This makes them resist tearing well.
Best Features: It is strong. The “eco-friendly” look stands out to customers. Also, it hides dirt and fingerprints better than white board.
The Vibe: Organic, rustic, artisanal, and sustainable.
Common Uses: Organic soap boxes, coffee boxes, hardware parts, and eco-conscious apparel brands.
Limitation: Colors on brown stock can look dull. You need a white underprint for “bright” neon colors.
Corrugated Board (Laminated)
People often mean this when they say “cardboard box.” It uses three layers: an inner liner, an outer liner, and a wavy medium between them. This structure cushions your product with air.
Best Features: You get top-tier protection. It stops crushing and absorbs shock. It even handles temperature changes. Use it for shipping and retail display together (like subscription boxes).
The Vibe: Sturdy, industrial, and substantial.
Common Uses: heavy electronic packaging, glass jar packaging, subscription boxes, and e-commerce shipping mailers.
Limitation: It takes more storage space than paperboard. Also, watch for “flute shadow” (wavy lines). These might show on the print surface without careful lamination.
Summary: Which One Fits Your Brand?
Decide based on your product’s main need:
Pick White Paperboard if: You want visual appeal and high-res graphics (e.g., a luxury face cream).
Pick Kraft Paper if: Your brand story focuses on “nature” or “sustainability” (e.g., a handmade vegan soap).
Pick Corrugated Board if: You have a fragile or heavy product (>1kg). Or, you ship straight to the customer without an extra box.
Pick your material category here. Then, check Step 5. We will calculate the exact thickness and grade you need to hold the weight.
Step 3: Pick the Right Structure for Your Product’s Weight
Verify Structure with a Physical Sample
Designs looks great on a screen. But don’t commit to production based on a drawing. Before you add graphics, get a plain “dummy” box. Use it to check Fit and Function.
You don’t need a lab. Just do these basic checks:
The Fit Check: Does the product sit tight? Check for rattling. Leave 5-10mm of clearance. This helps your team pack items fast without tearing flaps.
The Handling Feel: Lift the loaded box. Does the bottom feel solid? Do flaps stay shut? If the bottom sags or bows, switch to a stronger style.
Note: We cover heavy-duty stress testing (drops, moisture) in Step 8.
Match Weight to Structure
Structure involves physics, not just looks. A 50g face cream needs a simple box. A 3kg candle needs a solid bottom. Pick a style that fits your weight tier:
1. Lightweight (Under 1 kg)
Best Style: Reverse Tuck End Box (RTE) or Straight Tuck End Box (STE).
Why: You save money with these popular styles. They fold flat for shipping. Friction locks keep light products closed without extra glue.
Best For: Cosmetics, vitamins, phone accessories, and light snacks.
2. Medium Weight (1 kg – 5 kg)
Best Style: Auto-Lock Bottom Box (Crash Lock).
Why: Heavier items fail with simple flaps. Components in an Auto-Lock bottom come pre-glued. Push the sides, and the bottom snaps into place. It’s strong and speeds up your packing line.
Best For: Candle boxes, small appliances, beverage packs, and gift boxes.
3. Heavy Weight (Over 5 kg)
Best Style: Full Overlap Seal End Box (FOSE) or 1-2-3 Bottom Box (Snap Lock) with Tape.
Why: Heavy items need maximum security. Full Overlap flaps cover the entire box bottom. This creates a double board layer. You get a large surface for tape or glue, which prevents “bottom blowout.”
Best For: Industrial packaging, bulk dry goods, and heavy ceramics or glass.
Decision Cheat Sheet
Keep it simple. Use this rule of thumb to pick your structure:
- Focus on Unboxing Experience? → Choose Straight Tuck End Box (Clean look, no raw edges).
- Focus on Assembly Speed? → Choose Auto-Lock Bottom Box (Fastest to pack).
- Focus on Safety/Weight? → Choose Full Overlap Box (Best support).
Happy with the physical structure? You now have the shape of your canvas. Let’s design the artwork in the next step.
Step 4: Design for the Shelf (and the Customer)
Retail shelves are loud. Your product has about three seconds to grab a shopper’s attention before they scan the next item. If you sell online, you lose the shelf battle, but the “unboxing moment” becomes your viral marketing tool.
In this step, we focus on the visual strategy. (Don’t worry about file formats, bleed lines, or font sizes yet—we’ll tackle those technical print specs in Step 6).
Consistency is Your Best Friend
Brand recognition is built on repetition. If your customer liked your last product, they should recognize your new one instantly. You don’t need a complex style guide, just stick to these basics:
The Anchor Point: Keep your logo in the same spot on every product packaging (top-center or top-left usually works best). It acts like a familiar handshake.
The Color Rule: Pick one primary color that screams “This is Us” and cover about 60-70% of the product box with it. Use a second color for text and a third just for accents. Too many colors usually just look messy, not fancy.
The “Family” Look: If you sell a serum and a moisturizer, they should look like siblings, not strangers. Use the same patterns or layout lines across the whole range.
Match the Vibe to the Price Tag
Your packaging tells the customer what the product is worth before they even check the price tag. Make sure the visual language matches your brand positioning:
The “Luxury” Look:
Think of expensive perfume. The packaging boxes are simple. They use lots of empty space (white space). The text is small and elegant. If you want to charge a premium, declutter your design. Less really is more.
The “Fun & Playful” Look:
Selling snacks or kids’ toys? Be loud. Use bright colors, mascots, or bold patterns that wrap around the corners. The goal here is energy and excitement.
The “Dependable/Everyday” Look:
For things like hardware or basic cleaning supplies, clarity is king. High contrast (dark text on light background) works best. The customer just wants to know: “Does this fit my drill?” Answer that question immediately on the front panel.
Design for the Environment
Where will this box actually live? The context changes everything.
On a Crowded Shelf: Focus on the top 1/3 of the product box. That’s usually what shows when products are stacked in shelf-ready trays. Put your product name and key benefit right there.
Hanging on a Peg: If you plan to use a hang-tab, remember that the tab eats up space at the top. Move your logo down slightly so the metal peg doesn’t punch a hole through your brand name.
Online Delivery: Since the customer has already bought it, you don’t need to “shout” as loud. You can move crucial info to the inside flap for a surprise message when they open it, turning a boring delivery into an experience.
A Quick “Real World” Check
Before you approve the artwork, try the “5-foot test.” Print your design out on a regular piece of paper, tape it to a carton, and put it on a shelf next to a competitor’s product. Step back five feet.
Can you read the brand name? Does it stand out or vanish? If it blends in, you need more contrast aimed at Step 6, where we will lock down the exact ink colors.
Step 5: Dial Within the Details: Grade and Thickness
You picked your “Look” in Step 2 (White vs. Brown vs. Corrugated). Now we need to pick the “Muscle.” If you choose a board that’s too thin, your product gets crushed. Too thick? You waste money and the box acts like a stiff brick that won’t close properly.
Here is how to translate your needs into specs that a printer understands.
Part 1: For Retail Boxes (Paperboard)
If you aren’t shipping the packaging box directly in the mail (it’s going into a master carton or on a shelf), you are likely using Paperboard. In the US, we measure thickness in “Points” (pt). One point equals 0.001 inch.
Think of it this way: A standard business card is about 10-12pt.
| Grade Name | The “Plain English” Translation | Best Use Case |
|---|---|---|
| SBS (Solid Bleached Sulfate) 16pt – 24pt |
Pure white throughout. The premium choice. It’s crisp, clean, and makes colors pop. | Cosmetics, Medicine, High-tech gadgets. |
| CUK (Coated Unbleached Kraft) 18pt – 24pt |
White on the outside, brown on the inside. It’s tear-resistant and tough. | Heavy retail items (e.g., auto parts), beverage carriers (6-packs). |
| CRB / CCN (Recycled Board) 18pt – 24pt |
The budget option. It often has a greyish or slight yellow tint inside. Made of recycled newsprint. | Dry food (cereal boxes), soap, household goods. |
Part 2: For Shipping Boxes (Corrugated)
If your box needs to survive the mailman or holds something heavy (>2kg), you need Corrugated board. This creates a cushion of air between two sheets of paper. The thickness relies on the “Flute” (the size of the wave in the middle).
| Flute Type | Thickness (App x.) | Why Choose It? |
|---|---|---|
| E-Flute | 1.5mm (Very Thin) | The “Retail” Corrugated. great for heavy cosmetics or subscription boxes. Prints well, folds neatly. |
| B-Flute | 3.0mm (Standard) | The “Shipping” Standard. Use this for 90% of e-commerce shipments. Good crush resistance. |
| EB-Flute (Double Wall) | 4.5mm+ (Heavy Duty) | The “Tank”. Two layers of waves. Only for items over 10kg or fragile electronics. |
So, How Thick Should You Go?
Don’t guess. Use this simple weight-tier guide to talk to your supplier:
- Under 500g (Face cream, small toy): Ask for 16pt – 18pt SBS Paperboard.
- 500g to 1kg (Shampoo bottle, candle): Ask for 24pt CUK Paperboard OR E-Flute Corrugated.
- 1kg to 5kg (Shoebox, small appliance): Go straight to E-Flute or B-Flute Corrugated. Paperboard will likely tear.
- Over 5kg (Bulk goods): You need B-Flute or Double-Wall Corrugated.
A Warning: Thicker Isn’t Always Better
It’s tempting to say “Give me the thickest board!” to be safe. But excess thickness causes real headaches:
It cracks when folded: Thick boards (over 24pt) often crack at the corners, revealing ugly white fibers.
It costs more to ship: Thicker material is heavier. If you ship thousands of units, those extra grams add up to thousands of dollars in freight.
It jams machines: If you use an automated packing line, standard machines might choke on extra-thick board.
Start with the standard recommendation for your weight class. Only upgrade thickness if your prototype fails the drop test in Step 8.
Step 6: Plan Printing, Branding, and Functional Features
Print quality sets professional packaging apart from amateur boxes. You need accurate colors and crisp text. Your features must work on production lines, not just in design files.
Choose the Right Print Method
Pick a method based on order size, quality needs, and budget:
Digital printing: Great for short runs (under 1,000 units). You pay low setup costs ($50-150) and get fast turnaround (3-5 days). However, per-unit costs run higher ($0.40-0.80). Use this for testing or limited editions.
Offset lithography: Saves money on 5,000+ units. Upfront plate costs run $200-400, but per-unit prices drop to $0.12-0.25. You get perfect color accuracy. Cosmetics and pharmaceuticals work efficiently here.
Flexographic printing: The standard for corrugated production. It works well for 10,000+ units ($0.08-0.15 per carton). It handles B-flute and E-flute. Detail is limited (150-175 LPI), so stick to bold logos.
Lock Down Brand Colors
Bad color matching hurts your brand. Stick to these standards:
Pantone spot colors: You get exact matches every run. Label colors as “Pantone 185 C” (coated) or “Pantone 185 U” (uncoated). Note that coated stock looks darker than uncoated.
CMYK equivalents: Good for digital printing, though less accurate than Pantone. Choose one system per job to stop color shifts.
RGB/Hex values: Designers use these on screens. But tell your printers to use Pantone or CMYK.
Define a color tolerance (Delta E). Pharmaceuticals generally need ΔE ≤ 2. Consumer goods can handle ΔE ≤ 4. This cuts waste and lowers costs by 8-12%.
Define Logo Rules
Vague rules cause mistakes. Be specific:
Minimum size: Use 20 mm wide for main spots; 8-10 mm for small panels. Check readability at actual size, not zoomed in.
Allowed positions: State “top-left corner” or “center-front” for main displays. Don’t leave placement to chance.
Clear space: Keep 1× the logo’s height clear around it. For instance, a 15 mm logo gets 15 mm clearance.
Color versions: Supply full-color and single-color (black/brand color) files. Include reversed versions (white on dark backgrounds) too.
Send logo files in vector format (EPS/PDF). JPG/PNG files look blocky when you resize them.
Design Readable Typography
Screen font rules don’t work on real cartons. Follow these guides:
Headlines (product names): Use 24-48 point. Go smaller for tiny boxes, larger for big ones. Add 10-20% letter spacing so shoppers can read it.
Subheads (benefits): Use 14-18 point. Set line spacing to 110-120% for easy reading.
Body text (ingredients/legal): Stick to 9-11 point minimum. Legal text may drop to 7 point if rules allow.
Limit yourself to 2 font families max (like Montserrat for headlines, Open Sans for body). Use 3 weights (regular, semibold, bold) to show hierarchy.
Add Functional Features
Your carton needs features that make it easy to use, not just branding:
Opening instructions: Print “OPEN HERE” arrows (8-10 mm) near flaps. High contrast (black on white) ensures visibility.
Orientation markers: Add “THIS SIDE UP” (12-14 point). Place arrows on two panels for warehouse staff.
QR codes: Size them 20×20 mm minimum. Add “SCAN FOR INFO” (10-12 point) and a fallback URL.
Batch codes: Save a 15×50 mm zone for lot numbers or expiration dates. Use OCR fonts (8-10 point) so machines can read them.
Give your folding carton suppliers a print-ready brief with methods, color specs, logo rules, and typography guides. This reduces revision rounds from 3-4 down to 1-2. You save weeks.
Step 7: Evaluate Manufacturing Efficiency and Cost
A folding carton that looks great but is hard to make will ruin your profits. Waste, downtime, and rework eat into margins. Focus on efficiency to keep costs low.
Key Manufacturing Metrics
Ask suppliers for these numbers to judge efficiency:
OEE (Overall Equipment Effectiveness): Measures how well machines perform. Industry average is 60-65%; top suppliers hit 85%+. Higher = more efficient.
Changeover time: Time to switch between jobs. Top packaging suppliers use techniques to cut this to under 10 minutes; old methods take 2-4 hours. Standard carton sizes reduce changeover time.
First Pass Yield (FPY): Percent of cartons that pass quality checks first time. Target ≥95% (premium packaging needs 98-99%).
Scrap rate: Percent of defective cartons. Target ≤2% – higher means wasted material and labor.
Break Down Costs
Total custom packaging manufacturing cost should be under 65% of your product’s retail price. Costs fall into three categories:
Materials (50-75% of COGS): Includes board, inks, glue, and extras like windows. For a $2 retail folding carton, materials should be $0.30-0.55 per unit at volume.
Labor (20-35% of COGS): Automated lines cut labor to 18-22%; manual operations hit 30-40%.
Overhead (15-25%): Covers machinery, utilities, and facilities.
Optimize Production Cost
Calculate cost per unit for each design: (Material + Labor + Overhead) ÷ Quantity. Example: 10,000 units with $3,500 in materials, $1,200 in tooling, $1,000 in labor, and $300 in overhead = $0.60 per unit.
Cut costs by simplifying designs. Removing a window might save $0.08 per unit – $4,000 annually for 50,000 units. Avoid features that cause machine jams or need manual work (each 30-minute downtime costs $200-400).
Step 8: Prototype Testing and Validation
3D renders can be deceiving. A carton that looks flawless on a retina screen might jam production lines or collapse in a hot delivery truck. Prototyping is your insurance policy—it catches expensive mistakes when they are still cheap to fix (paper is cheap; re-tooling machines is not).
Choose the Right Prototype
You don’t always need a perfect print sample immediately. Save money by ordering the right fidelity for the right test:
- The Structural Sample (White Dummy): Unprinted, CAD-cut board. Use this first to check sizing, locking mechanisms, and drop resistance. ($0 – $50 cost usually).
- The Production Proof (High-Fidelity): Final materials, actual varnish, correct glue. Use this for color sign-off and final “unboxing” feel. ($$$ cost).
Run These 4 Critical Tests
Once you have your physical sample (filled with your actual product!), put it through hell. If it survives these four tests, it’s ready for mass production.
1. The Net Weight & Volume Check
Weigh your filled sample. This isn’t just about fit—it’s about compliance. In many regions, no single package can be more than 15-25% larger than the product volume (slack fill laws). If your carton is huge but your product is tiny, you risk lawsuits. If it’s too tight (-0mm clearance), you risk tearing flaps during assembly.
2. The Drop Test (Impact Resistance)
Simulate the fall from a delivery van or sorting belt. Drop your filled prototype on a hard concrete floor. Use these industry standards based on weight:
- Under 1 kg: Drop from 0.8 meters (waist height).
- 1 kg – 5 kg: Drop from 1.0 meter (counter height).
- Over 5 kg: Drop from 1.2 meters (chest height).
Pass Condition: The folding carton corners may dent, but the product inside must be functional, and the box seams/glue flaps must not split open.
3. The Static Load Test (Stacking Strength)
Warehouses don’t treat folding cartons gently. To test vertical strength, stack 4 to 6 filled cartons on top of your test unit. Leave them for 24 to 48 hours.
Pass Condition: If the bottom carton bulges or buckles more than 3-5mm, the structure is too weak. You need to revisit Step 5 and upgrade to a thicker board or stronger corrugated flute.
4. The “Real World” Environment Test
If you ship food, cosmetics, or electronics, humidity is an enemy. Place a filled sample in a warm, humid room (ideally 35°C / 80% humidity) for 24 hours. Standard glue can pop open in these conditions, and paperboard can turn soggy.
Pass Condition: The glue bond must hold firm, and the board should not warp significantly.
Document the Results
Take photos of the “failures” (crushed corners, popped glue valves). Send these to your supplier with specific notes like “Reinforce bottom flap glue” or “Upgrade from 18pt to 24pt board.” Only sign the production contract when your prototype passes all four tests.
Conclusion: Turn These Specs Into Reality with CNNBox
Packaging does more than guard your product; it’s the physical voice of your brand. We’ve covered a lot of ground—from picking the right board grade to surviving the drop test. But knowing what you need is only half the battle. You still need a packaging partner who can actually build it.
This is where CNNBox steps in.
You don’t need to navigate the maze of die-lines, glue flaps, and print finishes alone. Whether you need the premium feel of SBS paperboard or the rugged protection of corrugated stock, CNNBox translates your vision into a shelf-ready reality.
Why struggle with the technical details?
- Expert Engineering: We verify your structure (Step 3) so you don’t face surprises.
- Cost Efficiency: We optimize layouts (Step 7) to keep your unit costs down.
- Quality Assurance: We handle the printing precision (Step 6) so your brand looks flawless.
Your product deserves a packaging box that looks as good as it performs. Don’t leave your “first impression” to chance.
Explore CNNBox’s Folding Carton Solutions today and let’s start building your prototype.
