Selecting the correct corrugated box for shipping is a strategic decision. The style of the box dictates the safety of your product. It determines the speed of your packing line. It influences your shipping rates.
Many businesses assume all brown boxes are the same. They are not. The packaging industry categorizes boxes into distinct styles. Each style solves a specific problem. Some resist crushing forces. Others prioritize display visibility. Some lock automatically to save labor. This guide analyzes the specific architecture of these box styles, exploring standard slotted containers, telescopic designs, rigid boxes, and self-locking die-cuts.
Slotted Box Styles
Slotted boxes are the workhorses of the logistics world. Manufacturers produce these from a single piece of corrugated fiberboard. The machine cuts slots and scores the board to create flaps. You ship and store them flat. This efficiency makes them the most economical option for high-volume shipping.

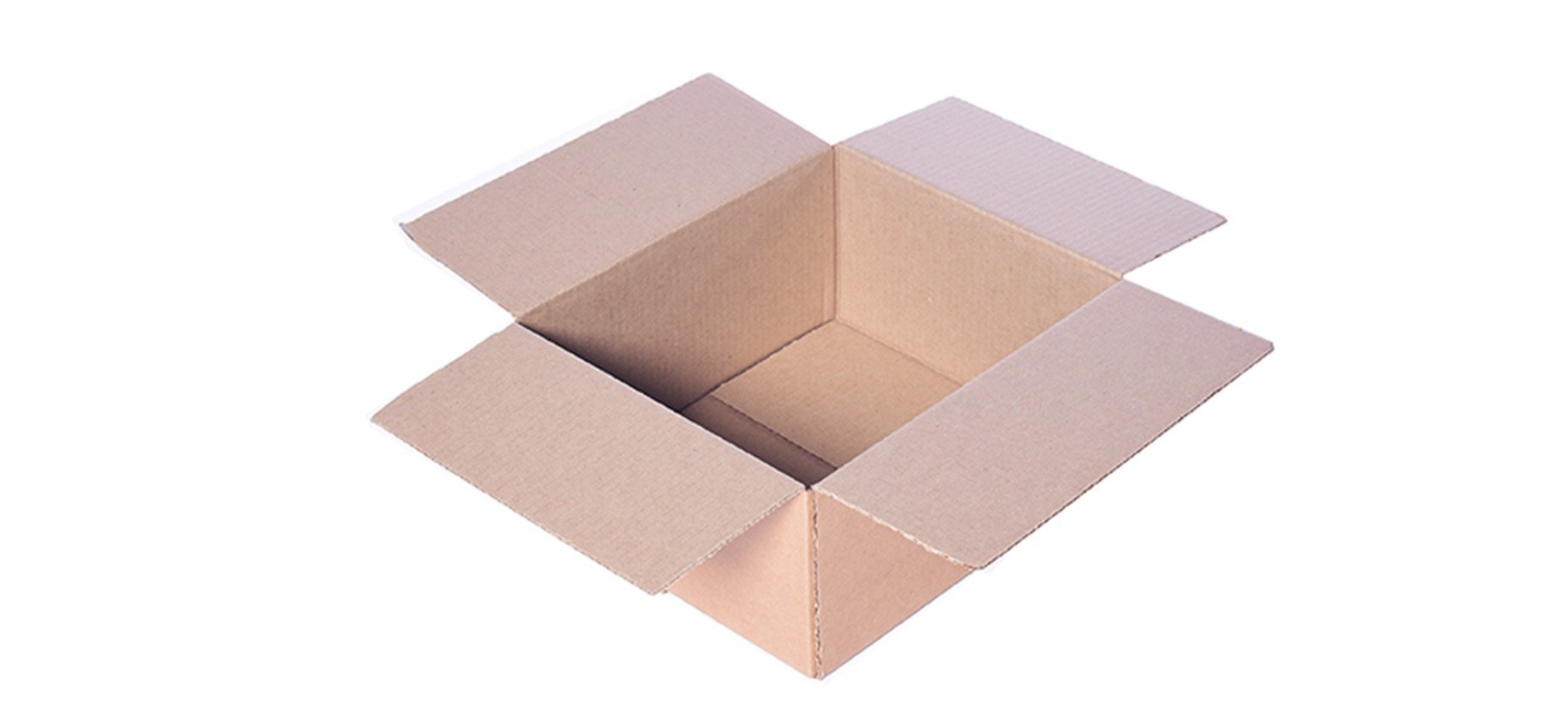

Regular Slotted Container (RSC)
The Regular Slotted Container is the most produced box type globally. You likely handle one every day. The design is simple. All flaps on the box have the same length. The two outer flaps meet perfectly in the center of the box. The two inner flaps do not meet. This leaves a gap in the middle of the floor and ceiling.
This style suits almost any standard product. It works for electronics, books, dry goods, and industrial parts. It is the default choice for shipping because the manufacturing process produces very little scrap. This keeps costs down. It is also versatile. You can seal it with tape, glue, or staples. However, the gap between the inner flaps creates an uneven bottom. This often requires a pad for stability. While it offers standard protection, it lacks reinforcement for heavy loads.

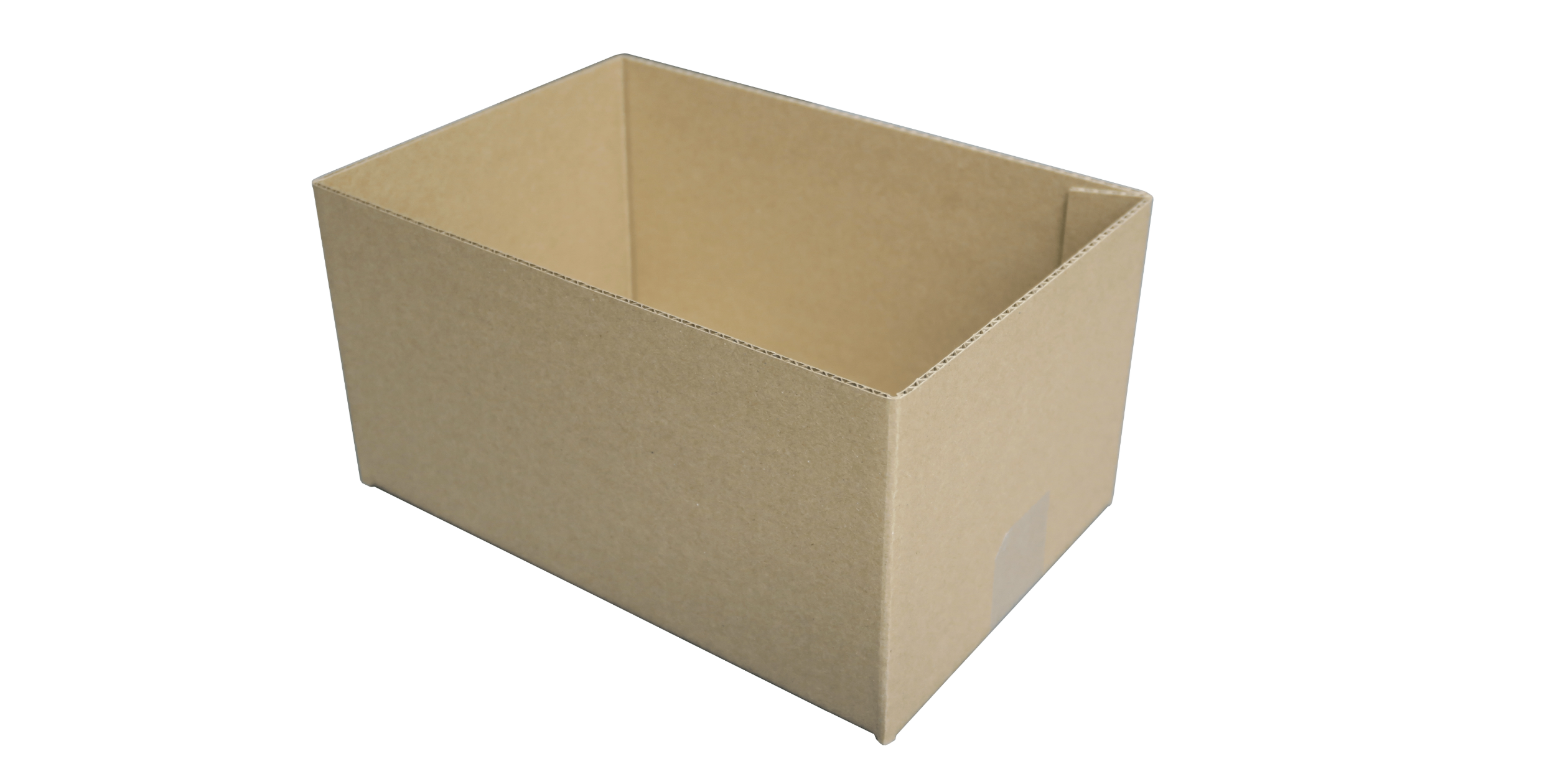

Half Slotted Container (HSC)
The Half Slotted Container is essentially an RSC without the top flaps. The bottom resembles a standard RSC with meeting flaps, but the top is completely open. It acts as a rigid bin.
Warehouses use HSCs for shelf organization. They work well for transporting goods that require immediate access. Pickers grab items faster without fighting flaps. You can see the contents immediately. While the open top offers no protection from above, you can add a separate design-style tray as a lid. Without a lid or solid contents, stacking them is difficult.

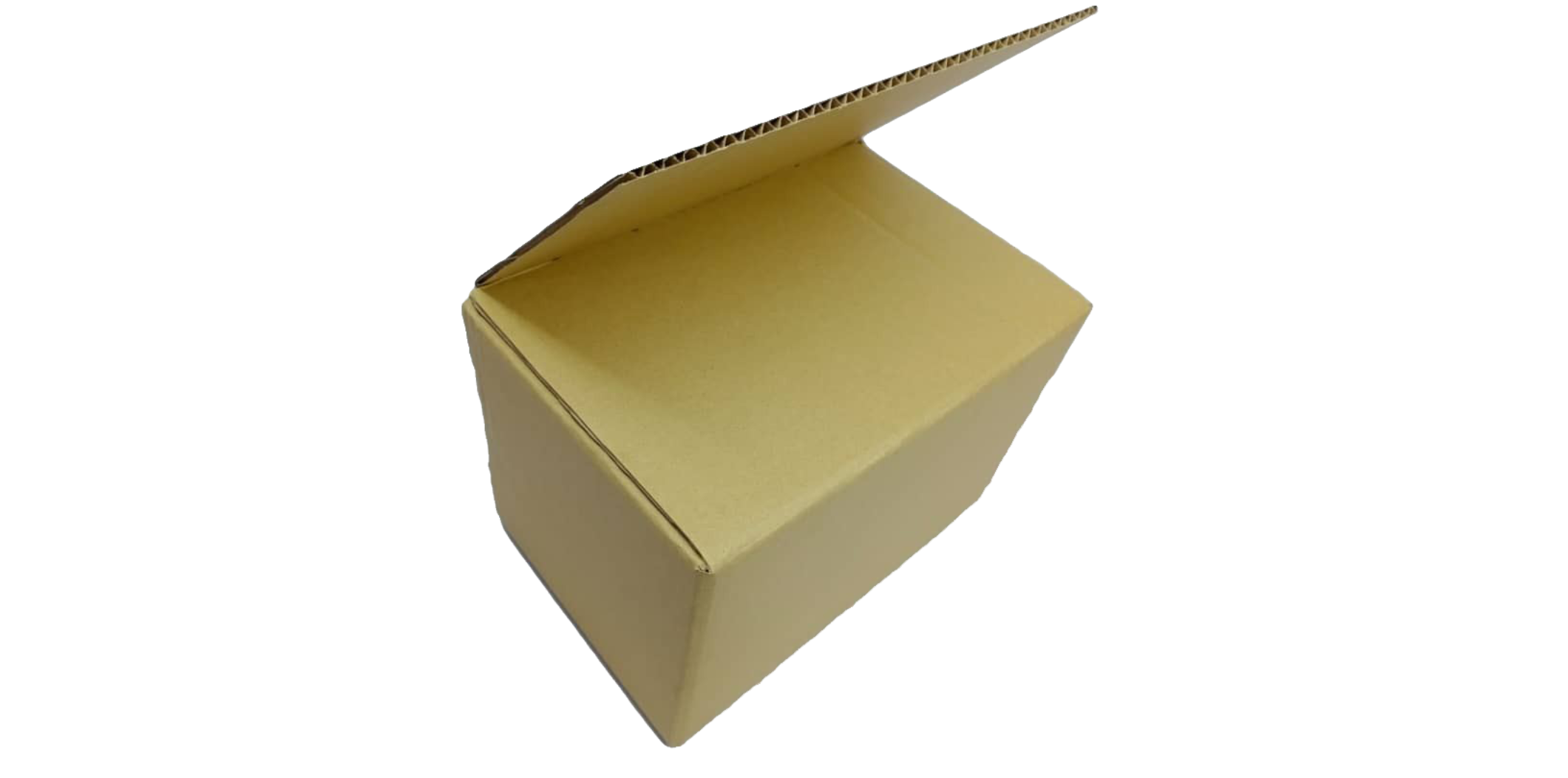

Full Overlap Slotted Container (FOL)
The Full Overlap Slotted Container prioritizes strength over material savings. All flaps have the same length, equaling the full width of the box. The outer flaps overlap each other completely. When closed, the top and bottom of the box have two full layers of corrugated board.
Use this for heavy items like appliances, metal parts, or products prone to breaking through the bottom. The double layers on top and bottom absorb impact and resist crushing. The flaps also create a smooth floor with no gap. It stays rigid even when stacked on its side. The trade-off is material cost. It requires significantly more board than an RSC. Stapling through four layers of board also requires heavy-duty equipment.

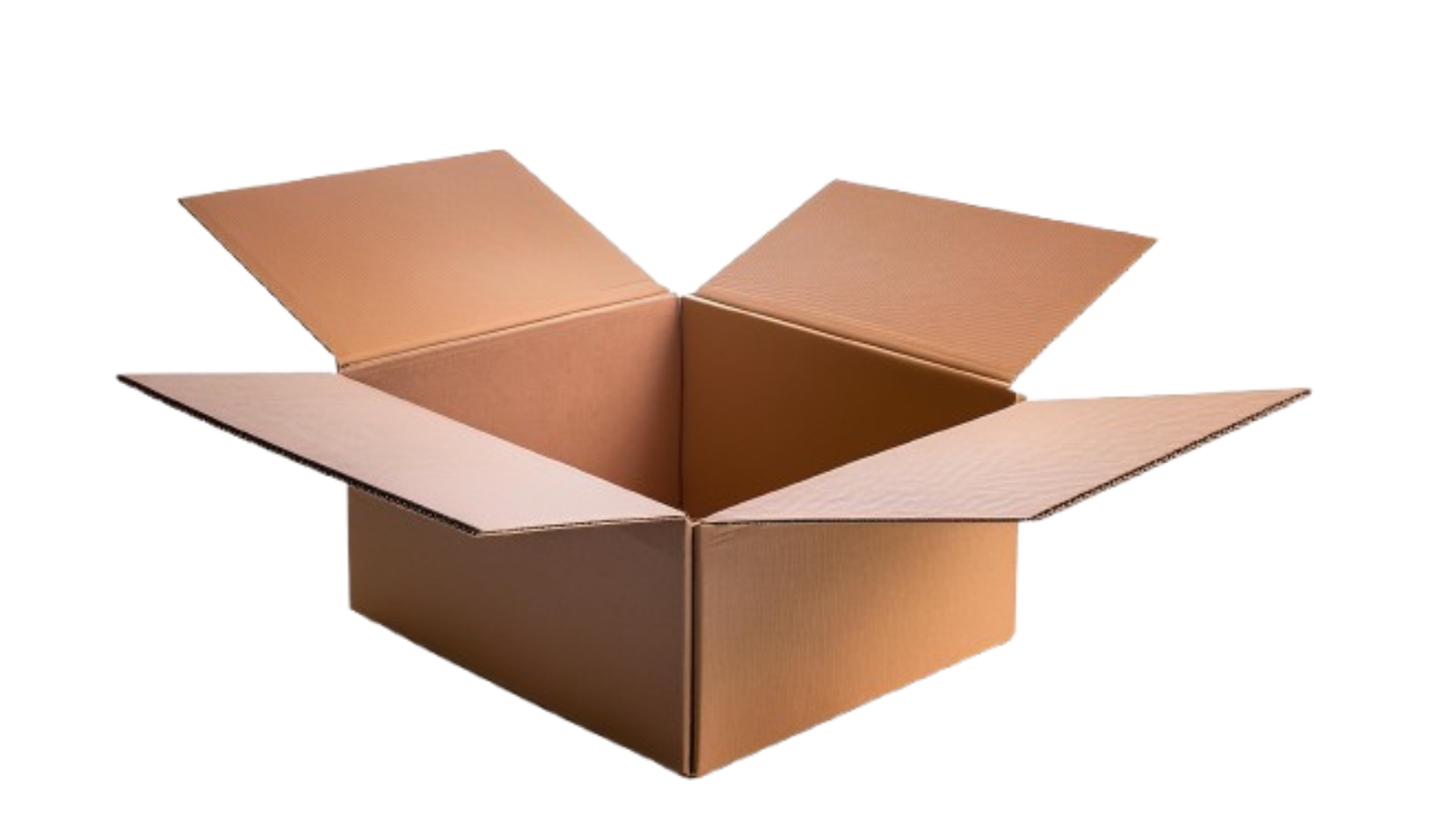

Overlap Slotted Container (OSC)
The Overlap Slotted Container is a variation of the RSC where the outer flaps overlap by a specific amount, usually one to three inches. They do not overlap completely like the FOL.
This style fits long, narrow boxes. In an RSC of this shape, the long flaps would overlap awkwardly. The OSC corrects this. It is also used when you must staple the flaps shut. The overlap provides the necessary space for staples and prevents the flaps from pulling apart during rough transit. It is rarely needed for square or standard boxes.

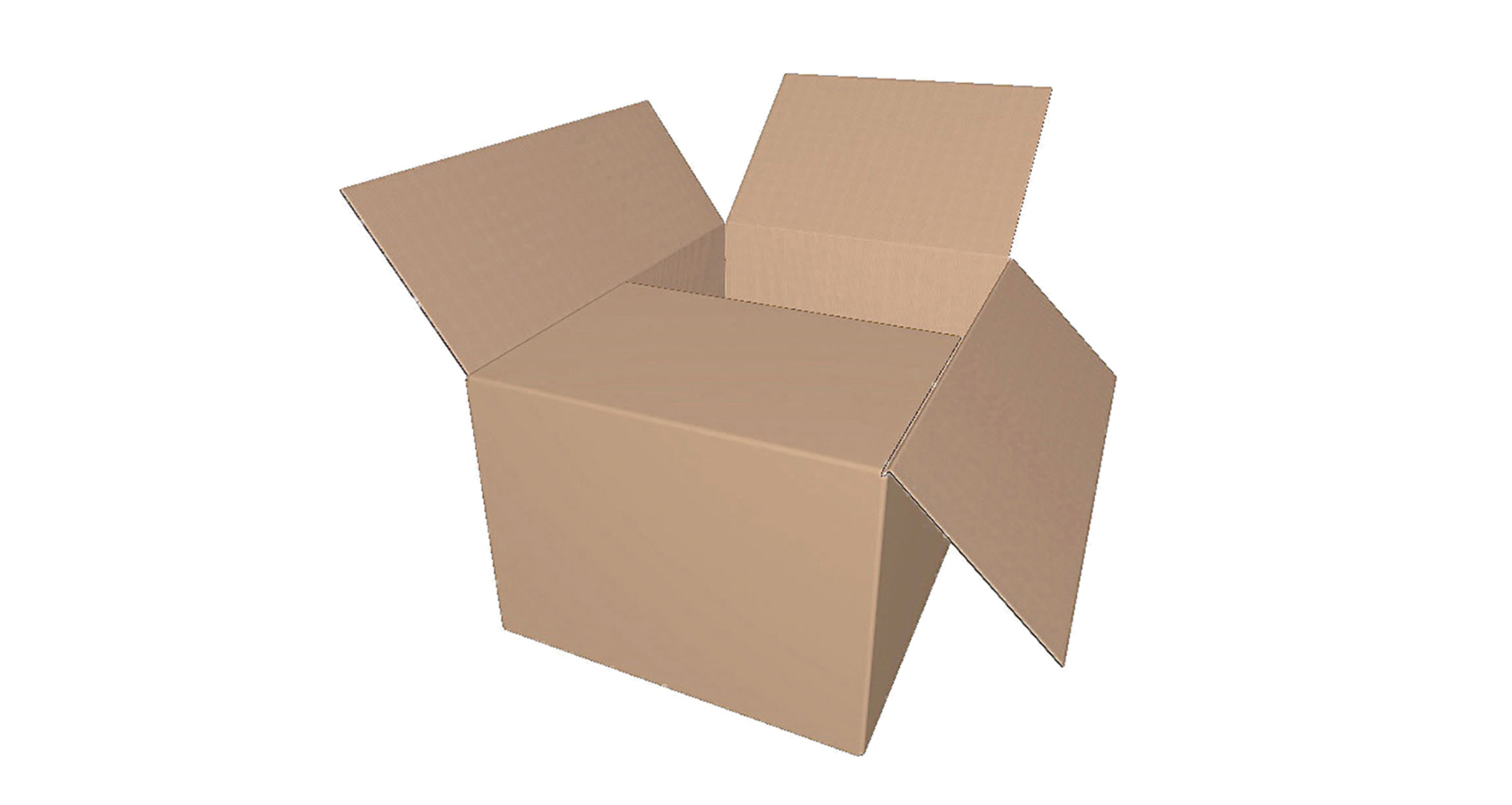

Center Special Slotted Container (CSSC)
The CSSC offers a robust, double-layered floor and ceiling similar to the FOL but with a different flap cut. The inner and outer flaps have different lengths. They are cut so they meet perfectly in the center. This creates a double layer of protection across the entire top and bottom area.
This box protects valuable or heavy items that need a flat base. The double thickness is consistent across the entire top and bottom, providing excellent support. However, it uses extra material and often requires a custom setup to manufacture, making it a more expensive option.
Telescope Box Styles
Telescope boxes consist of two pieces: a lid and a bottom body. The lid slides over the body. This structure creates superior stacking strength because the vertical walls are double-thick.

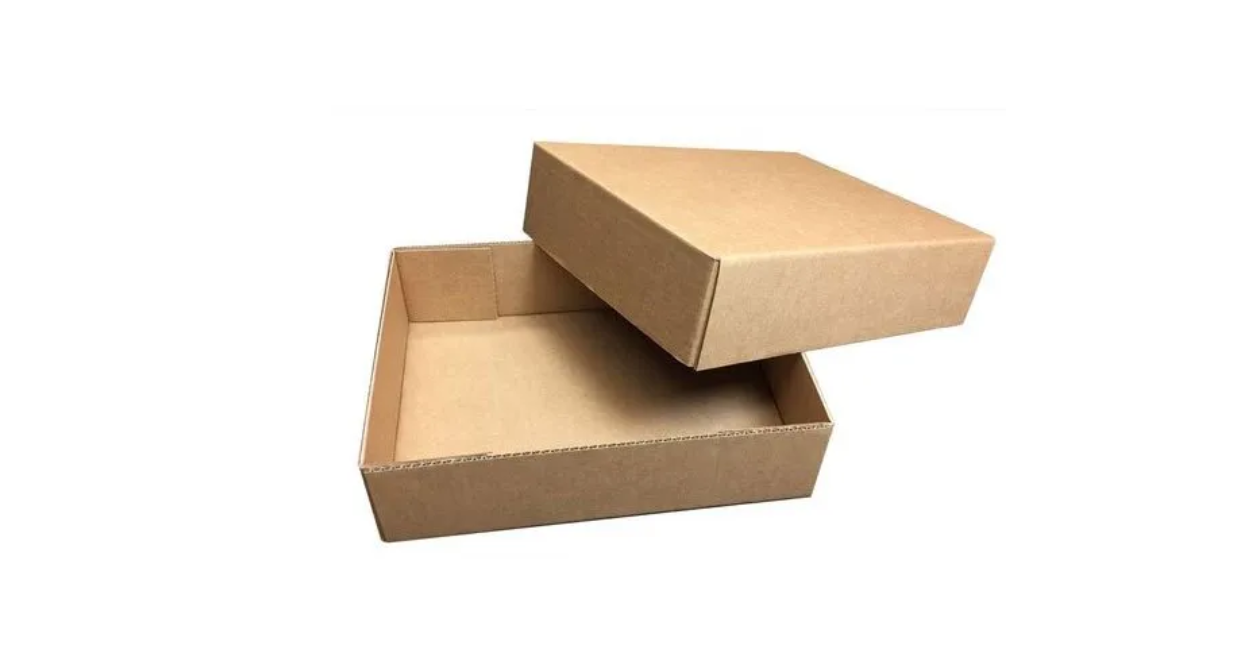

Full Telescope Design (FTD)
The Full Telescope Design represents the strongest standard style for stacking. The cover extends the full depth of the container body, covering the sides completely.
Agriculture relies on FTDs for fresh fruit and vegetables. Paper manufacturers use them for heavy reams of paper. The double walls prevent the sides from bowing out and withstand massive overhead weight. The two-part design is durable and easy to open and close repeatedly. However, you essentially pay for two boxes to make one. It usually ships as two flat sheets, requiring you to assemble both the lid and bottom.
Design Style Tray (DST) with Cover
This is a rigid variant of the telescope box. The corners are usually glued or stapled at the manufacturer. It does not rely on flaps. It is a solid tray.
Retail environments use DSTs for display. It works for storage bins and heavy consumer goods. It looks cleaner than a slotted box and is rigid immediately upon unpacking. The main drawback is storage space. It does not ship flat unless designed with folding tabs, consuming valuable warehouse volume.

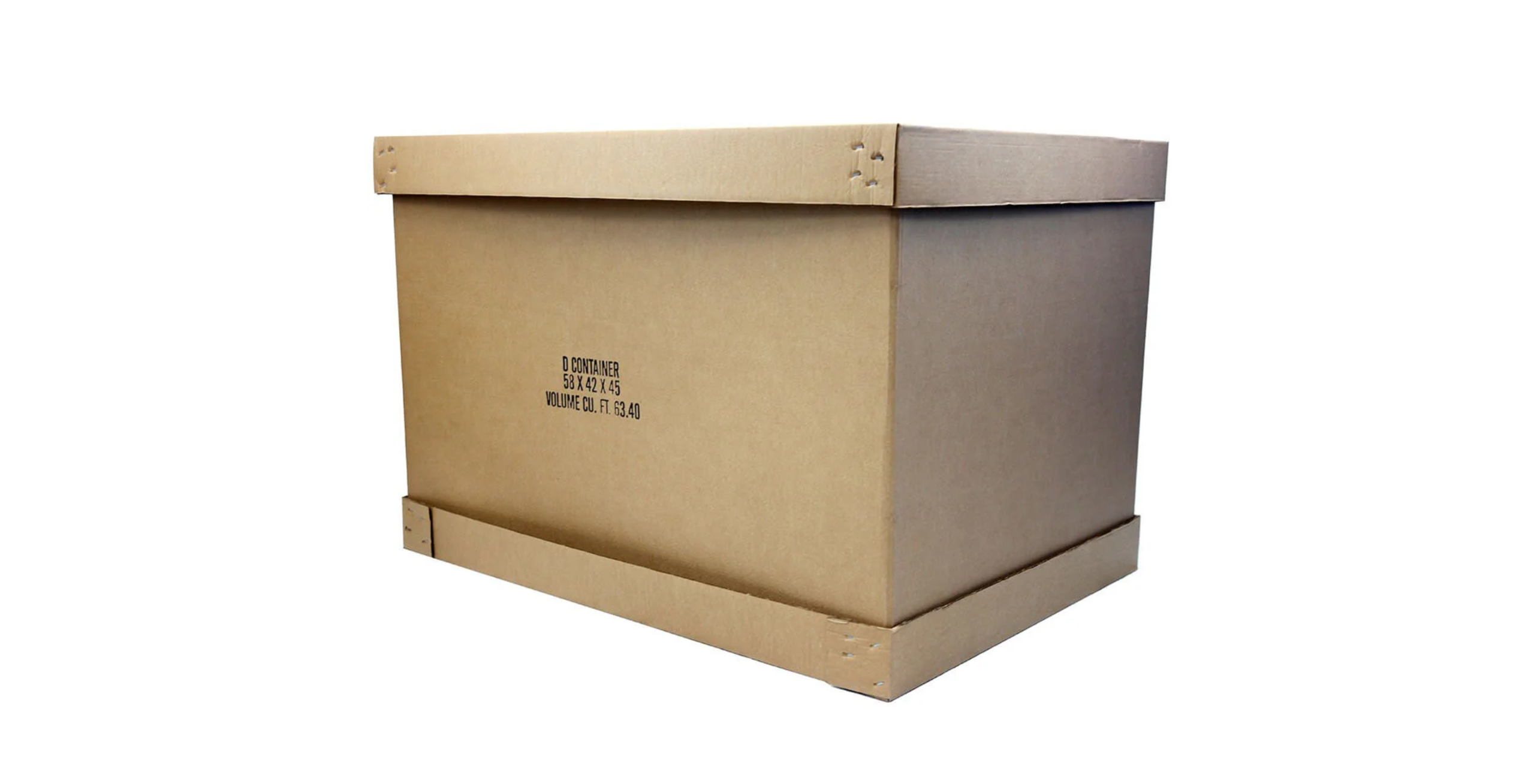

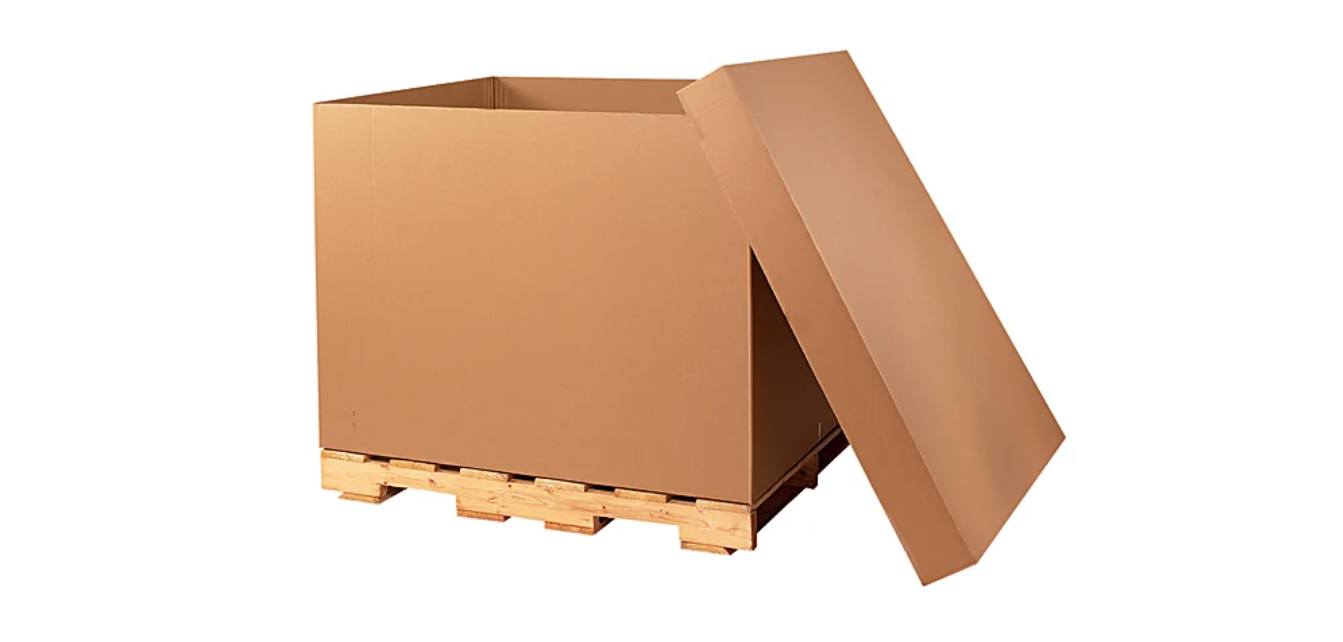

Double Cover Container (DC)
The Double Cover Container is a three-piece system with a tube body and two interchangeable covers for the top and bottom.
This style suits tall, heavy, or awkward items like machinery or granular materials. You place the product on the bottom lid, slide the tube over it, and then cap it. You do not need to lift a heavy item into a box. You can also cut the tube to any height. However, you must track three separate inventory pieces and usually need straps to keep the lids secured to the body.
Folder Styles
Folders are one-piece boards with an unbroken bottom. You place the product on the flat board and fold the sides around it. These styles excel for products with shallow depths or irregular shapes.
One Piece Folder (OPF)
The OPF is the standard container for mailing books and media. The board is cut to the specific footprint of the product. The flaps fold up and meet on the top, with the ends usually tucking in.
E-Commerce companies use OPFs for books, video games, albums, and framed art. It creates a tight package, eliminating product movement. It uses less board than a standard box for flat items, and packers can fold and seal these rapidly. However, it does not work well for tall or bulky items.

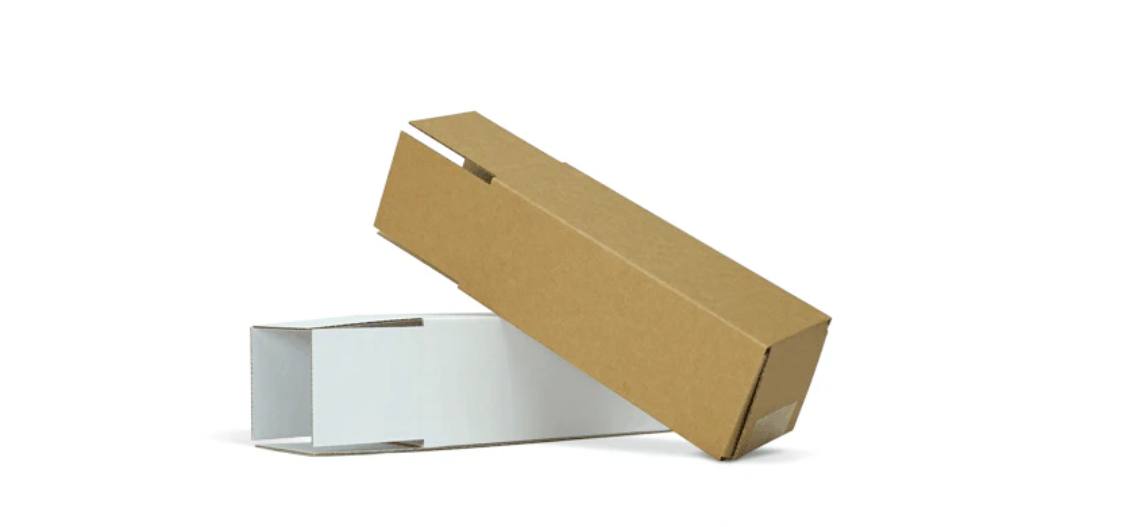

Five Panel Folder (FPF)
The Five Panel Folder acts like a wrapper. It consists of a single cut and scored sheet with five main panels. You roll the box around the product. The fifth panel overlaps the first panel completely. The ends have flaps that tuck or tape shut.
This is the only choice for long, narrow items like golf clubs, fishing rods, umbrellas, metal pipes, and flooring samples. The folding method creates multiple layers of board at the ends. This prevents heavy rods from poking through. The long shape also stacks well on pallets. Assembly can be awkward, and opening it usually destroys the box.

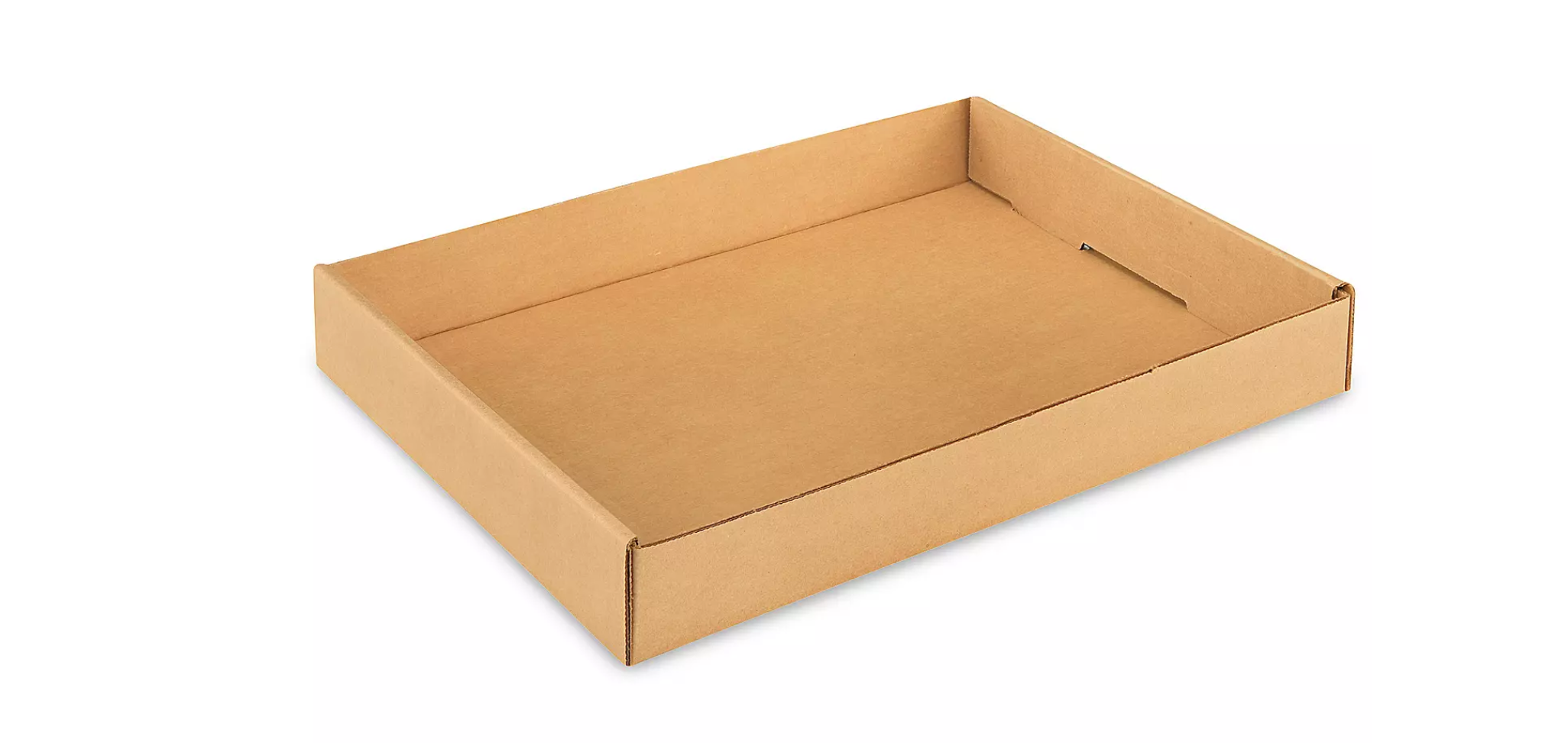

Trays
Trays are open-top folders. A flat sheet folds up to create low sides. It usually has a locking tab or requires glue.
Food and beverage industries use corrgated trays to hold cans, bottles, or jars. They are often shrink-wrapped. Consumers see the product immediately. It keeps round items from rolling during transport and uses minimal material. However, it offers no top protection, relying on the product’s own packaging or shrink wrap.

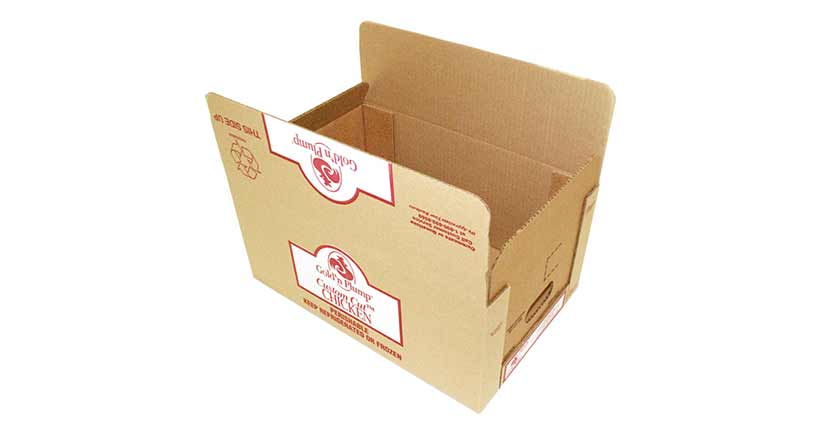

Rigid Boxes (Bliss Boxes)
Bliss boxes differ fundamentally from slotted boxes. They are not one piece. They use three separate pieces of board: two end panels and one body sheet. A machine at the packing facility folds the body sheet around the end panels and glues them. This creates a rigid container.
The meat, poultry, and fresh produce industries rely on Bliss boxes. They are also standard for shipping heavy bulk items like detergents or motor oil. The glued corners are incredibly rigid and do not collapse. You can optimize cost by using different board grades, such as a strong board for the corners and a lighter board for the body. They offer superior stacking performance compared to RSCs. However, you need a Bliss machine on-site to form the boxes. This requires capital investment and floor space. You also cannot easily change box sizes without adjusting the machine.
Slide-Type Boxes
Slide boxes consist of two pieces: a sleeve and a tray. The inner tray holds the product, and the outer sleeve slides over the tray.
This style is popular for high-end retail, gift sets, and electronics. The sliding action feels premium. The double wall structure protects delicate items, and customers often keep these boxes for storage. Manufacturing two separate pieces is expensive, and packers must insert the tray into the sleeve manually.
Die-Cut Self-Locking Boxes
Die-cut boxes offer the highest level of customization. Manufacturers use a steel rule die to cut intricate shapes. These boxes often fold together without tape. They look professional and polish your brand image.

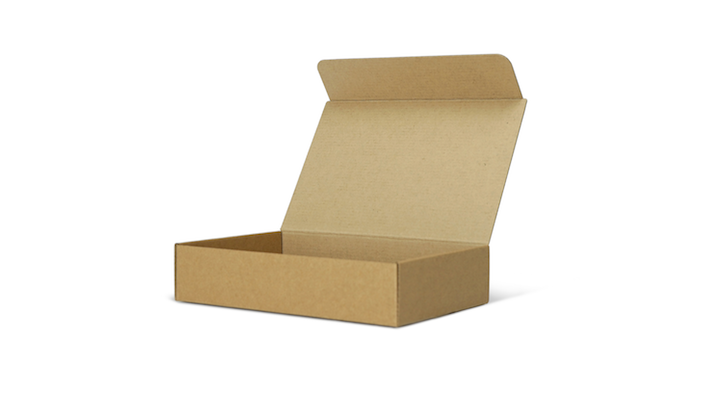

Roll End Tuck Top (RETT)
The RETT is the definitive “subscription box” style. The front flap tucks inside the top of the box. The side walls have three layers of board. The lid is attached to the back panel.
Direct-to-consumer brands use RETT boxes for cosmetics, clothing, and food kits. The clean lines and lack of tape look professional. The multi-layered walls are very strong. The tuck closure stays shut, though a wafer seal is recommended for shipping. Folding the box takes longer than setting up an RSC, and the die-cutting process adds to the unit price.

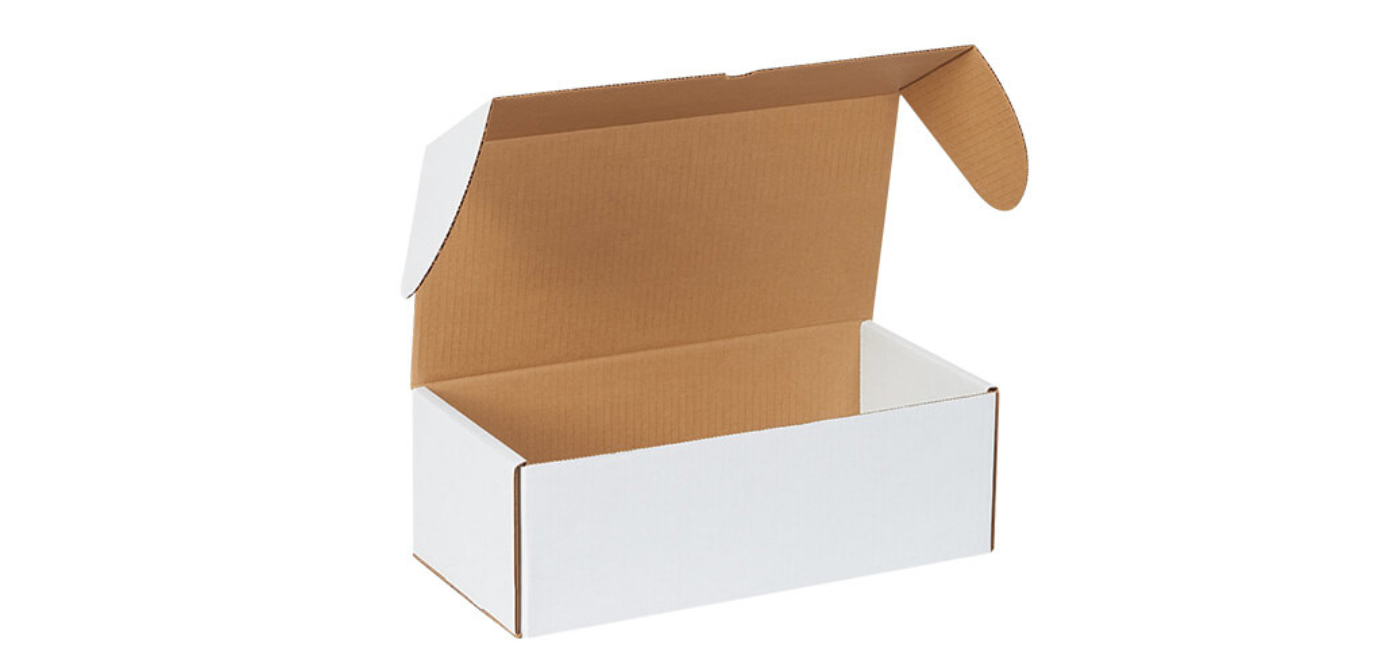

Roll End Tuck Front (RETF)
This is a variation of the RETT where the lid has “cherry locks” or tabs that insert into the front wall of the base. It is used for heavy retail items like power tools or small kitchen appliances. The cherry locks prevent the lid from popping open, offering strength that rivals the RETT. However, engaging the locks adds a step to the packing process.
Snap Lock Bottom (1-2-3 Bottom)
This style solves the problem of bottom taping. The top flaps are standard, but the bottom flaps are die-cut into specific interlocking shapes. You fold the large panel, then the two side panels, and finally push the locking tab into place.
Small consumer electronics, beauty products, and jars often use this style. The bottom holds weight without tape. It assembles faster than an RSC bottom and is cheaper than an auto-bottom box. However, it cannot support extremely heavy loads as the bottom may pop out. It still requires manual folding.

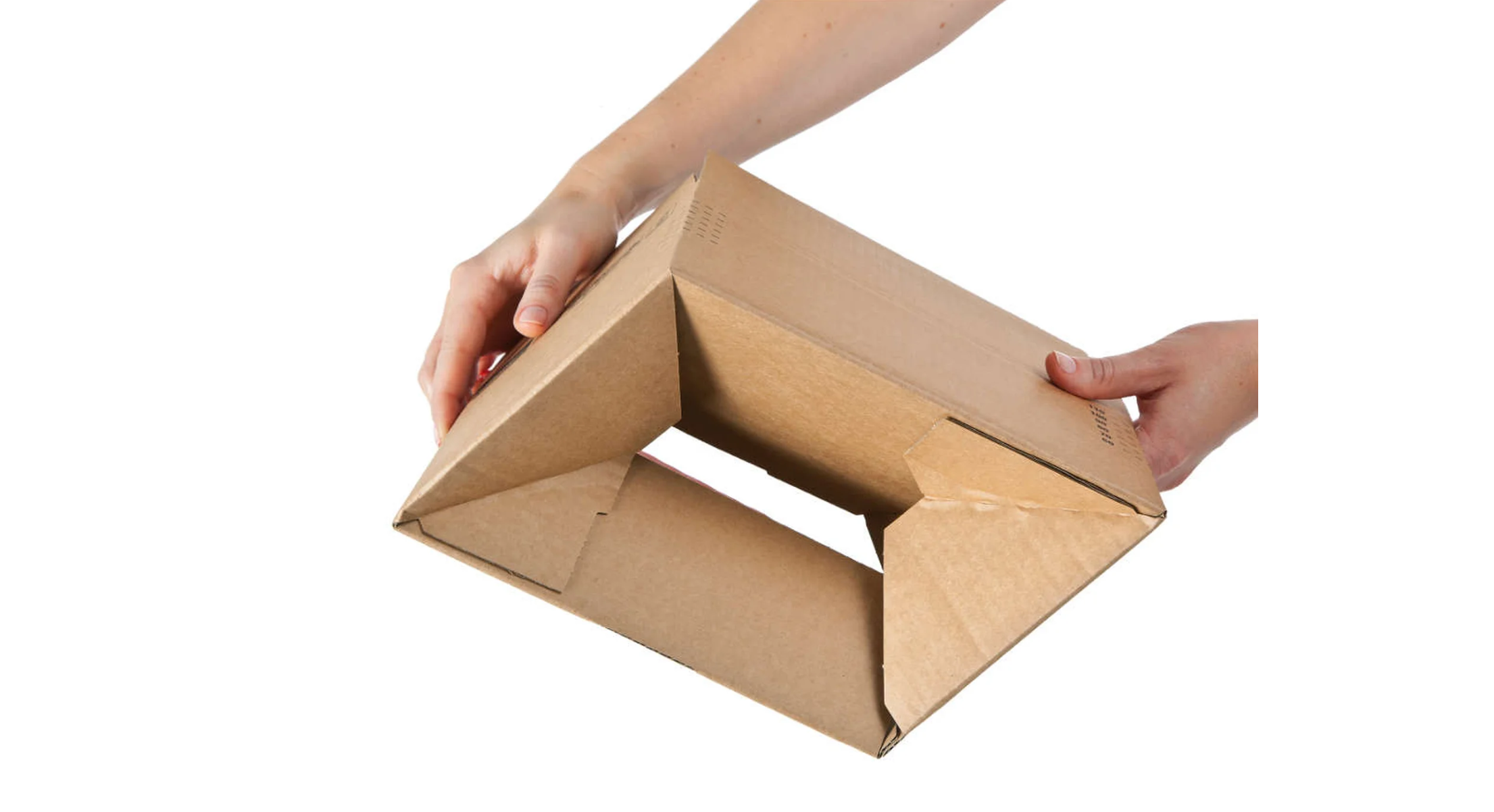

Auto-Lock Bottom (Crash Bottom)
The Auto-Lock Bottom is the speed king of manual assembly. The manufacturer pre-glues the bottom flaps. The box ships flat. When the packer pushes the sides of the box, the bottom flaps snap into place instantly.
High-volume fulfillment centers use this style. If you pack thousands of orders a day, the time savings are massive. It assembles in less than a second. The glued bottom is secure. This comes at a price, as it is the most expensive style to manufacture. The folded flaps on the bottom also create slight unevenness inside.
Selecting Your Box Style
Choosing between these styles requires an analysis of your specific logistics chain.
For pure utility, stick to the Regular Slotted Container. It offers the best balance of protection and price. If you ship long items, switch to the Five Panel Folder. For heavy loads, upgrade to the Full Overlap or a Bliss Box. The extra material prevents bottom failure and crushing.
If branding and experience are paramount, invest in Roll End Tuck Top boxes. The presentation value justifies the higher cost per unit. For operational speed where labor is the bottleneck, the Auto-Lock Bottom pays for itself. The higher material cost is offset by the reduction in packing time. Finally, for shelf display, use Half Slotted Containers or Trays. They move from the truck to the shelf with zero unpacking required.
Understanding these styles gives you control. You stop buying generic packaging and start engineering a packaging solution that fits your product, your budget, and your brand.
