Recall the last time you bought a small item, like a phone charger. Did it arrive inside a shoebox-sized shipping box? That waste annoys customers. It also kills profits.
Brands often treat the box as an afterthought. But carriers charge for size, not just weight. Sending “air” costs cash. A box two inches too big can raise rates by 20%. Smart packaging is a financial strategy. Stop paying for empty space. Let’s pick the right container for your business.

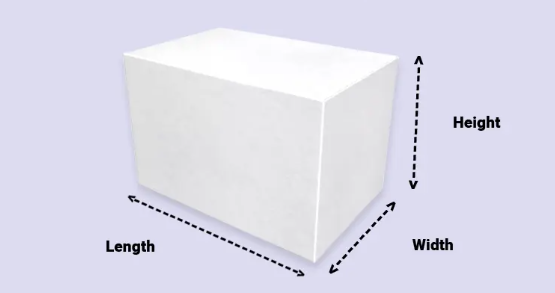

Measure Your Product Dimensions
Good product measurement is the base for picking the right shipping box. Get the dimensions wrong, and you’ll end up with boxes too small for your items or too big, wasting materials and driving up shipping costs.
Follow the Standard Measurement Order
Measure in this order: Length × Width × Height (L × W × H). Length is the longest horizontal edge you see from the front. Width is the shorter horizontal edge. Height is the vertical distance from bottom to top. Stick to one measurement system throughout—all millimeters/centimeters or all inches/feet. Don’t mix them.
Set Your Measurement Reference Point
Find your product’s default front or natural base. Face the default front and measure:
Height (H): Maximum distance from bottom to top
Width (W): Maximum distance from left to right
Depth (D): Maximum distance from front to back
Measure the maximum outer dimensions. Include bottle caps, handles, ears, flip lids, and bundled accessories.
Use Industry-Standard Precision
Linear dimensions go up to 3 decimal places. Rounding rules change by unit:
Millimeters: Round up to the nearest whole number (99.3 mm becomes 100 mm)
Centimeters: Round up to 1 decimal place (check your trading partner’s requirements)
Inches: Round up to 1/8″ or 1/16″ increments
Switch between systems with these formulas: 1 inch = 25.4 mm and 1 mm = 0.03937 inch.
Measure Multiple Samples
One measurement isn’t enough. GS1 standards say to measure at least 3 samples of the same product. This gives you true dimensions. Take the maximum value or use a statistical method (average plus safety margin). This ensures all production variations fit.
Add 1-2 Inches of Cushioning Space
Add 1-2 inches (25-50 mm) to each dimension beyond your product’s exact size. This covers:
- Measurement errors and production tolerances
- Protective packaging materials (bubble wrap, foam corners, paper padding)
- Packing variations and product compression (soft goods need this)
Irregular or fragile items need at least 50 mm cushioning on the longest side. Use reinforced foam or corner protectors.
Know the Cost of Wrong Measurements
Bad measurements hurt your profit. Carriers use dimensional weight (volumetric weight) to calculate shipping fees: L × W × H ÷ 5000 for air freight or ÷ 6000 for some carriers (dimensions in cm, weight in kg). Too-big boxes increase your dimensional weight. This means higher shipping charges. Too-small measurements mess up warehouse space planning. You’ll face expensive inventory reorganization and manual handling. Wrong dimensions also cause packaging returns and material waste. Boxes that don’t fit as planned create real problems.
Select Appropriate Box Material and Strength
Box material decides whether your product survives the journey. You generally have two choices: corrugated fiberboard or chipboard. Each handles stress differently.
Corrugated vs. Chipboard: The Protection Difference
Corrugated cardboard is built like a sandwich. It has a wavy “flute” layer glued between two flat liners. Think of those flutes as built-in shock absorbers. The air pockets inside absorb impact from drops and provide the structural muscle needed for stacking on pallets. This is your go-to for shipping cartons and heavy items.
Chipboard (or paperboard) skips the wavy layer. It’s simply dense, compressed paper stock—like a cereal box. While it lacks cushioning power, it offers a smoother surface for high-quality printing and takes up less shelf space. It’s perfect for retail packaging that sits inside a shipping box, but it shouldn’t be your main defense against a delivery truck.
Decoding Strength Ratings: ECT vs. Mullen
When you pick corrugated boxes, you’ll see two different strength stamps. Here is how to pick the right one:
ECT (Edge Crush Test) – For Stacking
This tells you how much weight a box can hold before the walls buckle. If you stack pallets in a warehouse or ship heavy loads that sit on top of each other, look for ECT ratings.
32 ECT: The industry standard. Good for loads up to 65 lbs.
44 ECT: Heavy-duty single wall. Handles up to 95 lbs.
48 ECT (Double Wall): For heavy items (100+ lbs) needing extra rigidity.
Mullen Burst Test – For Rough Handling
This measures puncture resistance. If your corrgated box is shipping individually (like via UPS or FedEx) and might get tossed around, hit by sharp corners, or handled roughly, Mullen matters more.
200# Test: Standard protection. Equivalent to 32 ECT but focused on tear resistance.
275# Test: Stronger protection for heavier or valuable items.
Choose the Right Box Type for Your Products
Once you know your material, pick the style that fits your brand and budget. Most businesses rely on three main categories.
Folding Cartons (Retail Efficiency)
These are your standard lightweight retail boxes—think medicine, cosmetics, or food packaging. Because they are made of chipboard, they are thin and fold flat.
Why use them? They are a marketer’s dream. The smooth surface handles high-resolution printing beautifully, making colors pop on the shelf. They are cheap to produce in bulk and occupy minimal warehouse space. Just remember: these are for display, not delivery. You always need an outer shipper.
Corrugated Boxes (Shipping Workhorses)
This is what lands on your doorstep. They come in three strength tiers:
Single-wall boxes: Your standard e-commerce box. Fine for clothes, books, and most consumer goods.
Double-wall boxes: Two layers of fluting. Use this for heavy electronics, industrial parts, or fragile items that need zero flex.
Triple-wall boxes: The beast of boxes. Can hold up to 300 lbs. Often replaces wooden crates for machinery parts.
Rigid Boxes (The Luxury Experience)
Used for iPhones, jewelry, and high-end gifts. These are made of extra-thick chipboard (4x thicker than a folding carton) and often wrapped in premium paper or fabric.
The trade-off? They don’t fold. They ship fully assembled, which eats up warehouse space and drives up shipping costs. But for luxury brands, the unboxing experience—that distinct “air suction” sound when opening the lid—is worth the premium price tag.
Optimize Box Size to Reduce Shipping Costs
Shipping carriers don’t just weigh your package—they measure it too. The bigger number between actual weight and dimensional weight (DIM weight) determines your final shipping charge. An oversized box costs you money even when it’s almost empty.
How Dimensional Weight Pricing Works
Carriers calculate DIM weight by dividing your box volume by a standard divisor (139 for domestic shipments). Here’s the reality: a 12″ × 12″ × 12″ shipping box creates 1,728 cubic inches of volume. That equals 13 pounds of DIM weight. Your actual product weighs just 7 pounds? You still pay the 13-pound shipping rate. The wasted 6 pounds of air inside your box becomes a direct cost.
This pricing gap adds up fast. Ship 100 oversized boxes each day at an extra $5 per package. That’s $500 wasted every business day. Times 255 annual shipping days means you’re throwing away $127,500 per year. These are real dollars lost to DIM weight charges you could avoid.
Right-Sizing Delivers Real Savings
Use the smallest shipping box that protects your contents. Add your required 1-2 inches of cushioning space, then stop. Don’t grab the next size up “just to be safe.”
Smart warehouses keep a strategic carton inventory. They stock 3-5 box sizes larger than their average order and 3-5 sizes smaller. This range handles unusual orders without forcing every shipment into oversized containers. A technology warehouse processing 154,000 annual orders kept just 9 carton sizes. They adjusted each size’s dimensions. Result? Shipping costs dropped 5.77%. No additional boxes needed. Just smarter sizing.
DHL’s carton set program shows similar results across e-commerce warehouses: 5-7% annual shipping cost reduction. Companies using Packsize automated systems report 5% average shipping savings and a 26% reduction in billable weight. The money you save shows up within months.
Automation Removes Guesswork
Cartonization software analyzes each order and picks the best shipping box. Your warehouse staff stops guessing. The system calculates dimensions. It compares DIM weight across carrier options. Then it recommends the most cost-effective choice.
Box-cutting machines take this further for warehouses with extreme order variety. These systems custom-cut containers to exact dimensions for each shipment. Packsize automation users achieved an 82% reduction in void fill materials. Less filler means lower packaging costs. Plus, fewer damaged products from items shifting inside oversized boxes.
Right-sizing also saves pallet space. Automated height reduction creates 25% space conservation per pallet. That could eliminate 1 delivery truck for every 4 shipments. You cut fuel costs, labor, and your carbon footprint at the same time.
More Ways to Cut Costs
Products with high shape variety offer the greatest optimization potential. Lightweight toys with irregular dimensions showed the biggest savings in carton set studies. Technology products with standard shapes deliver moderate but consistent improvements.
Check your carrier programs too. The US Postal Service provides free boxes, envelopes, and polybags for certain services. That’s 25-75 cents saved per package. More money back in your budget just for using supplied packaging.
Right-sized shipping boxes also reduce raw material usage by up to 40%. Less cardboard purchased means lower packaging costs. These savings stack on top of your shipping savings. Standard dimensions make palletization and receiving faster. Uniform boxes stack well through automated systems. Irregular or oversized boxes need manual handling. This creates bottlenecks and slows your entire fulfillment operation.
Balance Stock vs. Custom Packaging
Custom-printed packaging costs more per unit than plain cartons. But you find savings elsewhere in the supply chain. Compare total landed cost against your current order volume. That determines the winner.
The Price Tag: Generic vs. Branded
Standard (Stock) Cartons
Plain, unbranded boxes run $0.25–$0.80 per unit. Most startups pick this budget option. Factories mass-produce them, so stocks sit ready in the warehouse. You skip setup fees. You ship immediately.
Custom Solutions
Branded packaging starts at $0.80–$1.30 per box. That is 30–60% higher than generic options. Setup costs drive this price up. You pay for:
- Die-cutting plates (to cut the cardboard shape)
- Print plates (for your logo and design)
- Machine calibration
These fixed costs run $500–$1,000 per design. Volume changes the math. Order 5,000 units? You might pay $0.70 each. Order 50,000? The price drops to $0.52. Now they compete with stock prices.
When to Stick with Standard Cartons
Do not customize yet if:
Volume is Low: You ship fewer than 500–1,000 orders a month. Setup fees destroy your margins.
High SKU Variety: You sell everything from earrings to blenders. You need too many box sizes. Custom printing costs too much.
Speed is Critical: Custom packaging production takes 2–4 weeks. Need shipping boxes by Friday? Stock is your only choice.
The Tipping Point: When to Switch
The math favors custom packaging when a single box size hits 10,000–20,000 units per year. A box built for your product fits better.
A “perfect fit” means:
Lower Dimensional Weight: Cut an inch off the height. You land in a cheaper shipping tier.
Less Waste: Stop paying to ship “air”. You use less bubble wrap or void fill.
Real-World Savings Example
Check the ROI. A custom box costs $0.30 more upfront than a stock one. But it fits tighter. The billed weight drops from 3 lbs to 1 lb.
Stock Option: 10″ × 8″ × 4″ (Billed at 3 lb) → Shipping: $12.00
Custom Fit: 8.5″ × 6.5″ × 2.5″ (Billed at 1 lb) → Shipping: $8.50
You spend $0.30 more on cardboard. You save $3.50 on shipping. Scale that to 10,000 orders. You keep $35,000 in profit. The upfront box cost means little now. Logistics savings win.
Consider Branding and Customer Experience
Your shipping box does more than hold products. It acts as a brand ambassador that shows up at every customer’s door. Custom printed packaging boosts brand recognition by over 30% compared to plain boxes. This isn’t vanity spending. You’re investing in customer memory and repeat business.
Brand Visibility Drives Recognition and Recall
52% of online shoppers remember a brand better with clear brand marks on the packaging. Logo, colors, and consistent design elements stick in their minds. Brands with unified visual identity (logo + color scheme + material choice) achieve 20–25% higher brand recall rates than those using generic packaging.
Social media makes this even more powerful. 40% of consumers share unboxing content on social platforms if the packaging looks eye-catching or premium. One beauty brand switched from white boxes with custom stickers to full printed boxes. Within 6 months, repeat customer rates jumped 15%. User-generated content mentioning the brand increased by over 60%. The packaging became free marketing.
Box Finish Creates Specific Brand Perceptions
Material and finish choices send instant brand signals. Kraft paper (natural brown finish) with minimal printing triggers specific consumer associations:
- 70%+ of surveyed consumers link natural kraft boxes to eco-friendly or sustainable brands
- About 55–60% describe brands using kraft packaging as honest, simple, and authentic
Compare this to glossy, full-color printed boxes:
- Consumers perceive these as premium or luxurious
- Just 30–35% consider this style green
60–70% of consumers in sustainability-focused markets (Nordic countries, Germany, Canada) prefer kraft-style or natural-color boxes. 45–50% of these buyers will pay a 1–5% price premium for packaging that feels more sustainable.
Brand perception tests reveal the trust gap. The same product ships in two ways: glossy color-printed boxes versus kraft paper with simple printing. Consumers rating the brand as trustworthy favor kraft packaging by 8–12 percentage points. The eco-responsible perception gap exceeds 30 percentage points in favor of kraft.
Unboxing Experience Builds Loyalty and Drives Repurchases
Well-designed unboxing experiences deliver real returns. Think internal printing, welcome messages, brand stories, custom void fill. Here’s what the data shows:
- Customer satisfaction scores average 10–15% higher for orders with designed unboxing versus plain packaging
- Net Promoter Score (NPS) increases by 5–10 points
- 55–60% of customers say unique unboxing experiences boost their brand affection
- About 40% say memorable unboxing makes them more willing to buy again
Social sharing impact matters too. About 35% of consumers photograph or video record delightful unboxing moments to share online. In beauty and fashion categories, products with designed unboxing generate 2–3 times more user-generated content than standard packaging.
Long-term value shows in the numbers. New customers who get designed unboxing experiences show 10–20% higher repurchase rates within 12 months compared to plain packaging groups. Multiple direct-to-consumer brands running A/B tests confirmed this pattern. For subscription box businesses, retention drives profitability. The unboxing experience becomes a critical retention tool.
Your shipping box choice shapes how customers perceive, remember, and talk about your brand. Plain stock boxes move products. Branded, well-designed boxes build relationships that generate repeat revenue.
Match Box Selection to Carrier Rules
Major carriers look closely at size and weight limits. This decides which shipping boxes you can pick. Go over these limits? You face huge fees. Or, the carrier pushes your shipment into freight. Check the table below. It keeps your package specs in the safe zone.
Carrier Size and Weight Limit Comparison
| Carrier | Max Weight | Max Longest Side | Max Total Size* | Critical Thresholds |
|---|---|---|---|---|
| USPS | 70 lb | 108 inches | 130 inches (Length + Girth) |
108″ Total: Go over this, and you pay “Oversized” rates. |
| UPS (Ground/Air) |
150 lb | 108 inches | 165 inches (L + 2W + 2H) |
50/70/90 lb: Hits “Additional Handling” fees ($4–$6+). |
| FedEx (Express) |
150 lb | 119 inches | 165 inches (L + 2W + 2H) |
96″ Length: Immediate “Oversize” fee trigger. |
*Note: “Total Size” means Length + Girth. Calculate Girth as (2 × Width) + (2 × Height).
Watch Out for the “Girth” Trap
Weight rarely causes the worst fees. The “Length + Girth” math does. It misleads many shippers. A box might look fine at 24″ × 18″ × 12″. But let’s run the numbers:
Girth = (2 × 18) + (2 × 12) = 60 inches
Total Size = 24 (Length) + 60 (Girth) = 84 inches
This fits standard USPS limits easily. Now, swap that box for a 30″ × 20″ × 16″ size. Your total hits 102 inches. You can ship it, sure. But you sit right next to the 108-inch limit. Cross that line, and shipping costs double. Check this “hidden” number before you buy cartons in bulk.

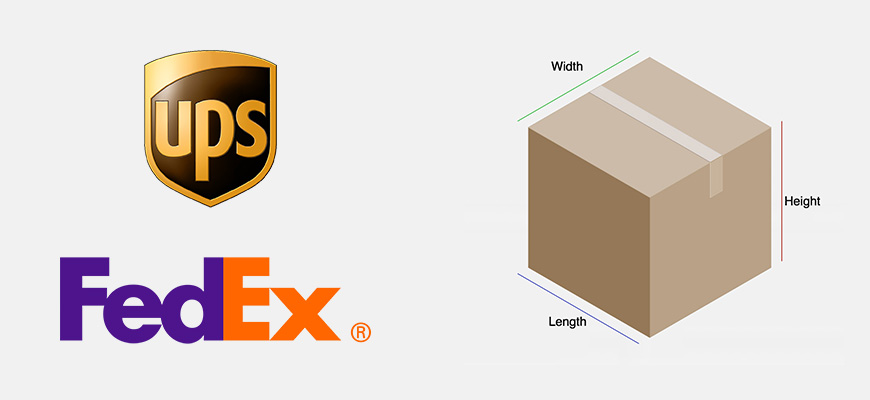

How Dimensional Weight Divisors Change Your Box Math
Carriers calculate dimensional weight using different divisors. UPS and FedEx use 139 or 166 as the divisor for domestic shipments (check current year rates). The formula: (L × W × H) ÷ divisor = DIM weight in pounds. You pay whichever number is higher: actual weight or DIM weight.
Example with a 139 divisor: An 18″ × 14″ × 12″ shipping box creates 3,024 cubic inches. Divide by 139: 21.75 lb DIM weight, rounded to 22 lb. Your product weighs 8 lb. You pay the 22 lb rate. Shrink the box to 16″ × 12″ × 10″ (1,920 cubic inches). DIM weight drops to 13.8 lb, billed as 14 lb. You just cut 8 pounds from your shipping charges by reducing box dimensions.
USPS uses dimensional weight for specific services and zones. DIM pricing activates once package volume exceeds certain cubic marks. The divisor differs from UPS/FedEx. Always verify current USPS Domestic Mail Manual rules for your service type.
Match Box Sizes to Rate Break Points
Create a carrier threshold reference chart. List weight breaks at 1, 2, 5, 10, 20, 50, 70 lb where rates jump. Add dimension thresholds:
USPS: 108-inch and 130-inch length-plus-girth limits
UPS/FedEx: 96-inch longest-side trigger, 130-inch and 165-inch total dimension caps
Test your shipping box dimensions against these numbers before ordering inventory. A box at 109 inches length-plus-girth costs more than one at 107 inches. The 2-inch difference might let you use thinner walls. Or you can reduce one dimension by half an inch.
Products around 1.5–2.0 cubic feet in volume? Dimensional weight controls the rate calculation with UPS and FedEx. Focus on smaller box dimensions. Maintain required cushioning space. Reducing each edge by just 0.5–1 inch can drop you from an 18 lb DIM weight to a 15 lb DIM weight. That’s a full rate tier lower on many schedules.
Final Thoughts:
You don’t need to guess about box sizes anymore. Just remember the three golden rules we covered:
- Measure accurately to avoid paying for dead air.
- Match material strength so your products arrive safe, not crushed.
- Check carrier rules to keep extra fees off your bill.
But knowing how to choose is only half the battle. You also need a partner who can deliver the quality you expect.
That is where CNNBox comes in. We don’t just sell cardboard; we help you solve logistics problems. Whether you need heavy-duty corrugated cartons for industrial parts or sleek, custom-printed mailers that wow your customers, we has the range to fit your specific needs.
Your packaging is the first thing customers see—make it count. Stop settling for “good enough” boxes that waste money and space. Explore the CNNBox catalog today to find the perfect shipping box for your business, or reach out to our team for a custom quote.
