OSHA doesn’t just issue fines for unsafe machines. They issue high-dollar citations specifically for the warning label—or lack of one—stuck to the side.
Every year, thousands of these violations cost businesses millions. But the real cost isn’t the paperwork. It’s the worker injury that happens because a hazard wasn’t clear. Misunderstanding the rules isn’t just expensive; it’s dangerous.
You might be a safety manager trying to make sense of ANSI codes. Or maybe you’re sourcing durable tags for a new product line. The difference between “Danger” and “Caution” feels messy. It’s not just a word choice; it’s a legal hierarchy. Pick the wrong one, and you risk liability.
This guide clears that up. We break down complex regulations into a plain-English roadmap. You’ll learn how to design and select, that don’t just pass audits—they actually protect your people.
OSHA vs ANSI Warning Label Standards: What You Need to Know
OSHA regulation 1910.145 requires three signal word types. Danger marks immediate threats. Caution flags potential hazards. Safety Instruction covers general guidance. That’s what the law demands. OSHA doesn’t ask for “Warning” or “Notice” labels.
ANSI Z535.2-2011 gives you five categories. It adds Warning for mid-level hazards. Notice covers property damage or policy matters. The severity scale becomes clearer: Danger > Warning > Caution > Notice > Safety.

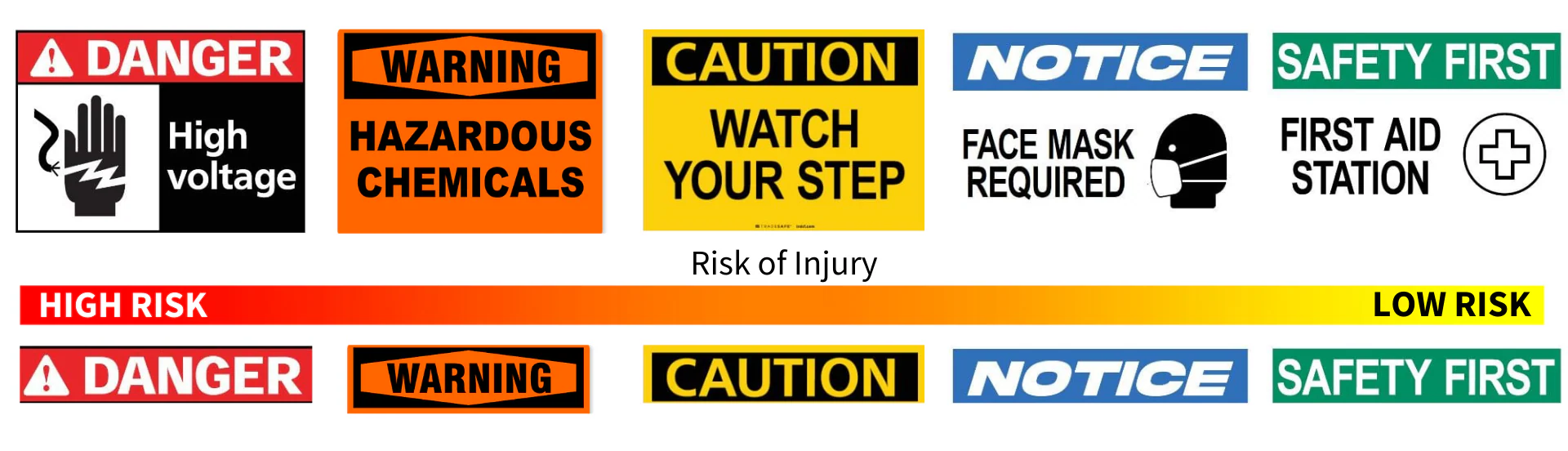

Signal Word Hierarchy at a Glance
Before we dive into the specific rules for each label type, you need to understand the legal hierarchy. ANSI Z535.4 and OSHA organize these signal words by severity level—from immediate death risks to general policy reminders. Think of this list as your quick-reference map for the detailed sections below:
- DANGER (Red Background): Indicates a hazardous situation that, if not avoided, will result in death or serious injury. Use this only for the most extreme situations.
- WARNING (Orange Background): Indicates a hazardous situation that, if not avoided, could result in death or serious injury. This covers serious but non-immediate threats.
- CAUTION (Yellow Background): Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.
- NOTICE (Blue Background): addresses practices not related to physical injury, such as property damage or facility policies.
- SAFETY (Green Background): Used for safety instructions, equipment location, or safe condition markers (like exit signs).
Now, let’s look at exactly how to apply each category in your facility, starting with the most critical standard: Danger Labels.
Danger Labels: When Lives Are on the Line
There is absolutely no grey area when it comes to danger labels. This signal word is reserved for one specific, extreme scenario: hazards that will result in death or severe physical injury if the sign is ignored. The distinction here is critical—it’s not about what “might” happen, but what is essentially guaranteed to happen without protection.
In 2023 alone, over 5,000 workers lost their lives on the job. Many of these tragedies occurred in zones where the severity of the risk wasn’t immediately obvious to the victim. That is why OSHA mandates the aggressive visual trigger of a red background with contrasting white text. It’s designed to cut through the visual noise of a busy factory floor and trigger an immediate “stop” response in the human brain.

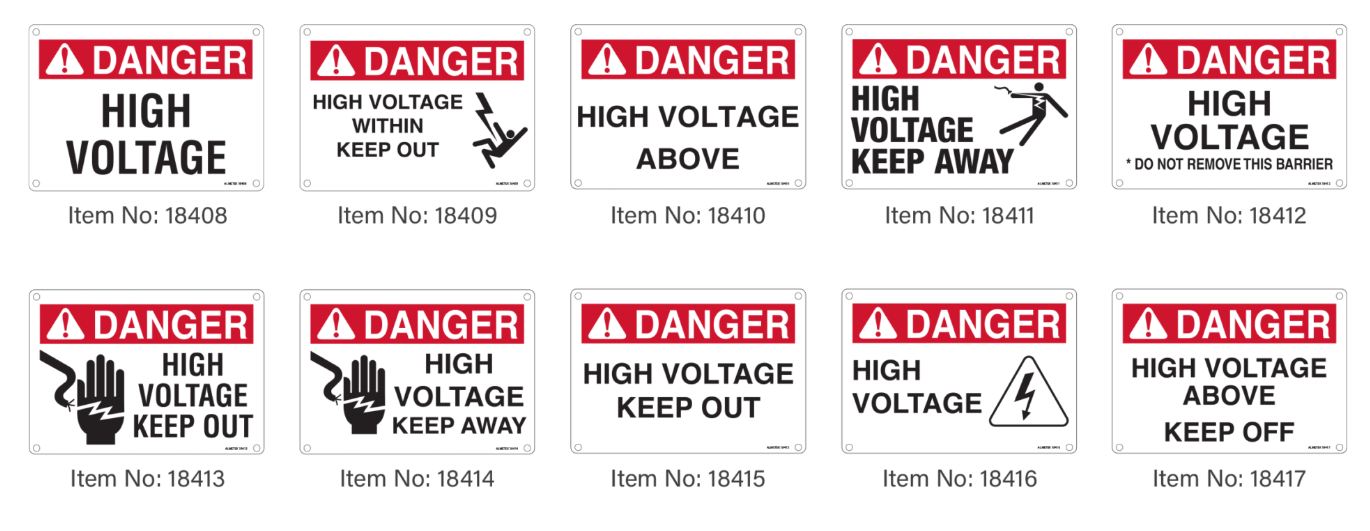

The “High Voltage” Reality
Consider the electrical hazards that claim thousands of lives. A “DANGER – High Voltage” label is often the final psychological barrier between a worker and a fatal mistake. Safety managers must be disciplined here. It is tempting to slap a langer label on every risk to be “extra safe,” but this practice backfires. If you label a slippery floor as “Danger,” workers will eventually stop taking your “Danger High Voltage” signs seriously. Reserve this category strictly for the most immediate, life-threatening zones like toxic confined spaces, arc flash areas, or around exposed heavy machinery gears.

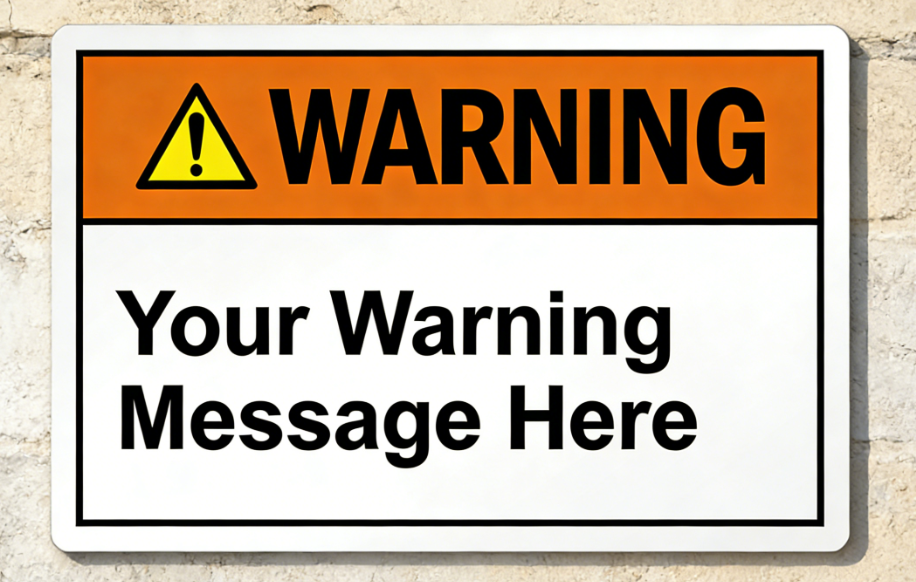

Warning Labels: The Critical “What If” Zone
Warning labels occupy the difficult middle ground of safety communication. They flag hazards that could result in death or serious injury, but where the threat isn’t immediate or guaranteed. This lack of certainty creates a dangerous psychological loophole known as the “Third-Person Effect.” Workers often subconsciously believe that accidents happen to “other people” who aren’t as skilled or careful as they are.
Your Warning labels need to do more than just show an orange background; they need to aggressively dismantle this bias. A label that simply says “Warning: Hazardous Machinery” is effectively invisible because it doesn’t challenge the worker’s assumption of safety. To be effective, the text needs to connect the dots instantly. It must explicitly identify the hazard, describe the specific consequence, and provide the solution in a single glance.
For example, instead of a generic warning, a strong label states that rotating parts will amputate fingers and instructs the user to Lockout/Tagout before servicing. By acting as a “leading indicator,” a well-written Warning label interrupts unsafe behavior before it becomes an injury statistic.

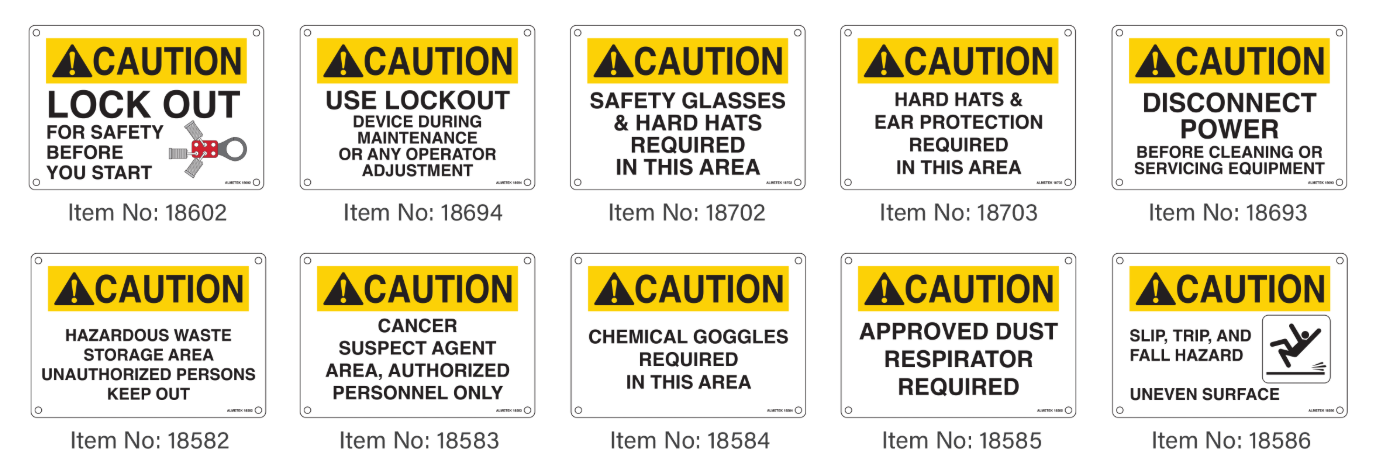

Caution Labels: Managing the “Hidden” Costs
While red and orange labels are focused on saving lives, yellow caution labels are essentially about protecting your workforce’s longevity and your facility’s productivity. These labels address hazards that could result in minor or moderate injuries—the cuts, sprains, bruises, and respiratory irritations that don’t make the evening news but constantly disrupt operations.
It is a mistake to view these as “low priority.” A slip on an unmarked wet floor or a head bump on a low beam leads to medical claims, investigation paperwork, and lost shifts. Under OSHA Regulation 29 CFR 1910.145, the yellow background serves as a universal code to “slow down and look.”
This is particularly nuanced in chemical safety. The Hazard Communication Standard does not allow for vague warnings. Even for minor irritants, you have a legal duty to be specific. If a cleaning solvent causes skin irritation, the caution label must say so. This transparency builds trust; when workers see you taking minor risks seriously, they are more likely to respect the major warnings as well.

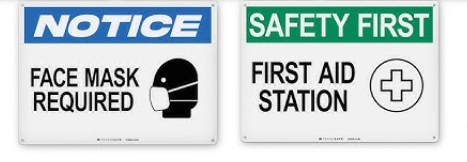

Notice and Safety Instruction: The Operational Framework
If the hazard labels act as the “brakes” of your safety program, the blue and green labels act as the “steering wheel.” They are less about preventing injury and more about guiding correct behavior and providing solutions when things go wrong.
Notice Labels: Policy & Property
ANSI Z535.4 designates blue notice labels for information unrelated to physical injury. Think of these as the “house rules” of your facility. They manage the flow of people and protect property. You use them to mark authorized entrances, enforce hygiene protocols like handwashing, or remind staff to keep climate-controlled doors shut. While missing a notice label won’t physically hurt someone, it often leads to equipment damage or security breaches that cost the company money.
Safety Instructions: The Path to Help
When prevention fails and an accident occurs, green safety Instruction signs become the most valuable visual assets in the building. In a chaotic emergency, people often freeze or panic. Green labels cut through that confusion by clearly pointing to the solution: Emergency Showers, Eyewash Stations, First Aid Kits, and AED locations. Unlike the other warning labels that tell workers what not to do, green labels tell them exactly where to go for help. Placing these high on walls ensures they remain visible even across a crowded or smoke-filled room.
Pictographs and Symbols: Breaking Language Barriers
A parking symbol replaces the word “parking” in five languages. A hamburger icon tells you where to eat without translation. In safety, symbols aren’t just convenient—they cut through language barriers that words can’t cross.
Public transit systems prove this every day. Airports guide millions of non-English speakers to gates without spoken directions. Your factory floor is no different. If you have a multilingual workforce, a text-only label is a liability. You need symbols that trigger an instant reaction.

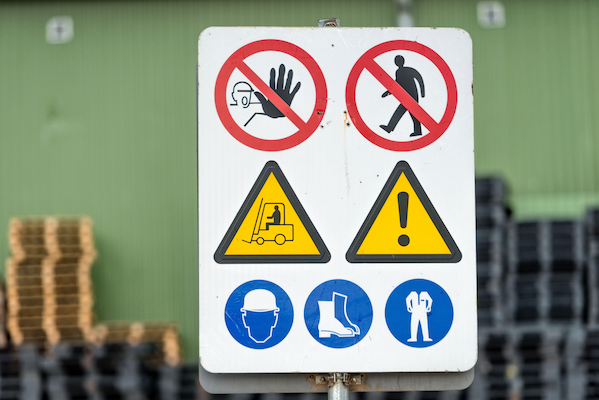

The “Grammar” of Safety Shapes
You don’t need to be an artist to pick the right symbol. You just need to follow the rules of geometry. ISO 7010 establishes a clear “visual grammar” based on shapes and colors. Even before a worker figures out the specific picture, the shape tells them the category of the message:
- Triangles (Yellow) mean “Warning”: These shout “Watch out!” Look for these to flag hazards like electrical shock, slippery floors, or laser beams.
- Circles with a Slash (Red) mean “Prohibition”: This is the universal “No.” No smoking, no open flames, no unauthorized access. If you want someone to stop doing something, use this shape.
- Solid Circles (Blue) mean “Mandatory Action”: These tell workers what they must do. Wear eye protection? Put on a hard hat? Read the manual? A blue circle commands action.
- Squares (Green) mean “Safe Condition”: These point the way to safety—exit doors, first aid kits, or assembly points.
Don’t Get Creative: Stick to ISO 7010
Here is the most common mistake: hiring a graphic designer to creating a “better” version of a standard icon. Don’t do it.
Safety symbols work because of repetition. A worker recognizes the standard “High Voltage” lightning bolt instantly because they have seen it a thousand times. If you redesign it to look “cooler” or “more modern,” you force their brain to process a new image. That split-second of confusion can be dangerous. Always browse the ISO 7010 library first. If a standard symbol exists, use it.
The “Glance Test”
Sometimes, a specific hazard doesn’t have a standard ISO icon. In that case, you might need to combine elements, but keep it simple. Test your choice with the “Glance Test.” Show the symbol to a worker who has never seen it before for just one second. Then ask them what it means.
If they guess “turn off the machine,” but you meant “check the oil level,” your symbol failed. Good symbols don’t need an explanation. If you find yourself explaining what the picture means, pick a different picture.
Warning Label Design Requirements: From Corners to Contrast
ANSI Z535.4-2023 sets exact specs for every element on a safety label. Text height, color values, symbol size, panel layout—none of it’s optional. Courts check these standards to decide if your labels are legally adequate.

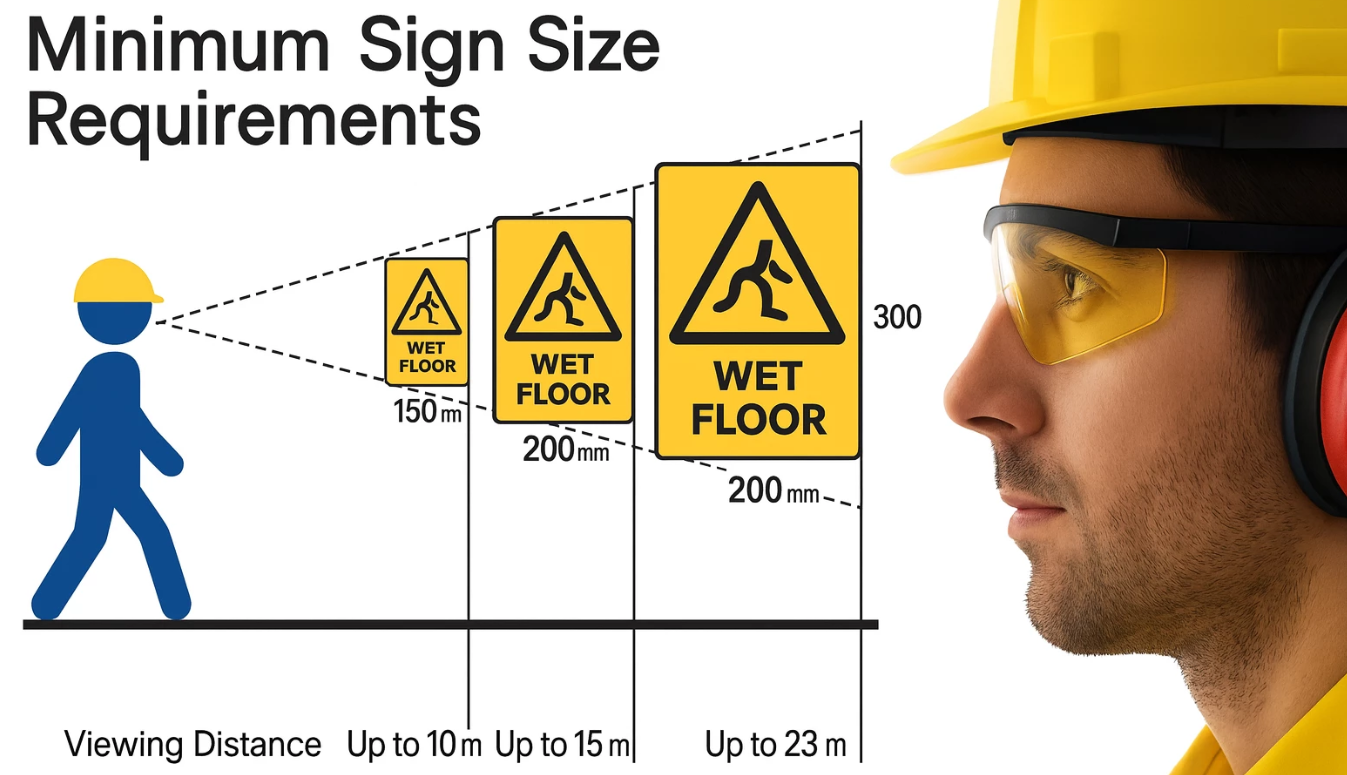

Minimum Text Size Stops Misreading
Hazard label names need 7.6mm (0.3 inches) minimum height. Words like “Spontaneous” or “When Wet” drop to 5.1mm (0.2 inches). California Prop 65 short-form warnings need 6-point type at minimum.
These aren’t design suggestions. They’re readability thresholds. Workers standing three feet away must read the signal word right away. Smaller text forces them closer to the hazard. Distance gives reaction time. Reaction time saves lives.

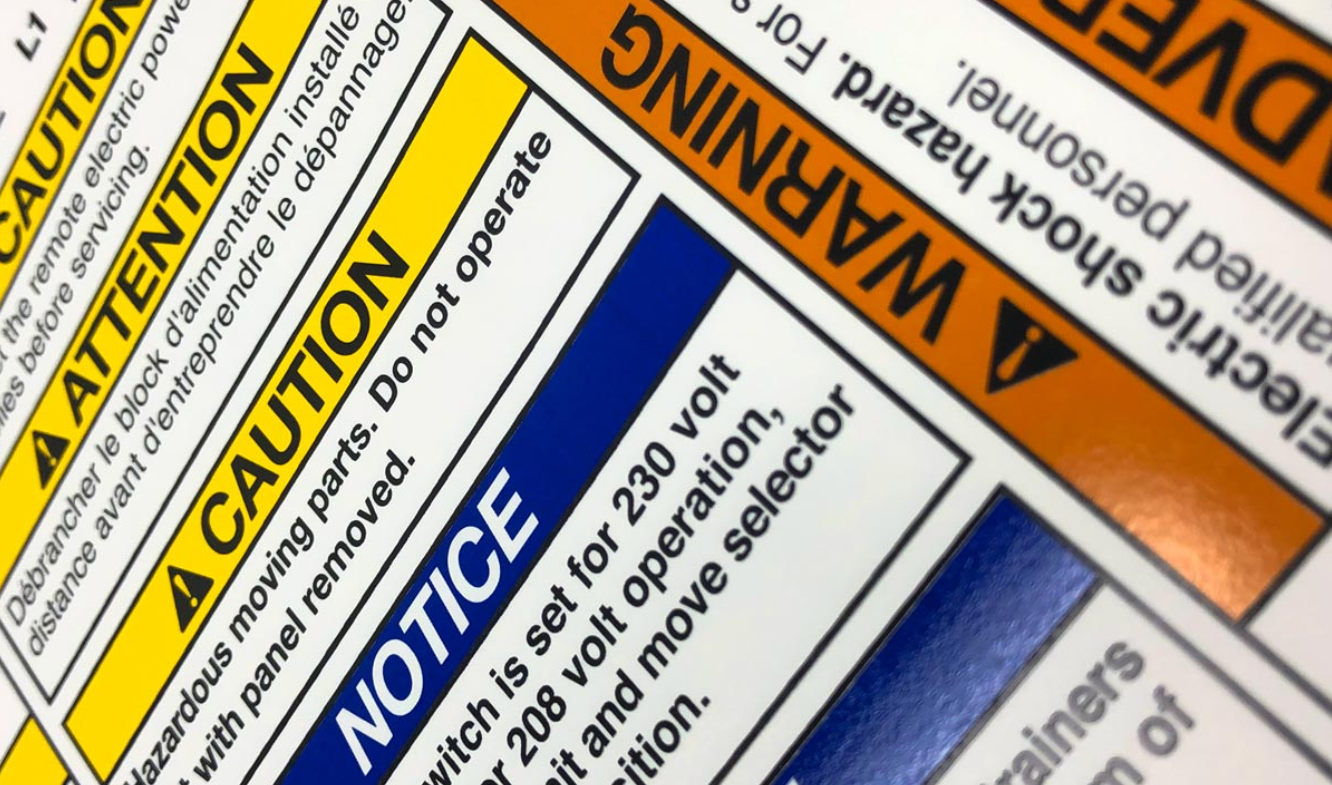

Signal Word Formatting Creates Recognition
Signal words appear in bold, uppercase letters. The background color matches the hazard level. White on red for DANGER. Black on orange for WARNING. Black on yellow for CAUTION. This color pairing creates contrast ratios that work in dim factory lighting.
ANSI allows one signal word per label. DANGER takes priority over WARNING. You can’t dilute a severe threat by adding lower-level warnings. Pick the highest risk. Design for that.
Panel Structure Follows a Pattern
ANSI Z535.4 divides labels into structured panels. Signal word sits at top. Hazard ID comes next with pictograms. Then a consequence statement explains what happens. Avoidance instructions tell workers how to stay safe. This layout trains workers to scan labels the same way each time.
Missouri courts ruled on label adequacy in product liability cases. Bright red and yellow backgrounds won cases. So did pictograms paired with text. Bold, capitalized critical warnings mattered. Generic text with weak contrast lost.

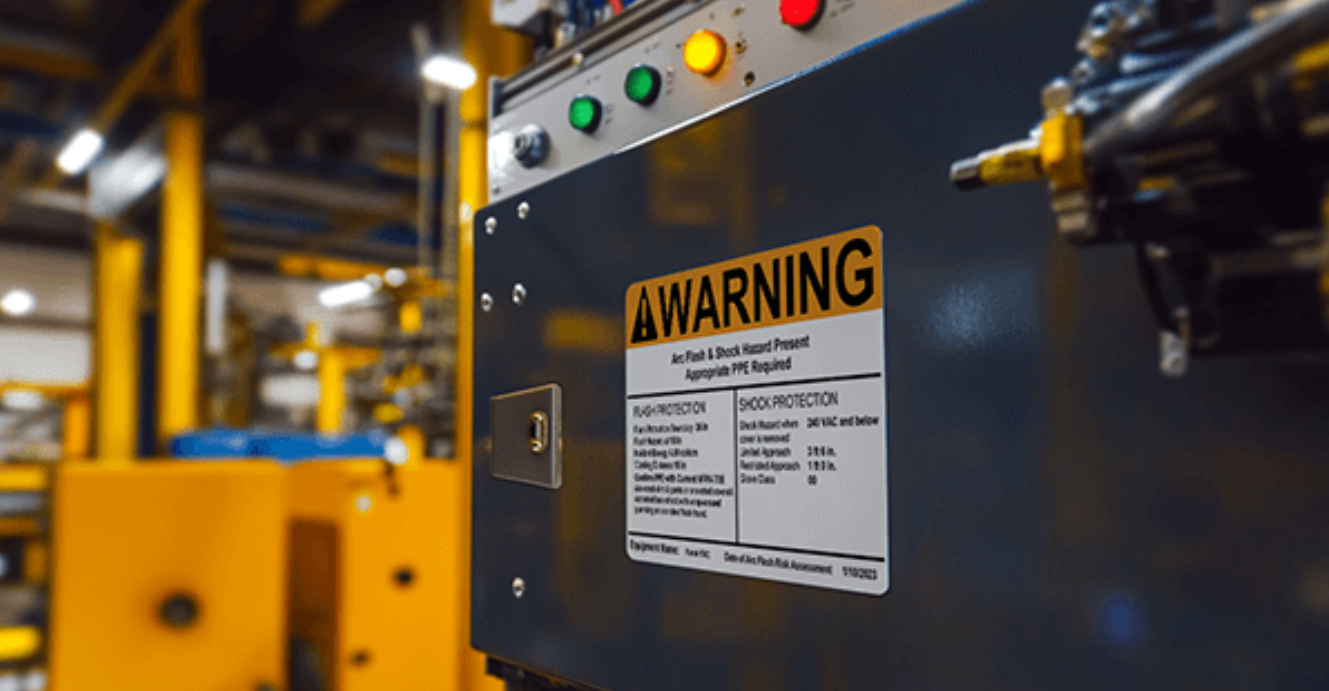

Placement Beats Perfect Design
A perfect warning label hidden on a machine’s underside fails compliance. OSHA needs warnings near the hazard point. Place labels where workers see them before exposure, not after. Chemical container labels go on the immediate container and outer packaging. Machine guards need labels on the access side. That’s where operators stand.
Power tool warnings appear near controls and moving parts. The text reads: “Keep Hands Away From Moving Blade” with graphics showing the injury. Appliance labels warn at the electrical connection point: “Risk of Electric Shock: Do Not Immerse in Water.”
Content Limits Prevent Overload
ANSI caps precautionary statements at six maximum. More text doesn’t mean better safety. It means workers stop reading. Chemical labels say: “Vapor Harmful: Use in Well-Ventilated Area.” Not ten sentences about ventilation types and airflow rates.
Specific beats general. “May cause injury” tells workers nothing useful. “Rotating shaft may catch loose clothing causing amputation” explains the actual risk and what happens. Workers remember specific threats. They ignore vague ones.
Warning Labels for Different Industries
Generic warnings don’t work. Every industry fights a different battle. A static label on a wall serves a different purpose than a tracking label on a chemical drum. Here is how challenges change across sectors.

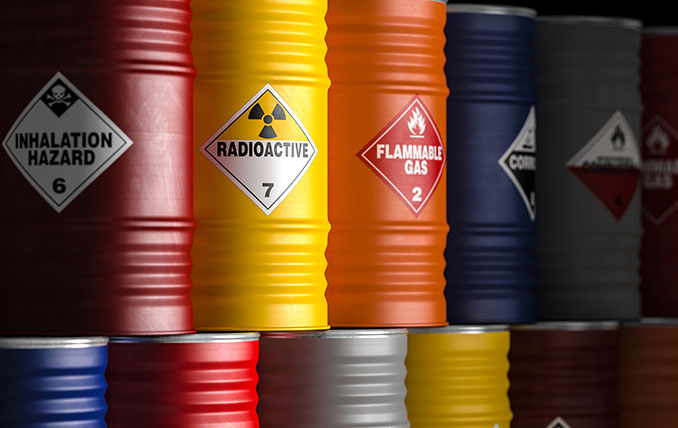

Chemical Manufacturing: The Global Data Puzzle
Chemical facilities manage more than just substances. You manage a living regulatory database. The real test goes beyond GHS compliance. You must handle global supply chain conflicts. Picture a drum shipping from Shanghai to San Francisco. It needs to meet China’s GB standards, global transport laws, and California’s Proposition 65. All at the same time. Also, batches change. Your labeling system needs to adapt fast. Static pre-printed labels often fail. You need dynamic, on-demand printing to handle the data flow.
Construction Materials: The “Foreseeable Use” Trap
Building materials bring a unique liability trap. They are safe on delivery but risky during use. Take a sheet of fiber cement. It poses no risk on a pallet. But a worker cuts it, and silica dust fills the air. A label that warns about the package alone leaves you exposed. Good construction labels cover the whole lifecycle. Warn about storage. But also warn about cutting, sanding, and installing hazards.

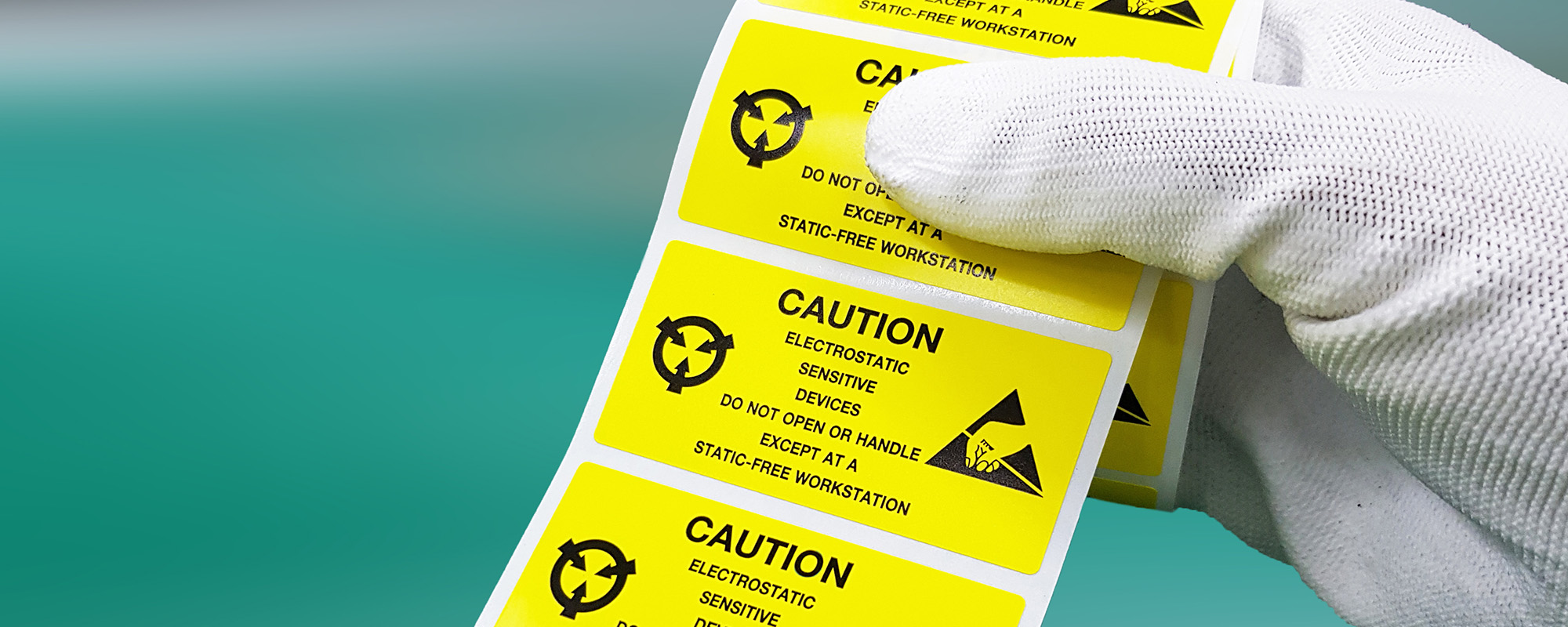

Electronics: Innovation vs. Safety Data
R&D moves faster than toxicology in electronics. You might use new compounds before long-term health data exists. So, take a conservative approach. Treat unknown risks as high-level hazards until you know otherwise. Flexibility is key here. New toxicity data comes out constantly. Update labels on the production line right away. Do this without stopping the assembly belt.
Consumer Goods (Food & Cosmetics): Trust Through Transparency
2025 changes the game for consumer products. We move from simple compliance to total disclosure. New allergen rules call for plain language. Write “Contains Tree Nuts” instead of complex botanical names. Consumers demand the full story. They want to know ingredient origins and ethical sourcing right on the package. Your label isn’t just a warning anymore. It’s a marketing tool. It builds—or breaks—brand trust.
The Cost of Getting It Wrong
The stakes are financial and moral. OSHA penalties exceed $16,000 per violation. Willful neglect costs much more. A bad labeling strategy kills your budget. Add in supply chain rejections and lawsuits. Ideally, invest in a compliant system now. It costs far less than fixing a disaster later.
Material Selection: When Compliance Meets Reality
There is a dangerous misconception that warning labels are “set it and forget it.” In reality, labels fight a losing battle against their environment from the moment they are applied. A standard vinyl label detailed in your design files might look perfect, but if you stick it on an outdoor generator, UV radiation will bleach the red “Danger” panel into a pale pink within six months. When the color fades, the compliance—and the safety—vanishes with it.
Material selection isn’t just about picking a sticky sticker; it’s an engineering decision. You must match the label’s physical properties to the specific stresses of your facility. A label that survives five years in a climate-controlled warehouse might curl and fail in six weeks near a solvent tank. Failed materials create liability gaps just as large as bad label text.
The Regulatory Baseline: UL and ISO
Before you look at material swatches, look at the certifications. UL 969 is the industry baseline for marking and labeling systems, ensuring that labels stick and stay legible after exposure to heat, cold, and humidity. If your equipment operates in high-risk fire zones, you need to look even deeper at UL 94 standards.
For example, V-0 classification plastics stop burning within 10 seconds of source removal—critical for electrical enclosures. In contrast, HB classification represents the minimum standard for slow burning. Using an HB-rated label on a V-0 rated machine housing technically compromises the fire safety of the entire unit.
Designing for the Elements
The “Arizona vs. Seattle” test is a classic benchmark in material science. Sunlight in Arizona breaks down molecular bonds in plastics far faster than the overcast skies of the Pacific Northwest. If your products ship globally, you must specify materials like high-grade polyesters or polycarbonates, which naturally block UV radiation and resist yellowing.
For harsh industrial environments, you also need to consider corrosion. ISO 9227 salt spray tests reveal how labels perform near oceans or in chemical plants. Standard paper or basic vinyl will disintegrate. For these zones, you need engineering-grade films paired with domed laminates. These “self-healing” coatings add a layer of armor against scratches, while UV-resistant inks ensure the signal word stays red, not pink, for years.
The Hidden Variable: Surface Energy and Adhesion
You can have the most durable face stock in the world, but it’s useless if the adhesive fails. This often happens due to a mismatch in surface energy. A “High Energy” surface like stainless steel is easy to stick to. But “Low Energy” surfaces—like distinct textured plastics or powder-coated paints—repel standard adhesives just like a waxed car repels water.
If you are labeling textured machinery or oily surfaces, standard adhesives will lift at the corners. You need aggressive, high-tack acrylic adhesives compliant with UL 746C standards. These are chemically formulated to “wet out” into the microscopic valleys of a textured surface, creating a permanent mechanical bond that resists vibration and thermal shock.
The Four-Step Selection Framework
To ensure your labels last as long as your product, follow this selection workflow:
- Quantify the Environment: Don’t guess. Define the temperature range (e.g., -40°C to +150°C for automotive under-hoods). List every chemical exposure, from cleaning solvents to hydraulic fluids. Define UV exposure: is it indoor, indirect window light, or direct outdoor sun?
- Map the Regulations: Identify the non-negotiables. Does it need UL 969? Does the medical device housing require IEC 60601 compliance? Are there RoHS or REACH restrictions on the label materials themselves?
- Convert to Specs: Translate needs into data. If there is mechanical impact, look for an impact resistance (ISO 180) above 5 kJ/m². If there is chemical exposure, look for materials that retain 80%+ tensile strength after a 1,000-hour soak test.
- Verify with Data: Finally, screen your material choices against manufacturer datasheets (TDS). Look for published Relative Thermal Index (RTI) values. Never assume a material works; demand the certification document that proves it.
Conclusion: Real Compliance. No Guesswork.
We’ve walked through the “Danger” vs. “Warning” rules and the details of GHS compliance. Real safety labeling is more than just printing stickers. It’s about building a communication system. You need labels that survive in the real world.
Mistakes cost too much here. A faded label or confusing symbol invites OSHA fines. Worse, it blinds your team to incoming hazards. You shouldn’t have to pick between durability and compliance. You need both.
