What Is A Corrugated Box?

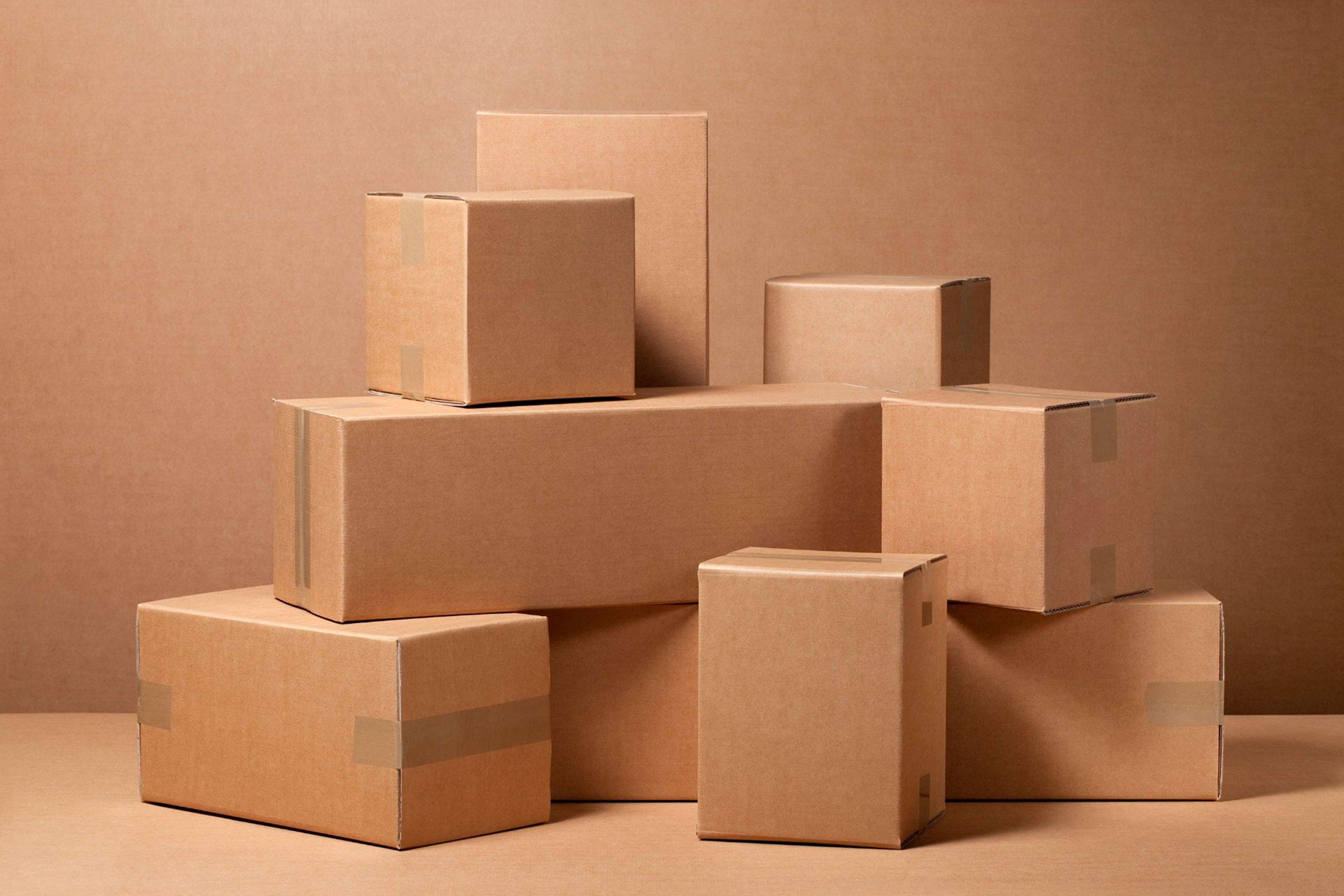

What Is a Corrugated Box?

A corrugated box is constructed from a special material called corrugated board, which is composed of three layers: an inside liner, an outside liner, and a corrugated medium (fluted paper) sandwiched between the two. The fluted layer gives the box its notable combination of light weight and increased strength, providing rigidity and protection while being suitable for printing and branding.

Corrugated board is assembled by combining layers of linerboard and fluted paper. The medium is engineered to form flutes as it passes through large rollers.The liners adhere to the top and bottom of the fluted medium using a starch-based adhesive.This process results in a strong yet flexible board, ideal for custom packaging and transport.

Key facts and figures:

1.Corrugator machines used in manufacturing can be 300 feet long and 20 feet high, with costs around one million dollars each.

2.Corrugated board types include single-wall, double-wall, and triple-wall, depending on product strength requirements.

3.Most corrugated boxes are made from softwood trees (e.g., pine, fir), chosen for their long fibers, which increase strength and smoothness.

4.During manufacture, fluting amount and flute profile (e.g., A, B, C, E flutes) are adjusted.

5.Different box sheets can be treated for water, grease, or slip resistance and often printed or colored to order.

6.Corrugated boxes account for a majority share of shipping containers worldwide, with billions produced annually to support commerce, agriculture, manufacturing, and e-commerce logistics.

Now that we understand the basic concepts and fundamentals of corrugated boxes, we can delve deeper into their manufacturing process, types, development history, application industries, and key characteristics. These aspects not only demonstrate the importance of corrugated boxes in the modern packaging industry but also illustrate how they have evolved in response to changing market demands. Next, we will analyze these aspects step by step to provide you with a more comprehensive understanding.

How Corrugated Boxes Are Made

Corrugated boxes are essential packaging solutions widely utilized across industries due to their strength, lightweight nature, and versatility. The manufacturing process involves several distinct stages, each contributing to the final product’s quality and performance. Below is a detailed exploration of this process:

1.Raw Material Sourcing:

The production of corrugated boxes begins with the selection of raw materials. The primary material for most corrugated boxes is softwood, sourced from trees such as pine and fir. These wood varieties are favored for their long cellulose fibers, which enhance strength and durability. The manufacturers often prioritize sustainability by sourcing from responsibly managed forests. Alternatively, recycled cardboard can be used, although many new boxes still originate from fresh wood pulp to achieve optimal quality and properties.

2.Pulp Preparation:

Once the raw materials are sourced, the next step involves converting the logs into pulp. This process begins with debarking the logs to remove the outer bark, followed by chipping them into small pieces. The wood chips are then processed into pulp through mechanical grinding or chemical treatments, commonly utilizing sodium sulfate for improved strength. Mechanical grinding is simpler but less thorough, while chemical treatments yield a higher-quality pulp with improved uniformity and strength properties. The pulp can either maintain its natural brown color or be bleached for a whiter finish, depending on the desired aesthetics of the final product.

3.Making Corrugated Cardboard:

The heart of the manufacturing process lies in transforming the pulp into corrugated cardboard. This stage can be broken down into two primary operations: corrugation and lamination.

• Corrugation: The prepared pulp is formed into rolls of paper, which are fed into a specialized machine called a corrugator. In this machine, the paper is subjected to hot steam and passed through gear-like rollers that shape the medium into a series of flutes. This rippled structure is crucial as it provides strength and cushioning to the cardboard.

• Lamination: After the fluting process, adhesive, typically starch-based for its biodegradable properties, is applied to the peaks of the fluted medium. Linerboard is then glued to one or both sides of the fluted layer to form either single-wall, double-wall, or triple-wall corrugated board. This choice depends on the required strength and intended application of the box. The corrugator can also produce a variety of flute sizes and configurations, influencing the box’s strength, weight, and cushioning properties.

4.Custom Treatments:

To enhance the capabilities of corrugated boards, multiple custom corrugated treatments can be applied. These may include adding water, grease, or slip resistance to the board, making it suitable for specific products. Treatments might also involve using colored inks or specially printed linerboards to provide visual appeal or promote branding. Internal reinforcements, such as tapes or strings, may be incorporated to mitigate the risk of tearing or bulging under stress.

5.Cutting and Scoring:

Once the corrugated sheets are formed, they move to cutting and scoring operations. Advanced machines, such as printer-slotters, die cutters, or flexo folder-gluers, are utilized to transform the large sheetboards into precise box blanks. Inline creases, or scores, are strategically added perpendicular to the flute direction. This feature allows for easy folding, forming the flaps of the box during assembly.

6.Printing:

Printing is a crucial step that adds functionality and branding to corrugated boxes. Flexographic printing is widely employed to directly print logos, handling instructions, and attractive graphics onto the board prior to cutting and folding. This process ensures that the graphics are durable and can withstand the rigors of transportation and storage, while also offering vibrant color reproduction.

7.Assembly:

The final stage involves assembling the box blanks into finished boxes. The blanks are folded and glued into shape, utilizing various methods such as staples or tape, depending on the box design and customer requirements. Equipment like stitchers or tapers facilitate this process to ensure structural integrity. Once assembled, the finished boxes are bundled for shipment or stacked for further conversion, ready for delivery to customers or end users.

The entire production process is designed to maximize efficiency while ensuring that the final corrugated boxes meet industry standards for strength, durability, and customization. As a result, corrugated boxes remain a favored choice for packaging a vast array of products, from delicate electronics to heavy machinery.

Types of Corrugated Board

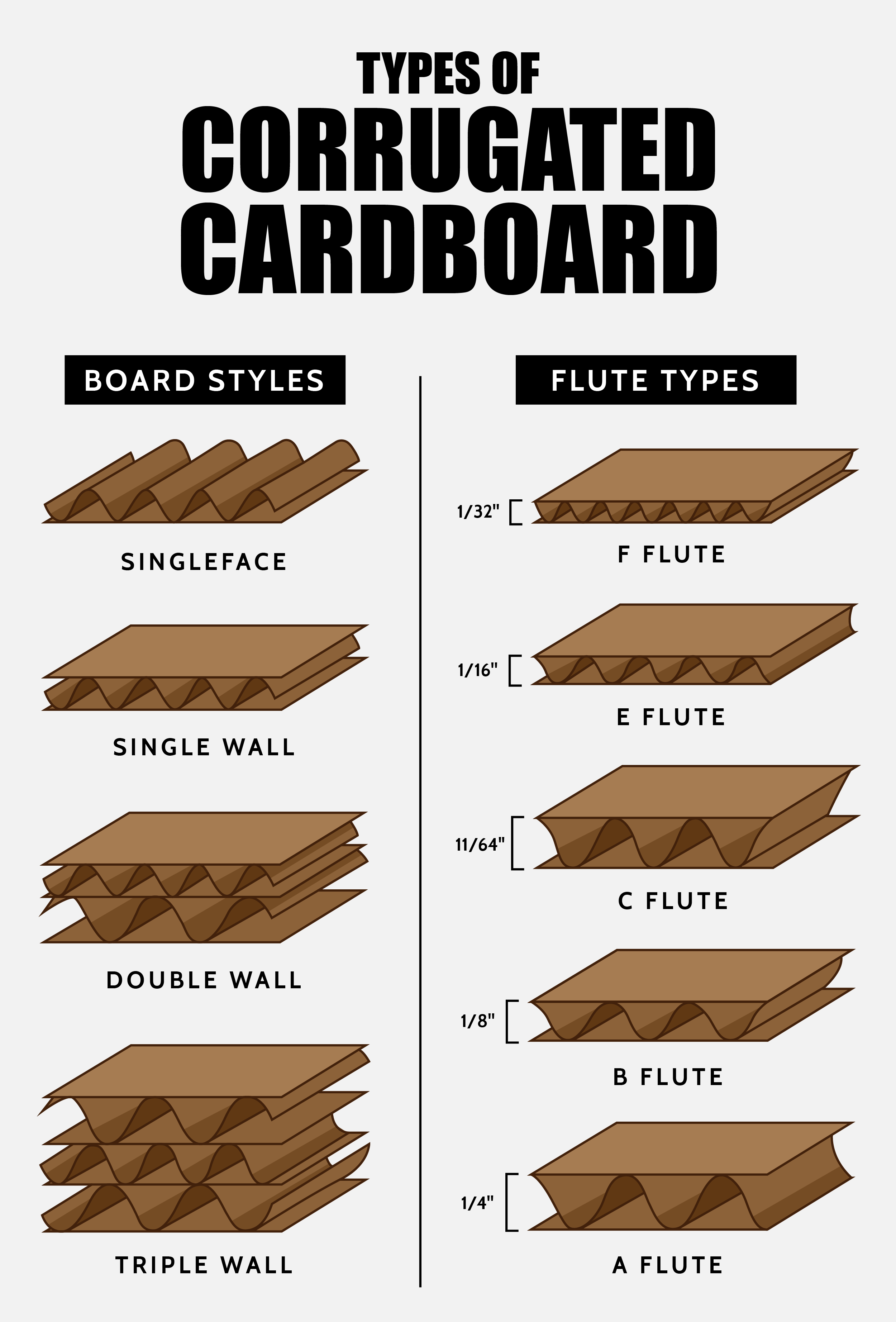

Corrugated board comes in several distinct flute types and combinations, each offering specific structural and functional properties for packaging applications.

Major Corrugated Flute Types:

A Flute:

Flute Height: 4.8 mm

Number of Flutes / Meter: 110

Typical Use: Provides the greatest cushioning and is often employed for packaging fragile items or large containers.

B Flute:

Flute Height: approx. 2.4 mm (0.0787–0.1102 in.)

Number of Flutes / Meter: 150 (45-53 / foot)

Key Benefit: Offers good stacking strength and printing surface; frequently used for canned goods and displays.

C Flute:

Flute Height: approx. 3.6 mm (11/64 in.)

Number of Flutes / Meter: 130 (41 / foot)

Characteristics: Most common and versatile; makes up about 80% of boards, suitable for custom shipping boxes, glassware, furniture, and food packaging.

E Flute:

Flute Height: approx. 1.2 mm (1/16 in., or 0.0445–0.0550 in.)

Number of Flutes / Meter: 290 (70–98 / foot, 90 / foot commonly cited)

Advantages: Thin profile for space-saving, excellent printing surface, ideal for custom displays, pizza boxes, cosmetics packaging.

F Flute:

Flute Height: approx. 0.5–0.8 mm (1/32 in.)

Number of Flutes / Meter: 400–550 (128 / foot)

Uses: Provides superior printing capability and stiffness with less fiber; commonly found in custom fast food packaging, cosmetics, jewelry boxes.

Specialty Microflutes:

G & N Flute:

Flute Height: 0.5–0.8 mm

Number of Flutes / Meter: up to 550

Primarily Used: For very fine packaging and high-quality printing, such as retail boxes.

Combined Board Structures:

Single Face:

Composition: One liner glued to one fluted medium; one side shows visible fluting.

Applications: Inner wrapping, flexible protection.

Single Wall:

Composition: Two linerboards sandwiching a single fluted medium.

Prevalence: Most widely used, typically for shipping cartons.

Double Wall:

Composition: Three linerboards with two fluted mediums.

Benefit: Extra strength for custom heavier-duty packaging.

Triple Wall:

Composition: Four linerboards and three fluted mediums.

Strength: Used for the heaviest, most demanding transit requirements.

Brief History

Corrugated box history traces back to the early 19th century when cardboard—thick paperboard—was first adopted for packaging, notably by Kellogg Cereals for product boxes.

Key Corrugated Box Milestones

Key Data:

1856 (England): Corrugated paper was patented by Edward E. Allen and Edward G. Healy, originally for supporting hatbands and ruffled collars due to its ability to hold shape.

1871 (USA): Albert L. Jones received a patent for using corrugated paper as packaging material, improving cushioning for items like glass bottles and chimneys.

1874: Olivier Long patented adding a liner to one side of corrugated paper for extra strength.

1879 (USA): Robert Gair invented the pre-cut corrugated cardboard box, transforming corrugated cardboard into foldable, mass-producible boxes.

1881: Robert H. Thompson patented single-wall corrugated board and created the first mechanically-driven single-facer (one-liner), improving scalable production.

1883–1888: European expansion: first corrugated plants established in London (1883), Kirchberg (Germany, 1886), and Exideuil-sur-Vienne (France, 1888).

1894: Henry Norris and Robert Thompson of Thompson Norris Company constructed the first double-faced corrugated boxes.

1895: Jefferson T. Ferres developed the first continuous corrugator—pivotal for mass production.

1903: Cereal manufacturer receives the first exception to ship goods in corrugated fiberboard via railroad, marking regulatory acceptance beyond wooden crates.

By the early 20th century, corrugated boxes replaced wooden crates across industries for shipping goods like tea, wine, and clothing, due to their durability, printing ease, and lower cost.

Standardization and Industrial Adoption:

1906: Railroad committees approved corrugated fiberboard boxes with quality stipulations, signifying widespread adoption in American shipping.

1909: Creation of The Fibre Shipping Container Association standardized thickness of facings and bursting strength (via Mullen tester) for quality assurance.

1916: First double-wall corrugated board produced, increasing strength for heavier shipments.

Since its invention in the 19th century, the evolution of corrugated packaging has profoundly impacted the transportation and packaging industries. From the patenting of corrugated paper for hatbands in 1856 to Robert Gale’s invention of pre-cut cardboard boxes in 1879, continuous advancements in corrugated materials have steadily increased its practicality. By the early 20th century, corrugated boxes, thanks to their superior durability, printing performance, and cost-effectiveness, had largely replaced wooden crates for transporting a wide variety of goods.

With important milestones like the approval of corrugated paper for rail transport in 1903 and subsequent standardization, custom corrugated packaging has become a vital component of modern logistics and distribution, influencing the way goods are transported across a wide range of industries. This long history underscores the adaptability and importance of corrugated packaging, making it a crucial tool for meeting ever-changing market demands.

Application of corrugated

Key application sectors include:

1. Food & Beverage:

This is the largest end-use industry for corrugated custom packaging, utilized for fresh produce, processed foods, and non-perishables. The packaging’s non-reactive and protective properties ensure food safety during extended storage and transport, minimizing spoilage and contamination risks while maintaining product integrity throughout the supply chain.

2.E-Commerce:

The rapid growth of online retail has significantly increased the demand for corrugated boxes, which offer lightweight, customizable, and protective packaging solutions. These custom corrugated boxes ensure safe transportation of goods, meeting consumer expectations for quality and reliability while enhancing brand visibility and reducing environmental impact through recyclable materials.

3.Electronics:

These boxes are specifically designed for optimal cushioning and precise dimensions, ensuring that sensitive components, such as circuit boards and microchips, are protected from damage and tampering during transit. Their lightweight yet sturdy construction minimizes shipping costs while maximizing product safety, making them essential for the electronics industry. Furthermore, the use of anti-static materials in some corrugated box designs enhances protection against static electricity, further safeguarding delicate electronic items during shipping.

4.Moving & Home Storage:

Corrugated boxes are the go-to solution for efficient moving and home storage. Their lightweight yet robust construction makes them ideal for transporting household items, from kitchenware to clothing. These versatile boxes, known for their impact resistance, ensure that your belongings are well-protected during transit. With customizable sizes and designs, they accommodate various storage needs, while their affordability makes them a budget-friendly choice for families and individuals alike. Whether you’re relocating or decluttering, corrugated boxes provide a reliable and practical option for keeping your possessions safe and organized.

5.Industrial and Chemical Goods:

Corrugated packaging is essential for transporting parts, equipment, and chemicals, ensuring robust protection during transit. This packaging prioritizes strength and tamper-evidence while adhering to stringent safety regulations. It is designed for secure handling, minimizing the risk of leaks or contamination, thus safeguarding both the products and the environment throughout the supply chain.

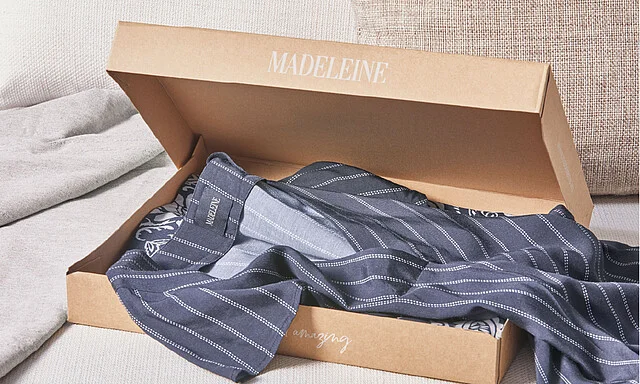

6.Textile and Apparel:

Corrugated packaging plays a crucial role in the bulk shipping of clothing, footwear, and accessories. Its robust design protects these items from impact and environmental exposure, ensuring they arrive in pristine condition. By maintaining product integrity during transit, corrugated packaging enhances efficiency in logistics and meets the growing demands of the fashion industry.

Advantages and Uses of Corrugated Boxes

1.Exceptional Strength & Product Protection:

Corrugated boxes provide robust protection due to their fluted construction, cushioning products from shocks, vibration, and compressive forces. Designs range from single-wall to triple-wall, supporting requirements from lightweight retail to heavy-duty industrial shipping. For example, triple-wall corrugated boxes can comfortably withstand stacking and compression during transit and storage, reducing product damage and returns.

2.Lightweight & Efficient Transport:

Corrugated boxes are lightweight, decreasing overall shipping weight. This translates to lower transportation costs and reduced fuel usage. More boxes fit per pallet or truck, lowering logistics expenses and environmental impact simultaneously.

3.Cost-Effectiveness & Operational Efficiency:

Corrugated cardboard uses inexpensive raw materials and efficient manufacturing processes, making it among the most cost-effective packaging solutions. Custom corrugated box sizing further reduces waste and storage requirements. Optimized for operations, corrugated packaging is easy to handle, stackable, and streamlines warehouse logistics, helping businesses achieve significant cost savings.

4.Sustainability & Environmental Stewardship:

Most corrugated packaging contains 70%-100% recycled material and is widely recyclable and biodegradable. It is produced from renewable fibers and supports closed-loop recycling systems. This sustainable attribute allows businesses to reduce environmental impact and landfill waste, with corrugated packaging being the most recovered packaging material globally.

5.Branding & Customization Power:

The smooth exterior of corrugated boxes is ideal for printing, supporting vivid graphics and detailed branding. Companies use custom-printed corrugated boxes to enhance brand recognition and communicate product information directly on the packaging. Examples include e-commerce brands using full-color designs and messaging to boost customer engagement.

6.Moisture Resistance Capabilities:

Corrugated boxes offer excellent moisture resistance, enhancing the protection of contents during transportation and storage. Their water-resistant properties prevent damage from humidity and spills, making them ideal for industries such as food and beverage, electronics, and pharmaceuticals. This versatility ensures safe delivery of products while maintaining structural integrity.

While inherently less moisture-resistant than plastic, corrugated boxes can be coated or treated for specialized use in humid or wet environments. The air-filled flutes also help insulate contents, and specific box designs prevent bacteria and moisture intrusion—important for food and pharmaceutical logistics.In summary, corrugated packaging remains an indispensable solution for industries ranging from e-commerce to food and beverage. Its superior protection, recyclability, and adaptability ensure safe and compliant transportation of goods. If you’re looking for high-quality, customizable corrugated boxes, visit CNN Box to explore our wide range of custom corrugated box products designed to meet your specific needs. Discover how we can help elevate your custom packaging solutions!
