What Is an RFID Label? (Core Definition & Components)
RFID is Radio Frequency Identification. An RFID label is a radio transponders. It works as a specialized smart tags. Industry pros call this a “transponder.” The name comes from mixing “transmitter” and “responder.” It sends a signal back when it hears one. The label uses radio waves to identify and track objects without wires. A barcode is just a printed image. An RFID label is different. It hides a smart device inside a sticker or hangtag.
Core Components of an RFID Label
Every RFID label contains three critical parts working together:
The Microchip (Integrated Circuit)
This tiny brain stores and processes your data. It uses non-volatile memory. Your information stays safe even without power. The chip holds several memory types:
- EPC memory – Stores the Electronic Product Code (96 to 128 bits in most cases)
- TID (Tag Identifier) – A factory-programmed serial number that never changes
- User memory – Extra space for custom data like asset details or production dates
Chips come in three configurations. Read-only chips arrive with factory-programmed serials you can’t modify. Read/write chips let you update information multiple times. Write-once/read-multiple chips allow one-time programming, then lock the data for good.

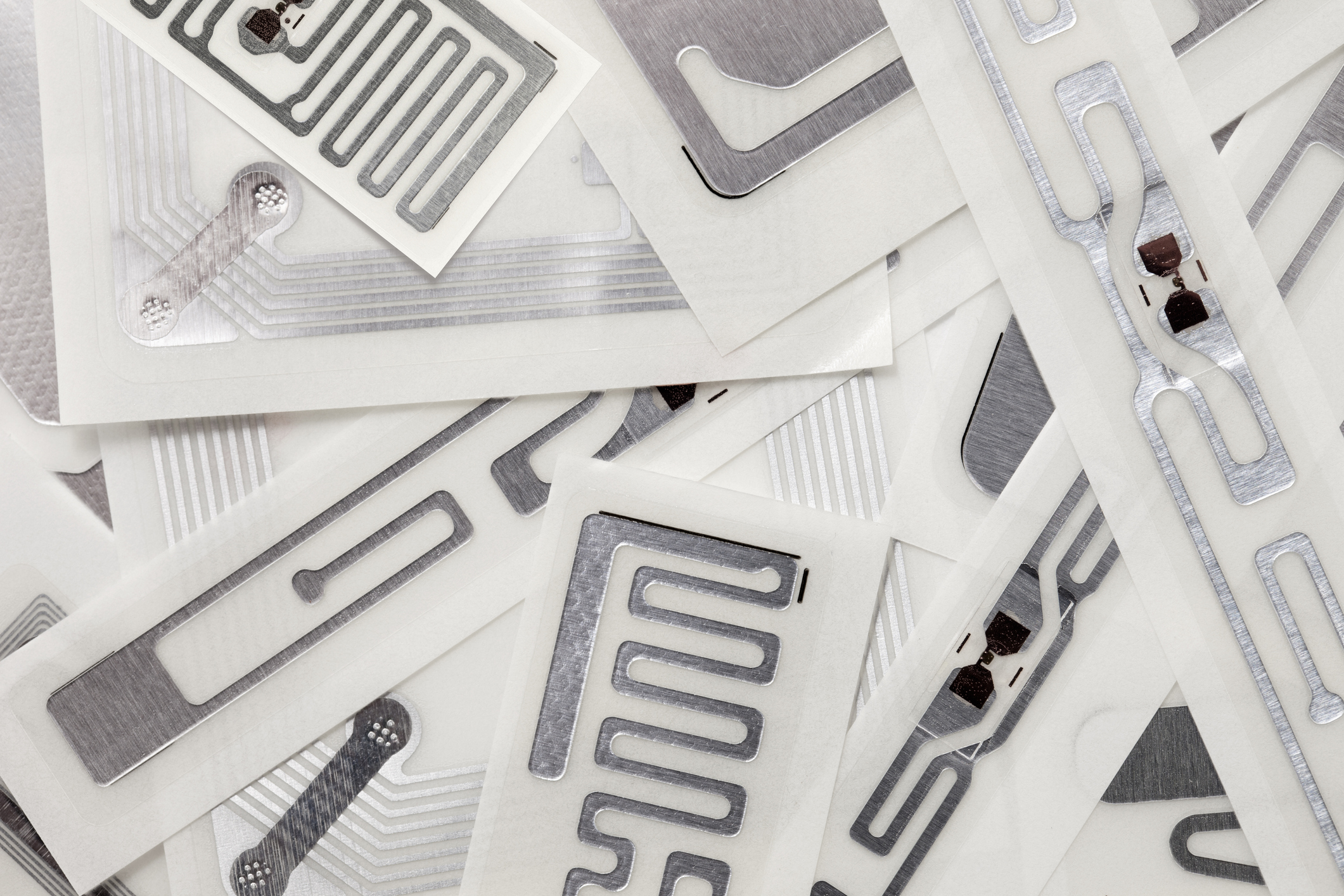

The Antenna
This component catches and transmits radio signals between the tag and reader. Manufacturers build antennas from conductive materials. Copper, aluminum, and silver are common choices. Some use conductive ink for budget applications.
Antenna design impacts performance. More coils in the antenna structure mean longer read ranges. The connection method varies by frequency. HF tags use straps. UHF tags employ loop connections.

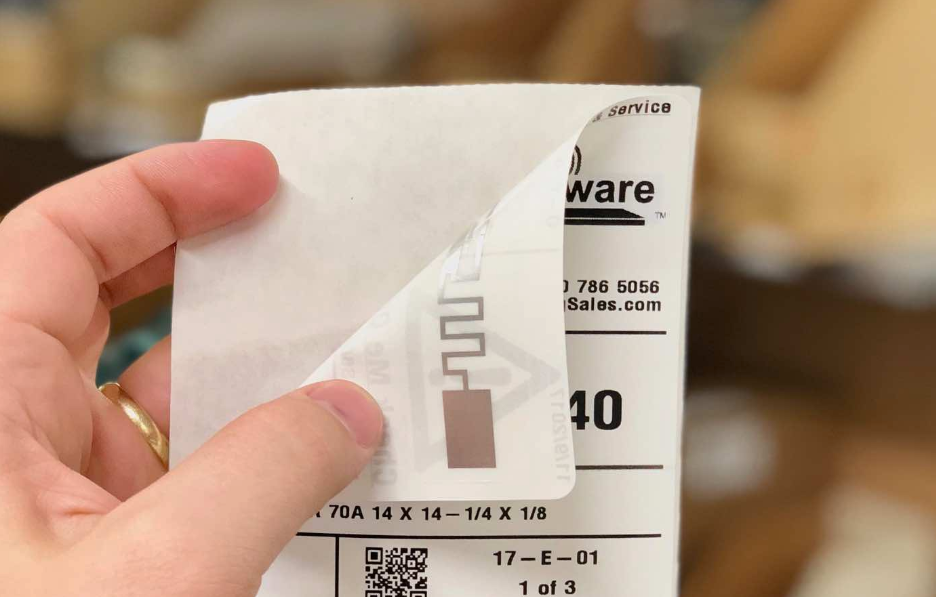

The Substrate
This flexible base holds everything together. Think of it as the foundation. Common substrate materials include:
- PET (Polyethylene Terephthalate) – Durable and flexible for industrial use
- PVC – Resistant to harsh environments
- Paper – Cost-effective for single-use applications
- Fabric or silicon – Specialized applications like laundry tracking
Some manufacturers add a fourth layer—the cover or carrier. This protective shell encloses the chip and antenna (called the inlay). It comes in over 100 material combinations to match specific environmental conditions.

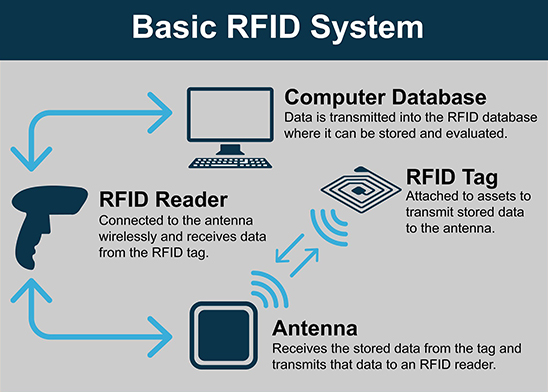

How RFID Labels Work
Picture an RFID system as a fast chat between a scanner and a label. It’s not like a normal chat where two people talk, though. It’s more like a lighthouse signaling a ship. The reader acts as the power source and listener. The tag reflects energy back to tell its story.
Here is what happens in that split second a tag gets scanned:
Chip Activation and Power Harvesting
Passive RFID labels sit quiet until you need them. They lack batteries. Instead, they use energy floating in the air from the reader.
A tag enters the reader’s zone. Its antenna acts like a net to catch radio waves. Then, it channels this energy into the microchip. LF and HF tags work like wireless phone charging (magnetic induction). UHF tags capture a broadcast signal instead (wave coupling). The chip needs just a tiny spark of power—microwatts. Then it wakes up and creates a “voice” to speak.
Signal Transmission via Backscatter Modulation
This part is clever. The tag has no battery, so it can’t shout back with a strong radio signal. So, it cheats.
It uses a method called backscatter. Imagine yourself in the dark with a mirror. Someone shines a flashlight at you. You can’t make light, but you can tilt the mirror to flash it back. Flash in a specific pattern (like Morse code) and you create a message.
The RFID chip does this with radio waves. It switches its antenna between “reflective” and “non-reflective” modes fast. This changes the waves bouncing back to the reader. It puts the tag’s unique ID right into that reflection.
Signal Decoding and Processing
The reader does the heavy lifting here. It spots these tiny reflections inside its own powerful broadcast. Compare it to finding a whisper at a rock concert.
Smart coding helps the reader filter the noise. It decodes the pattern from the “mirror flashes” and turns it into digital data (1s and 0s). Then, it sends this clean data to your software. You see the result: “Hey, that’s a Large Blue T-Shirt, Item #12345.”
Types of RFID Labels: Choosing the Right Tool for the Job
Not all RFID labels do the same work. You wouldn’t use a race car to plow a field. You also wouldn’t put a high-powered active tag on a 50-cent bottle of water. Picking the right label comes down to two things: how they get power and what frequency “language” they speak.

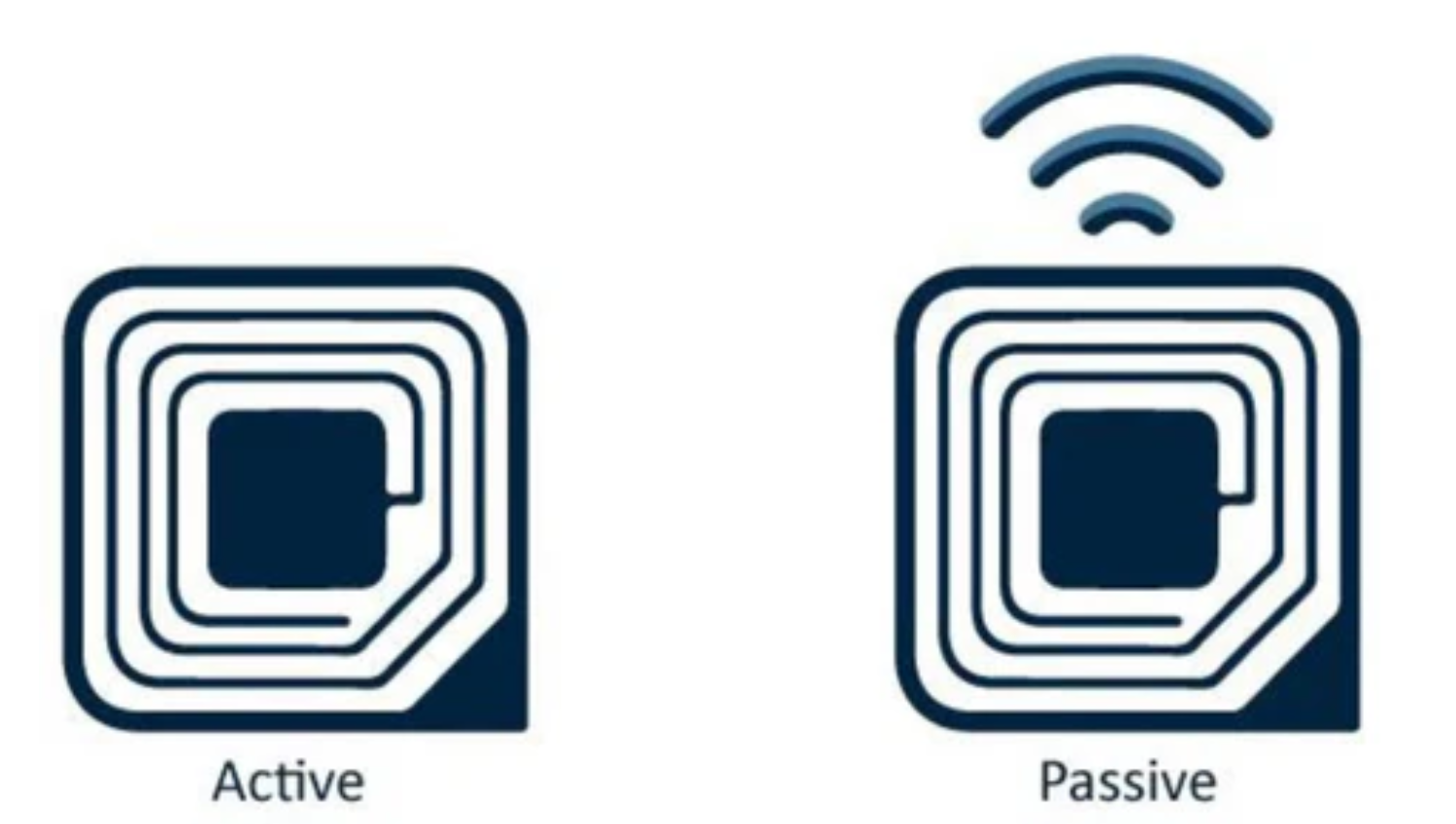

Classification by Power Source
Cost and size differ based on one main question: Does the tag have a battery?
Passive RFID Labels
You will see these tags most often. They have no internal battery. They sit and wait for radio waves to wake them up. Since they lack a battery to replace, they last forever. They are also cheap—sometimes just pennies per label. This makes them perfect for retail clothing, shipping boxes, or library books.
Active RFID Labels
Picture these as mini radio stations. High-value assets need these. They pack an internal battery that sends a signal. This gives them power. You can send data over 300 feet (100+ meters) without waiting for a request. The downside? They are bulky and cost more ($20+). Plus, the battery will die one day. Use these for items where loss costs a fortune. Think shipping containers in a busy yard or construction equipment.
Semi-Passive labels sit in the middle. They have a battery, but it just powers onboard sensors or boosts the chip. You still need a reader to get the data.
RFID Frequency Characteristics
Don’t just memorize numbers. Think of frequency bands by their skills. Each handles the physical world differently.
Low Frequency (LF) (125 – 134 kHz)
LF tags offer slow speeds and short range (just a few inches). Why use them? Durability. Water and metal block most RFID signals, but not LF. This makes LF the standard for animal tracking. A chip under a pet’s skin works great, even though skin contains water. Beer kegs and car keys use this tech too.
High Frequency (HF) & NFC (13.56 MHz)
Call this the “polite” frequency. It whispers rather than shouts. You must be close (within 3 feet) to read it. This limit acts as a security feature. Contactless credit cards and passports use HF/NFC for this reason. You don’t want strangers scanning your wallet from across the room. Libraries and museums also use this distinct scanning method.
Ultra-High Frequency (UHF) (860 – 960 MHz)
Need to scan a thousand items in seconds? UHF is the answer. You get long range (up to 30-40 feet) and high speeds. Manufacturers make these for less money than LF or HF tags. So, the retail and logistics world prefers them. Walmart and Amazon track inventory with UHF almost 100% of the time. The downside? Liquids and metals cause trouble. You need special spacing tags to fix that.
Microwave (2.45 GHz & 5.8 GHz)
This frequency moves fast. You get long read ranges and high transfer rates. You probably use it often. It powers electronic toll collection (like E-ZPass). Drive through a toll booth at highway speeds, and the reader captures your tag instantly.

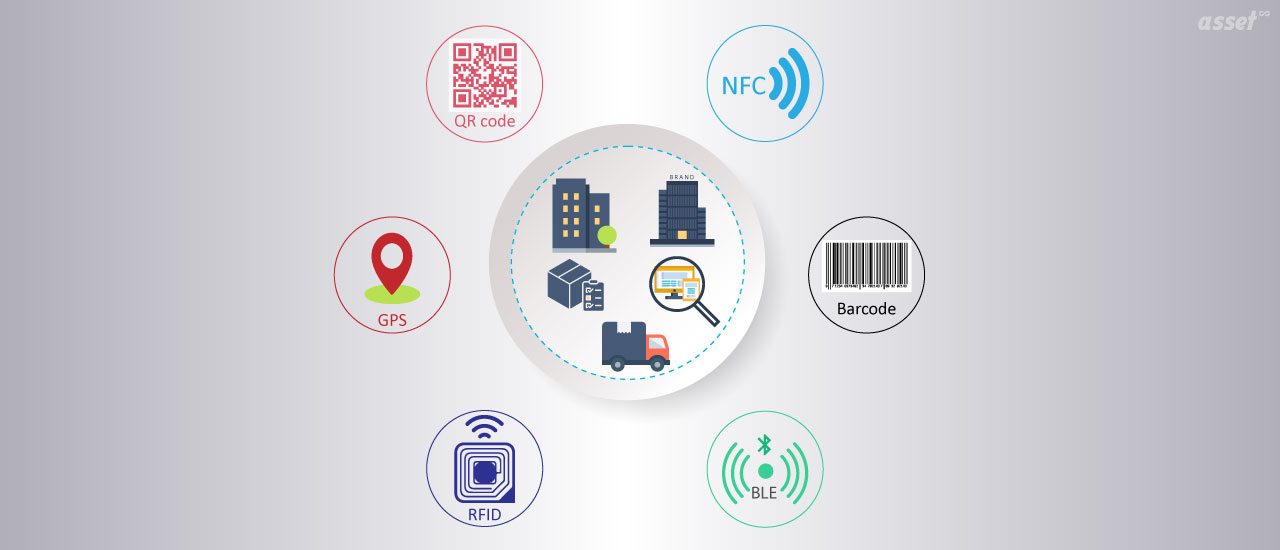

RFID vs. Barcodes vs. NFC: Comparative Analysis
People often argue about which technology works “best.” That’s the wrong approach. No single winner takes all here. Pick the right tool for your specific problem. You wouldn’t cut a steak with a chainsaw.
Let’s look at how these three contenders stack up in the real world.
Line-of-Sight Requirements and Read Range
Barcodes rely on optical tech. They use lasers or cameras. You need good light and a clear view to scan one. Box upside down? It fails. Label dirty? It fails. You scan them one by one.
RFID works differently. It uses radio waves, so blind spots don’t matter. You can read a tag inside a box, under clothes, or behind plastic. UHF RFID even allows bulk reading. Pull the trigger. You grab 200 items in a second. Try that with a barcode scanner.
NFC acts as the specialist. It functions like RFID but at short range. It needs a deliberate “tap,” often within 4cm. Don’t use it for inventory counting. Use it for secure actions. Pay for coffee. Pair headphones.
Data Storage and Programmability
Treat a barcode like a newspaper. Once printed, the news stays the same. It holds a static number, like a license plate. Want new data? Print a new sticker.
RFID tags give you tablet-like flexibility. Most chips allow writing and reading. A warehouse system updates the tag as it moves through the supply chain. Mark an item as “Sold,” “Shipped,” or “Returned.” You do this right on the chip, no label change needed.
NFC sits in between. It holds less data than big RFID chips. Instead, it handles “rich” actions. Open a URL. Trigger an app. Share a digital business card.
Environmental Durability
We’ve all seen torn barcodes at the store that refuse to scan. Optical tech has that weakness. Barcodes require a clean surface.
RFID offers real toughness. Layers of plastic or paper often seal the chip and antenna. They work even if the label gets dirty, scratched, or wet. You can even buy “hard tags.” These survive extreme heat or chemical baths.
Cost Analysis and Utility
Arguments often start here.
- Barcodes cost the least. You just pay for paper and ink.
- RFID labels cost more. Expect 5 to 15 cents each depending on volume. Readers cost money too.
- NFC tags cost the most. Their complexity pushes the price to 50 cents or a dollar each.
Here is the twist: Total Cost of Ownership (TCO). Paying a worker $20 an hour to scan barcodes involves cost. If counting takes 8 hours, that adds up. RFID might finish the job in 30 minutes. The tech pays for itself fast. Retailers often see an ROI (Return on Investment) in 18 months due to labor savings and better accuracy.
Real-World Applications of RFID Labels (Industry Use Cases)
RFID is more than just tech. It is the invisible force moving modern commerce. Analysts predict manufacturers will ship over 55 billion passive RFID tags in 2025. That marks a 10% jump. Businesses stopped guessing inventory levels. Now, they know them.
Retail & Inventory Management
Look at retail to see RFID explode. Apparel leads the way. The fashion industry needs 31-32 billion UHF RFID tags in 2025. Sizes, colors, and styles create a logistical nightmare. Simple barcodes fail to handle the load.
The “Walmart Effect” changed the game. The giant mandated RFID labels on electronics and home goods. This forced the supply chain to evolve. Target followed. This shift pushed market valuation up. Projections hit USD 29.04 billion by 2033.
What is the impact? You complete a store inventory count in 20 minutes instead of a weekend. Retailers see accuracy leap from 65% to 99%. Fewer “out of stock” signs mean happier customers and better sales.

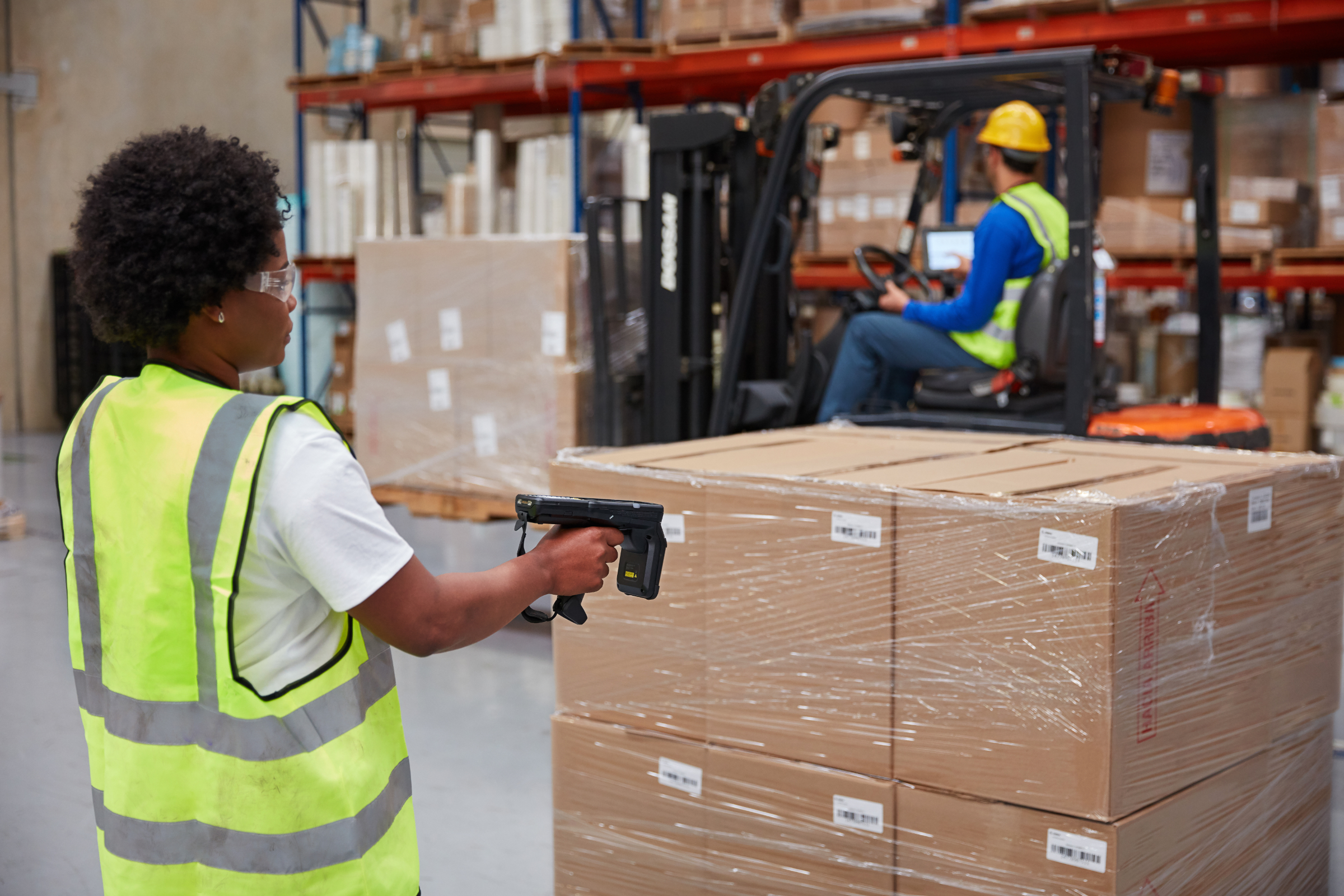

Supply Chain & Logistics
Retail takes the volume crown. But logistics wins “most critical.” This sector uses about 15% of global tags. The value is huge. The stakes are high.
Giants like DHL and UPS turn “blind spots” into data. The Americas deploy 60% of logistics RFID. Managers watch packages move from shelf to truck in real-time. You don’t scan individual boxes. Load the truck and go.
Cold chain logistics adds intelligence. We couple RFID with temperature sensors to track vaccines or fresh food. A freezer truck might fail at 2 AM. The system sends an instant alert. You prevent spoilage before it happens.
Manufacturing & Asset Management
Factories create a “digital twin” of their production floor. UHF tags track tools, molds, and raw materials on their own.
Workers stop walking around with clipboards hunting for pallets. A forklift driver knows the location. Right down to the aisle and shelf number. Data centers need this too. IT teams inventory thousands of servers and cables in minutes. Hardware stays accounted for during upgrades.
Healthcare & Pharmaceutical Applications
Technology becomes a safety matter here. RFID labels on medication verify authenticity, not just stock. The right patient gets the right dose.
Hospitals use autoclave-resistant tags to track surgical tools. It sounds simple. But you know which tools got sterilized, when, and for which surgery. This drops infection risks. We remove human error from a critical process.

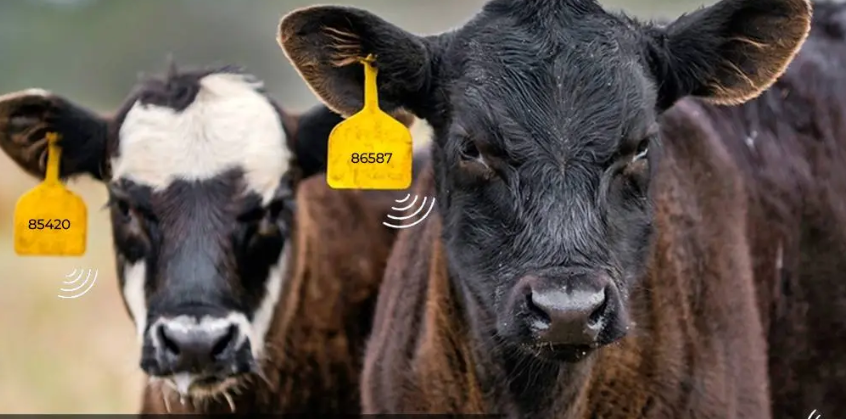

Animal Tracking and Identification
Meet the original “killer app” for Low Frequency (LF) RFID. Farmers and pet owners will use 930 million tags in 2025.
Radio waves struggle with water. Animals are made of water. LF works best here. It transmits well even when implanted under skin. You get a permanent, battery-free ID that lasts a lifetime. This helps track food safety and find lost pets.
Frequently Asked Questions (FAQ)
Still have questions about switching to RFID? Here are the straight answers to the most common things our clients ask before starting a project.
Can I scan RFID tags with my smartphone?
It depends on the tag. If you are using NFC tags (like for marketing or payments), then yes—almost every modern smartphone can read them instantly. However, for inventory management (UHF tags), a standard phone won’t work on its own. You would need a specialized “sled” or handheld reader that connects to your phone via Bluetooth to pick up those signals.
Will RFID work on metal surfaces or liquid containers?
Standard RFID labels struggle here because metal reflects radio waves and water absorbs them. However, this is a solved problem. We offer specialized “on-metal” tags and flag tags specifically designed to overcome these physical laws. If your inventory includes machinery, canned goods, or beverages, let us know—we have specific labels that work perfectly in these tough environments.
Is RFID really expensive compared to barcodes?
If you look only at the sticker price, yes—an RFID tag costs pennies while a barcode is practically free. But that’s the wrong math. The real savings come from labor and accuracy. Spending 10 cents on a tag is a bargain if it saves your staff 10 hours of manual counting every week. Most of our clients see the system pay for itself (ROI) in less than 18 months.
Can someone steal my data from a distance (Skimming)?nfc
This is a common myth. While UHF tags have a long range, they typically only store an ID number (like a serial code), not sensitive personal info or credit card numbers. Furthermore, the “read range” requires a powerful industrial reader, not something a hacker can easily hide in a pocket. For sensitive applications, we can use encrypted chips to lock your data down completely.
Can I print my own RFID labels?
Absolutely. You don’t need to buy pre-coded tags if you don’t want to. Many modern industrial printers (from brands like Zebra or Sato) can encode the chip and print the visual label at the same time. We can supply you with the blank RFID roll stock and help you choose the right printer for your daily volume.
Conclusion: Ready to Upgrade Your Operations?
RFID labels have grown from a niche tool into the backbone of modern business efficiency. Whether you are tracking thousands of products in a busy warehouse, securing high-value assets, or streamlining a checkout line, the right RFID solution transforms chaos into data.
But here is the truth: not all tags are created equal. The difference between a successful project and a failed one often comes down to the quality of the label itself. A reliable tag needs to perform consistently, scan after scan, regardless of the environment.
This is where we can help. With years of mature technology and dedicated R&D under our belt, we don’t just sell labels—we provide stability. Our RFID solutions are tested rigorously to ensure they work when you need them most. We understand the nuances of radio frequency performance, from antenna design to adhesive durability.
Don’t leave your inventory accuracy to chance. Partner with us to find the perfect tag for your specific needs. Contact our team today for a consultation or request a sample kit to test our mature technology in your own facility. Let’s make your business smarter, faster, and more profitable together.
